Arducam
Raspberry Pi 12MP Camera Module V3 SONY IMX708
- SKU:
- PPEQSP54
- Shipping:
- Calculated at Checkout
Description
After a long wait of almost 7 years, the Raspberry Pi released the camera-3 series, the successor to the Camera module 2 series. This newest addition to the Raspberry Pi mainstream camera lineup replaces the wildly successful Camera Module 2, which was introduced in April 2016.

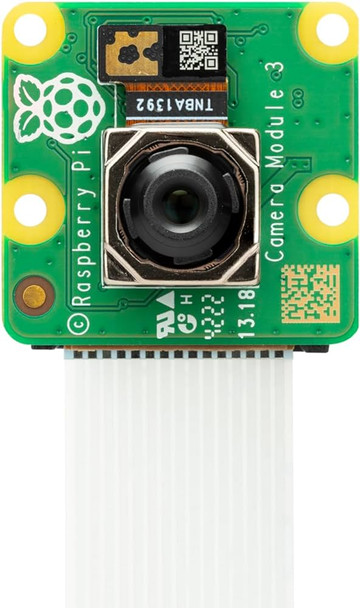

The all-new Raspberry Pi Camera Module 3 Standard/Wide is a camera for Raspberry Pi computers. Featuring autofocus and a 12-megapixel sensor supported by Raspberry Pi’s Picamera2 Python library, Camera Module 3 gives you excellent image quality with precise control.
Camera Module 3 came up with significant improvements over Camera Module 2, which is built around a 12-megapixel Sony IMX708 image sensor. Additionally, Camera Module 3 is offered with a normal (76°) or wide-angle (120°) lens, as well as in regular and infrared-sensitive (NoIR) versions.
- The standard variant is designed to take pictures in normal light.
- The NoIR variant doesn’t have an infrared filter, so you can use it together with an infrared light source to take pictures in the dark.
| CATEGORY | SPECIFICATION |
|---|---|
| Image sensor | Back-illuminated and stacked CMOS 12-megapixel sensor (Sony IMX708) |
| Signal-to-noise ratio | High SNR |
| Defect correction | Built-in 2D Dynamic Defect Pixel Correction (DPC) |
| Autofocus | Phase Detection Autofocus (PDAF) for rapid autofocus |
| Re-mosaic function | QBC Re-mosaic |
| HDR mode | Supports HDR (up to 3-megapixel output) |
| Data output | CSI-2 serial data output |
| Communication | 2-wire serial communication (supports I2C fast mode and fast-mode plus) |
| Focus control | 2-wire serial control of focus mechanism |
| Low-light performance | Improved low-light sensitivity |
| Dynamic range | High Dynamic Range (HDR) support |
| Focus actuator | I2C-controlled focus actuator |
| Sensor size | Large 7.4 mm diagonal sensor |
| Resolution | 12 Megapixel |
| Diagonal viewing angle | 76° |
| Compatibility | Compatible with all models of Raspberry Pi |
1 x Raspberry Pi Camera Module 3 (120°)
1 x 15-pin FFC
Comes With IMX708 Sensor, Highly Detailed & Realistic Imaging
Take Photos Smoothly Without Jamming, Flexible And Free
