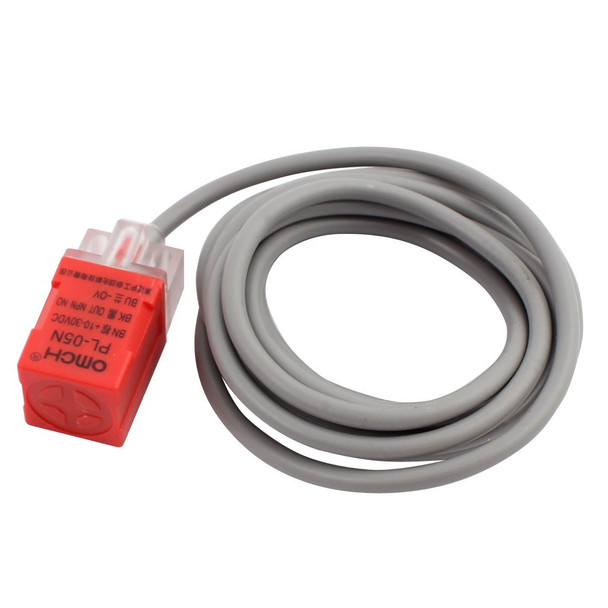

Red PS-05N NPN DC10-30V Inductive proximity Sensor
(No reviews yet)
Write a Review
- SKU:
- PEIPS28
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Type | Inductive Proximity Switch (Non-contact metal detection sensor) |
| Model | PS-05N |
| Sensor Type | Inductive proximity sensor (position switch output) |
| Operating Principle | Uses electromagnetic induction to detect nearby metallic objects and switch output |
| Detection Method | Non-contact detection of metal targets |
| Detection Distance | 5 mm ± 10% |
| Set Distance | 0 – 4 mm |
| Delay Distance | < 10% of detection distance |
| Standard Target Object | Magnetic metal (iron 18 × 18 × 1 mm) |
| Metal Sensitivity | Reduced detection range for non-magnetic metals |
| Response Frequency | DC: 0.5 kHz / AC: 25 Hz |
| Operating Voltage | DC 12–24 V (range: 6–36 V) / AC 110–220 V (range: 36–250 V, 50/60 Hz) |
| Voltage Tolerance | ±15% of rated voltage |
| Output Type | Switch output for PLC, microcontrollers, relays, counters, contactors |
| Output Current | NPN/PNP variants up to 200–400 mA (model dependent) |
| Power Consumption | < 13 mA (variant dependent) |
| Circuit Protection | Surge protection, reverse polarity protection (depending on type) |
| Withstand Voltage | AC 1000 V (50/60 Hz) |
| Insulation Resistance | > 50 MΩ |
| Operating Temperature | -25 °C to +60 °C |
| Storage Temperature | -30 °C to +65 °C |
| Operating Humidity | 35% – 95% RH |
| Housing Material | ABS plastic |
| Key Features | High reliability, industrial-grade switching, fast response, non-contact detection |
| Applications | Industrial automation, machine positioning, limit switching, counting systems, paper industry, manufacturing lines, speed detection |
Package Includes:
1 x PS-05N NPN DC10-30V Inductive proximity Sensor
1 x PS-05N NPN DC10-30V Inductive proximity Sensor
