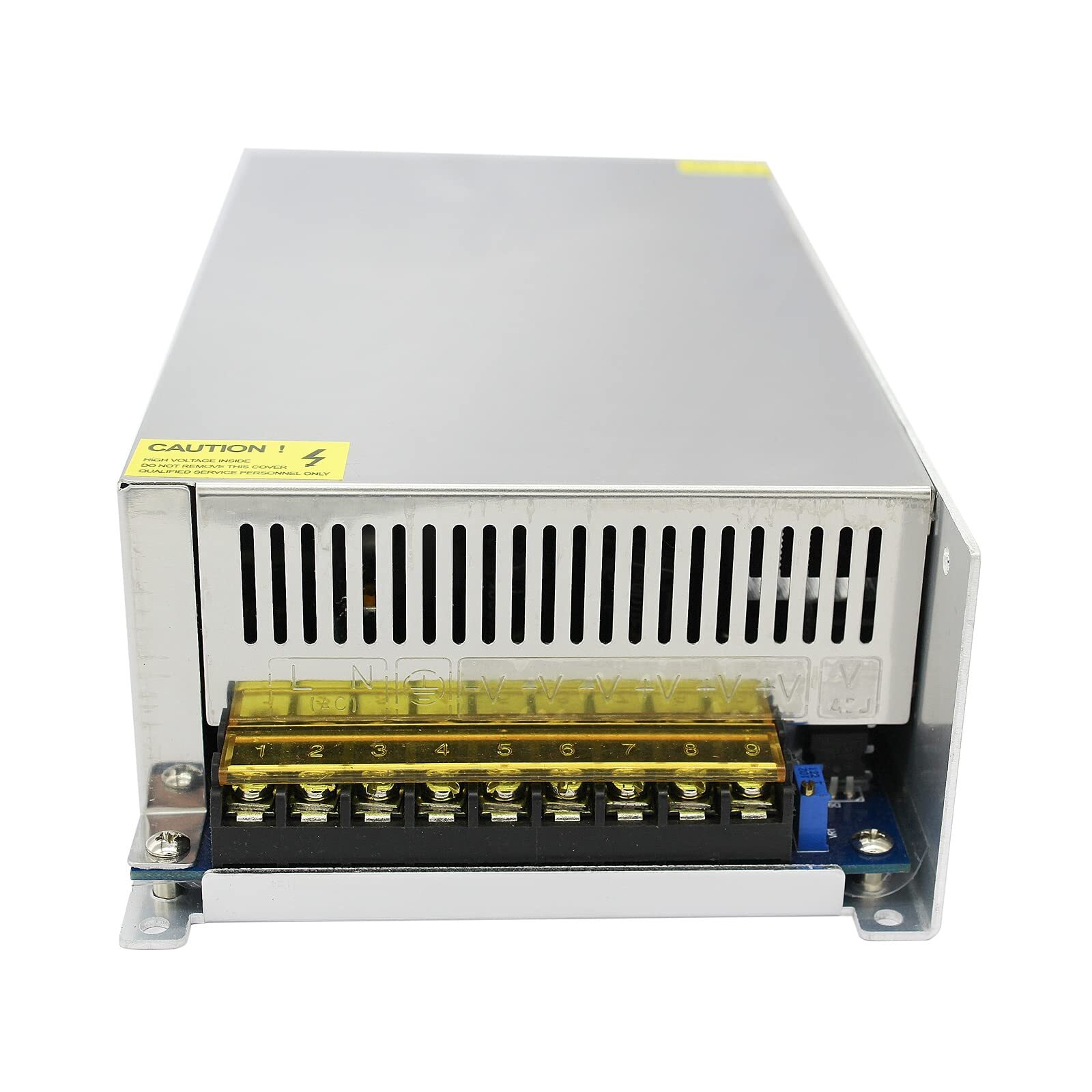

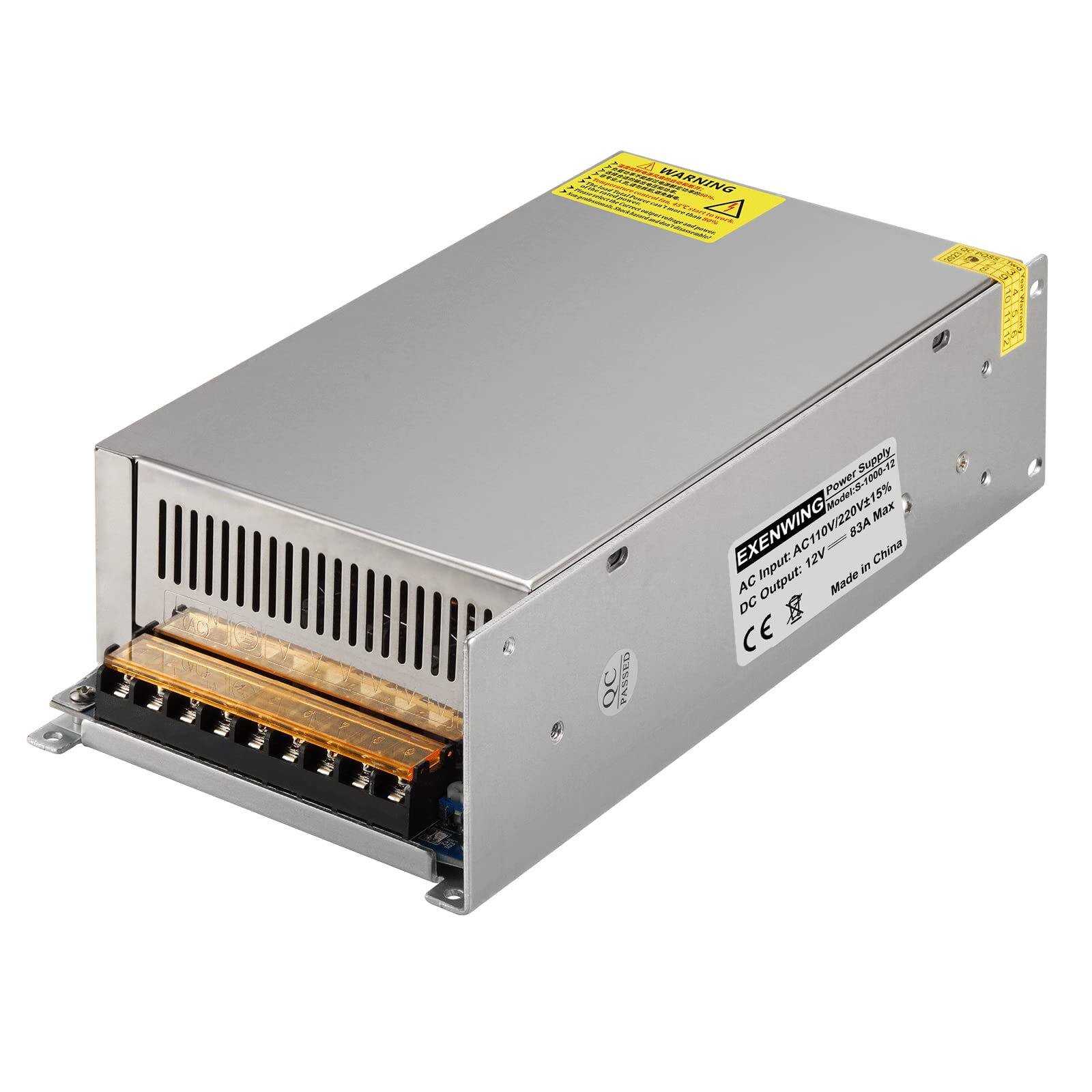

DC 12V 83Amp 1000Watt SMPS AC 110V / 220V to DC 12Volt Universal Voltage Regulated Transformer

(No reviews yet) Write a Review
SKU:
PEUYT44H
Shipping:
Calculated at Checkout
  • DC 12V 83Amp 1000Watt SMPS AC 110V / 220V to DC 12Volt Universal Voltage Regulated Transformer
  • DC 12V 83Amp 1000Watt SMPS AC 110V / 220V to DC 12Volt Universal Voltage Regulated Transformer
  • DC 12V 83Amp 1000Watt SMPS AC 110V / 220V to DC 12Volt Universal Voltage Regulated Transformer
KES8,500.00

SOLD OUT

Frequently bought together:

Description

The DC 12V 83A 1000W Switching Mode Power Supply (SMPS) is a high-performance AC-to-DC power converter designed to provide a stable and regulated 12V DC output from either 110V AC or 220V AC input. Featuring universal voltage compatibility, high conversion efficiency, and robust protection mechanisms, this power supply is ideal for industrial automation, LED lighting systems, CCTV installations, communication equipment, robotics, IoT systems, and other high-current DC applications.

Built with advanced switching technology, the unit delivers up to 83A of continuous current while maintaining excellent voltage stability and reliability under varying load conditions. Its durable metal enclosure enhances heat dissipation and provides protection in demanding operating environments.

Key Features

  • Universal AC input voltage (110V/220V selectable).
  • Stable regulated 12V DC output.
  • High power output capacity of 1000W.
  • Maximum output current of 83A.
  • High-efficiency switching power supply design.
  • Built-in overload, over-voltage, and short-circuit protection.
  • Adjustable DC output voltage trim.
  • Industrial-grade metal housing for durability.
  • Integrated cooling fan for enhanced thermal management.
  • Low ripple and noise output.
  • High reliability and long service life.
  • Easy screw-terminal connections for installation.
  • Suitable for continuous industrial operation.

Technical Specifications

Parameter Specification
Product Type Switching Mode Power Supply (SMPS)
Input Voltage AC 110V/220V Selectable
Input Voltage Range 90-132VAC / 180-264VAC
Input Frequency 47-63Hz
Output Voltage 12V DC
Output Current 83A Maximum
Rated Output Power 1000W
Voltage Adjustment Range ±10% Adjustable
Efficiency Up to 85-90%
Output Regulation ±1%
Ripple & Noise ≤150mVp-p
Cooling Method Forced Air Cooling (Built-in Fan)
Protection Overload, Over-voltage, Short Circuit
Housing Material Perforated Metal Enclosure
Operating Temperature -10°C to +50°C
Storage Temperature -20°C to +85°C
Humidity Range 20% - 90% RH (Non-condensing)
Isolation Voltage 1500VAC
Mounting Type Chassis / Panel Mount
Weight Approximately 2.0 – 3.0 kg

Applications

  • Industrial Automation Systems
  • LED Strip and LED Signage Installations
  • CCTV and Security Systems
  • Access Control Systems
  • Robotics and Automation Projects
  • IoT and Embedded Systems
  • Telecommunications Equipment
  • 3D Printers and CNC Machines
  • Battery Charging Systems
  • Automotive Testing Applications
  • DC Motors and Actuators
  • Laboratory and Testing Equipment

Protection Features

Overload Protection

Automatically limits output current and protects the power supply from excessive loads.

Over-Voltage Protection

Prevents damage to connected equipment from abnormal voltage spikes.

Short-Circuit Protection

Automatically shuts down or limits output during a short circuit condition.

Thermal Protection

Cooling fan and thermal design ensure safe operation under high loads.

Package Contents

  • 1 × DC 12V 83A 1000W Switching Power Supply
  • 1 × Installation Guide
