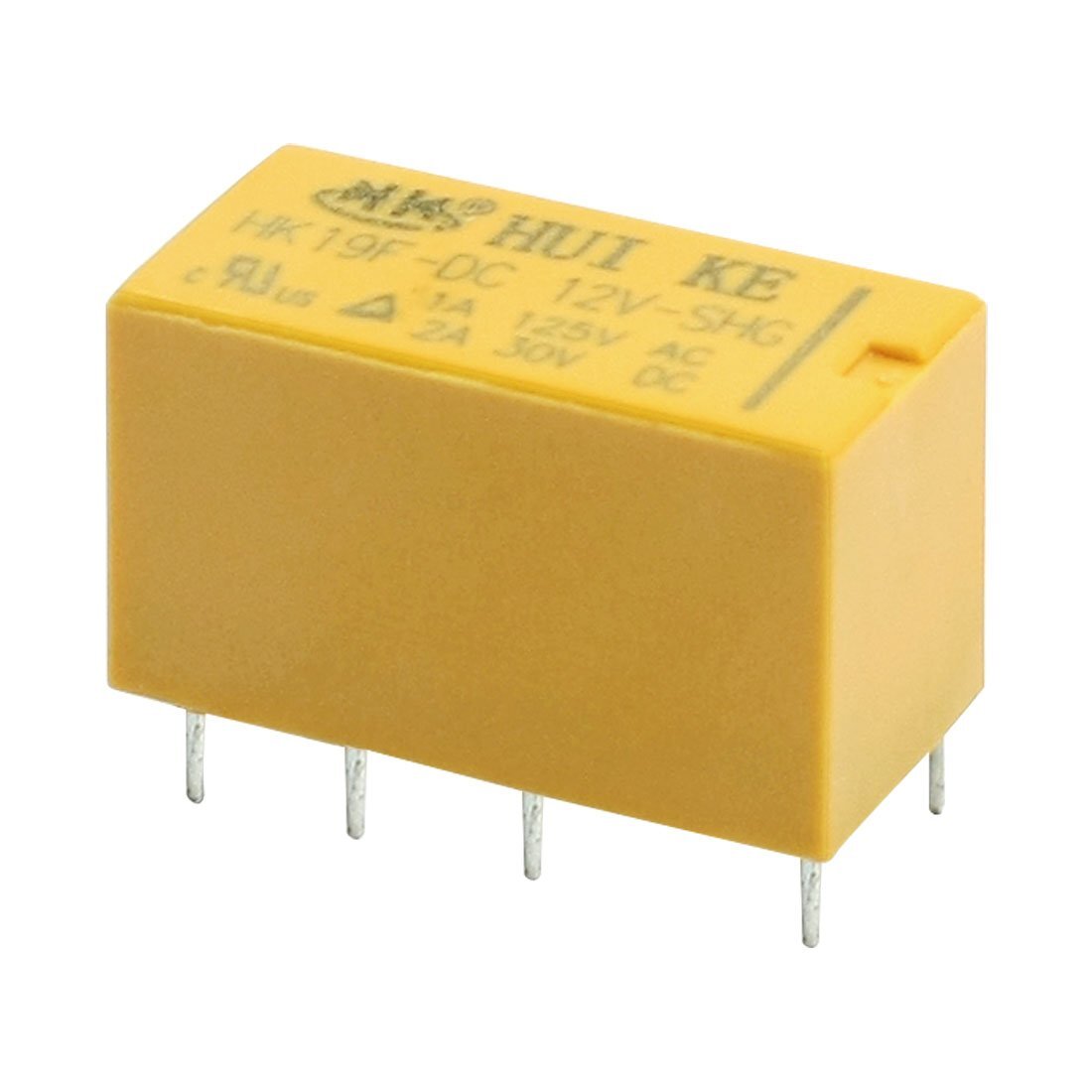

HK19F-D5V-SHG DC 12V Coil DPDT 8 Pins 2NO 2NC PCB Mini Power Relay

This relay, with a  5V coil , is capable of switching loads up to  2A and features a DPDT  contact  . The  HK19F-DC5V-SH relay has a DPDT (two-pole, two-contact) configuration and is designed for printed circuit board mounting. It has  8  pins.
A relay is an electrically controlled switch. It consists of a coil, an electromagnet, and one or more contacts. Its operation is simple: when current flows through the coil, a magnetic field is created in the electromagnet. The electromagnet is activated and mechanically switches the contacts. When a relay is activated and the contacts switch, a small click is heard inside the relay. In short, relays allow for remote switching, controlling large loads with a very low control voltage, or electrically isolating circuits to prevent damage from overvoltages.

• Model:  HK19F-DC12V-SH.
• Coil voltage: 5v .
• Coil power:  0.2w.
• Number of Pins:  8.
• Rated load:  2A/30v DC - 1A/125v AC.
• Operating temperature:  -40ºC to 80ºC.
• Mounting type:  Surface.
• Mechanical life:  10,000,000 maneuvers.

Package Includes

1pc x HK19F-DC 5V-SHG DC 5V Coil DPDT 8 Pins 2NO 2NC PCB Mini Power Relay
