Description
This product is a high cost PIC microcontroller development board, USB and external 12V DC power supply, provides ICSP download debugging interface with PIC-Circuit Debugger (PICKit2 & ICD2, etc.), or the programmer (K149 & K150, etc.) to facilitate the for program debugging, downloading. Completely independent of the IO port design, compatible with a variety of models, various DIP Series package MCU. PIC877A board development board has a wealth of resources that will catch PIC microcontroller's internal resources, you can get the full learning applications. Freedom with the MCU peripheral circuit design, the user can be used to implement various experiments. By PIC877A development board learning applications, as well as on the development board schematics and incidental learning reference routines, each routine has done a detailed notes, from the simple to the complex layers of depth. Users can easily and convenient to master PIC's internal resource utilization and system software development
Features:
| CATEGORY | SPECIFICATION |
|---|---|
| Power supply | External 12 V power supply or USB powered |
| Serial communication | Onboard MAX3232 chip for serial communication experiments |
| Output voltages | 5 V and 3.3 V available on board |
| LED experiment | 8-bit LED running light experiment support |
| Display interfaces | LCD12864 interface and LCD1602 interface |
| Temperature sensor interface | 2 × DS18B20 temperature sensor interfaces |
| Infrared receiver | Integrated IR receiver for remote control experiments |
| Programming interface | ISP download port |
| Crystal oscillator | Onboard 6 MHz crystal |
| I/O access | All CPU I/O ports and power pins (VCC, 3.3 V, GND) broken out for testing |
| Buttons | 4 independent buttons for interrupt experiments |
| Reset | Onboard manual reset circuit |
Package Includes:

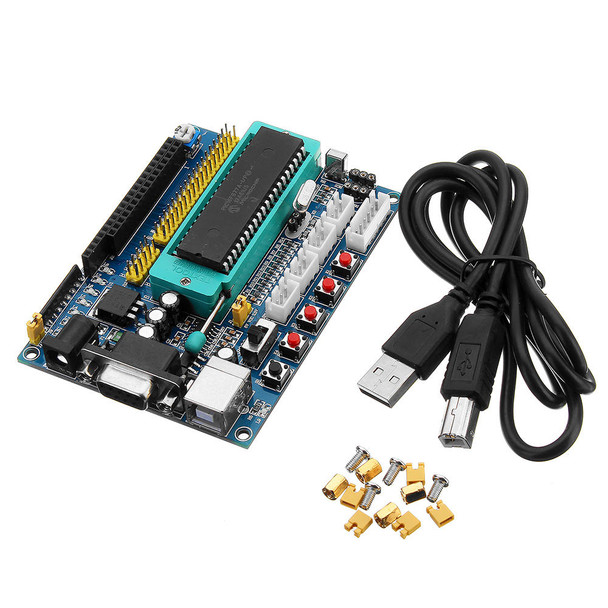

1 x Minimum System Development Board
