CNC-202 Solar & Wind Hybrid Power Generation Trainer
(No reviews yet)
Write a Review
- SKU:
- CNC-202
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Description

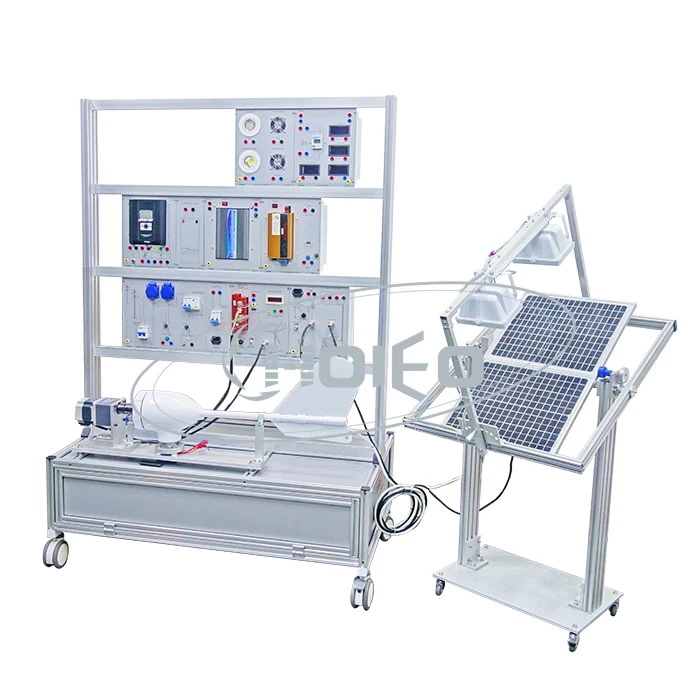

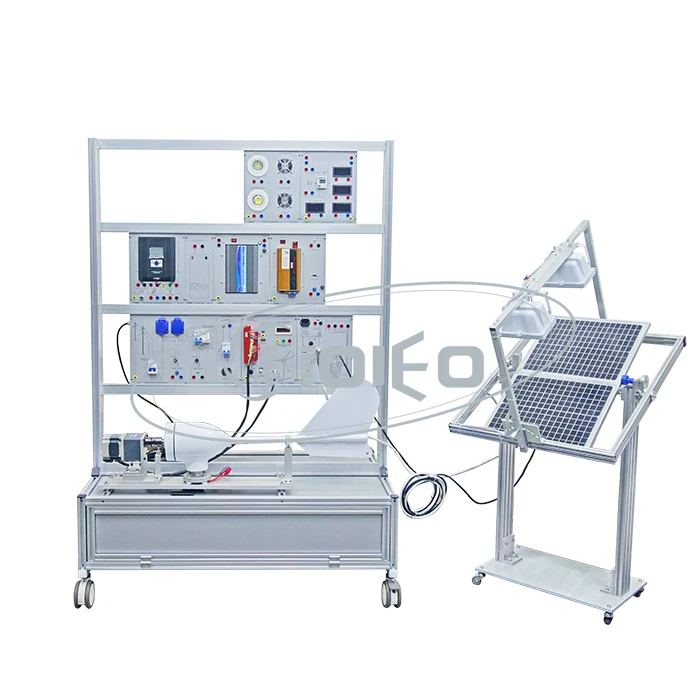

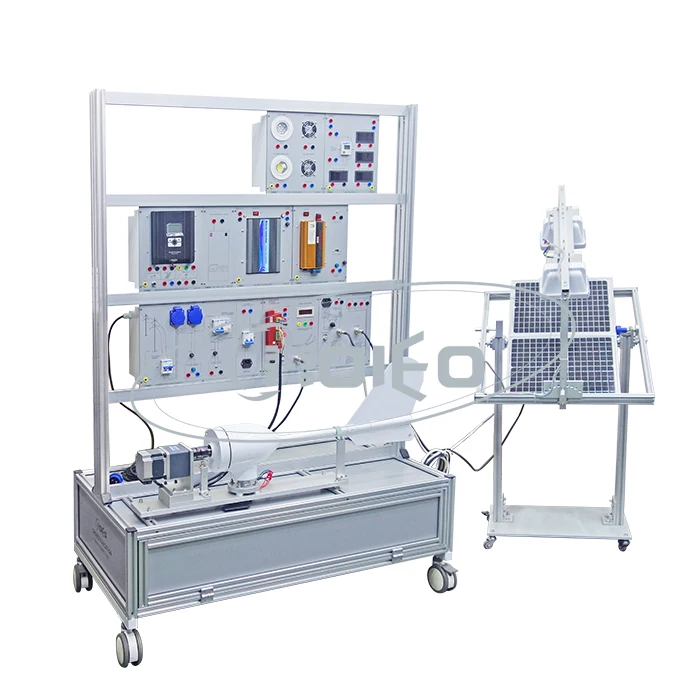

• The unit demonstrates the practical application of such a combined system for student to conduct the investigation of wind and photovoltaic generation.
• The light intensity can be controlled by rotary knob on panel, thanks to the excellent mechanical adjustment frame structure, the angle of light source can be positioned more than 120 degree from south to north, or 120 degree from east to west freely, at the same time, the position of photovoltaic panel is adjustable at any angles, so as to achieve system performance inside the laboratory irrespective of outside conditions.
• Three phase AC permanent magnet generator is used for the wind power generation, which is driven by a DC gear motor to simulate the wind turbine working under different wind speed. By this way to achieve system performance inside the laboratory irrespective of outside conditions.
• Both the solar panel and wind generator are connected to a digital combined charge controller that allows the output from both the solar panel and the wind generator to be investigated. Dedicated instrumentation includes, watt hour meter, AC/DC voltmeter and ampere meters for investigation of system efficiency and characteristics.
• On grid and off grid type inverters are provided for the different energy applications of wind and photovoltaic generation system.
TRAINING CONTENT
• Wind and solar hybrid controller experiment (wind/solar/combined)
• Wind and solar hybrid AC and DC integrated output application
• Wind and solar hybrid AC and DC integrated output application
Solar Part Training Content
• Solar panel open circuit voltage test
• Solar panel short circuit current test
• Solar panel iv characteristic test experiment
• Solar panel maximum power output characteristics experiment
• Solar panel transfer efficiency experiment
• Solar panel PV characteristics experiment
• Storage battery DC discharging experiment
• Solar panel to battery charging experiment
• Solar panel output voltage test under different light source angle and intensity
• Solar panel output voltage test under different panel angle
• Controller input and output experiment
• DC resistive and inductive load experiment
• AC resistive and inductive load experiment
• Integrated load experiment
• Controller integrated load and electricity consumption measurement
• Connect solar power generator to electrical grid
Wind Part Training Content
• Wind power generator simulated wind speed experiment
• Wind power generator output open circuit voltage experiment
• Wind power generator output circuit current experiment
• Storage battery DC discharging experiment
• Wind power generator to battery charging experiment
• Wind controller electrical energy conversion experiment
• Wind controller braking experiment
• Wind power generator V/I output characteristic curve experiment
• DC resistive and inductive load experiment
• AC resistive and inductive load experiment
• Integrated load experiment
• Controller integrated load and electricity consumption measurement
• Connect wind power generator to electrical grid
