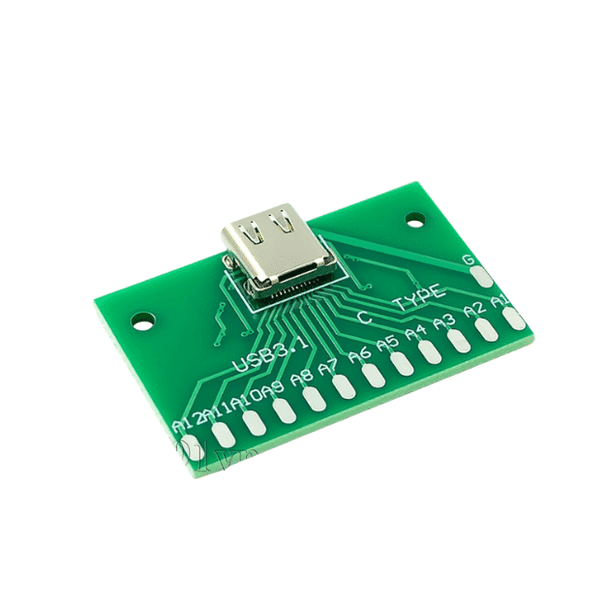

USB Type-C to DIP Adapter Board

The USB Type-C to DIP Adapter Board is a versatile and essential tool for anyone working with USB Type-C connectors in electronic projects. This adapter converts the compact and modern USB Type-C connector to a standard 2.54mm pitch pin header, making it easy to integrate into breadboards or connect to other circuit components. Ideal for prototyping, DIY electronics, and development projects, this adapter board allows you to easily access the power, data, and other pins of a USB Type-C connector.

Key Features

• USB Type-C Connector: Modern, reversible USB Type-C connector that is becoming the standard for many devices, offering high-speed data transfer and power delivery.
• 2.54mm Pitch Pins: Breaks out the USB Type-C pins to a 2.54mm pitch pin header, compatible with standard breadboards and jumper wires.
• Full Pin Access: Provides access to key USB Type-C pins including VBUS (power), GND, D+ (data+), D- (data-), and CC (configuration channel) pins.
• Compact Design: Small, lightweight, and easy to integrate into various electronic projects and prototypes.
• Durable Construction: Made from high-quality PCB material with a robust USB Type-C connector for long-lasting use.
• Easy Prototyping: Perfect for quickly prototyping USB Type-C based circuits or integrating USB Type-C devices with development boards like Arduino, Raspberry Pi, or other microcontrollers.

Specifications

• Connector Type: USB Type-C
• Pin Pitch: 2.54mm (standard breadboard and header pin spacing)
• Number of Pins: Typically 6 to 16 pins (depending on the adapter design), covering VBUS, GND, D+, D-, CC1, CC2, and other relevant pins.
• PCB Material: High-quality FR4 with solder mask and silkscreen labeling
• Dimensions: Compact design, typically around 25mm x 15mm (varies by manufacturer)
• Operating Voltage: Typically 5V for standard USB power

Applications

• Prototyping: Ideal for prototyping circuits that use USB Type-C connectors, allowing easy access to the pins.
• DIY Electronics: Suitable for DIY electronics enthusiasts working on projects involving USB Type-C devices or power supplies.
• USB-C Device Testing: Useful for testing and debugging USB Type-C devices and circuits.
• Power Delivery: Can be used to deliver power to projects from USB Type-C power sources.
• Development Boards: Compatible with Arduino, Raspberry Pi, and other development platforms for easy integration of USB Type-C functionality.

Package Includes

1pc x USB Type-C to DIP Adapter Board
