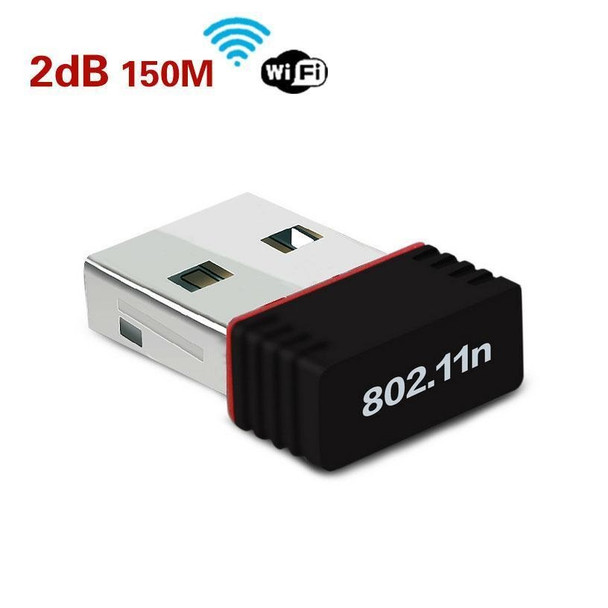

MT7601 Mini USB Wi-Fi Adapter

Product features:

• Main chip: MT7601UN
• Supported protocols and standards: IEEE 802.11g,IEEE 802.11b,IEEE 802.11n
• Interface type: USB1.1 USB2.0
• Frequency range: 2.4-2.4835GHZ
• Number of working channels: 14
• Data modulation: OFDM/CCK/ 16-qam / 64-qam
• Operating mode: centralized control (Infrastructure), pair of equations (ad-hoc)
• Transmission rate: 150Mbps (maximum) t
• Spread frequency technology: DSSS (direct sequence spread frequency)
• Sensitivity @per: 135M: -72dbm @10% PER;M: 130-72 DBM @ 10% PER;M: 108-72 DBM @ 10% PER;M: 54-72 DBM @ 10% PER;M: 11-85 DBM @ 8% PER;6 m: - 88 DBM @ 10% PER;M: 1-8% PER 90 DBM @
• RF power: 15dbm(maximum)
• Antenna: 2dBi built-in smart antenna
• Transmission distance: varies according to the environment
• Operating system support: Windows XP/VISTA/WIN7/WIN 8/MAC/LINUX
• Working voltage: DC 5V + -0.2v
• 2 LED indicator: Status
• Size: 20*15*6mm
• Using the environment: working temperature: 0 ℃ to 40 ℃
• Storage temperature: - 40 ℃ ~ 70 ℃
• Working humidity :10%~90% RH
• Storage humidity :5%~90% RH

Package Includes

1pc x MT7601 Mini USB Wi-Fi Adapter
