Name: Siglent SDS1102CNL+ LCD Digital Oscilloscope, 100 MHz
Brand: SIGLENT
SKU: PEFRS57
Price: 55000 KES
Availability: OutOfStock

Siglent SDS1102CNL+ LCD Digital Oscilloscope, 100 MHz

(No reviews yet) Write a Review

SKU:

PEFRS57

Shipping:

Calculated at Checkout

Description
0 Reviews

Description

Features:

CATEGORY	SPECIFICATIONS
Product Name	Digital Storage Oscilloscope
Series	Siglent SDS1000CNL Series
Models	SDS1072CNL / SDS1102CNL / SDS1202CNL+
Device Type	Bench Digital Storage Oscilloscope
Channels	2 Channels + External Trigger (EXT)
Bandwidth (by model)	70 MHz / 100 MHz / 200 MHz
Real-time Sample Rate	1 GSa/s (single channel), 500 MSa/s (dual channel)
Equivalent Sample Rate	50 GSa/s
Memory Depth	40 kpts (SDS1072CNL), 18 kpts/ch (other models)
Vertical Resolution	8-bit
Vertical Sensitivity	2 mV/div – 10 V/div (up to 5 V/div on 200 MHz model)
Input Impedance	1 MΩ ±2%
Maximum Input Voltage	400 V (DC + AC peak-to-peak), CAT I / CAT II
Probe Attenuation	1×, 10× (multi-factor support up to 1000×)
Rise Time	<5 ns / <3.5 ns / <1.7 ns (depending on model)
Time Base Range	5 ns/div – 50 s/div (model dependent)
Display	7-inch TFT LCD (480 × 234 resolution)
Display Features	Vector/Dot display, persistence, XY mode
Trigger Types	Edge, Pulse Width, Video, Slope, Alternate
Trigger Modes	Auto, Normal, Single
Trigger Sources	CH1, CH2, EXT, EXT/5, AC Line
Math Functions	Add, Subtract, Multiply, Divide, FFT
Digital Filtering	High-pass, Low-pass, Band-pass, Band-stop
Auto Measurements	32 waveform parameters (Vpp, Vrms, frequency, duty cycle, etc.)
Cursor Measurements	Manual, Track, Auto modes
Waveform Functions	Average, persistence, intensity, inversion
Waveform Recording	Supported
Signal Processing	FFT spectrum analysis
Storage (Internal)	2 reference waveforms, 20 setups, up to 20 waveform sets
External Storage	USB storage: waveform, bitmap, CSV, setup files

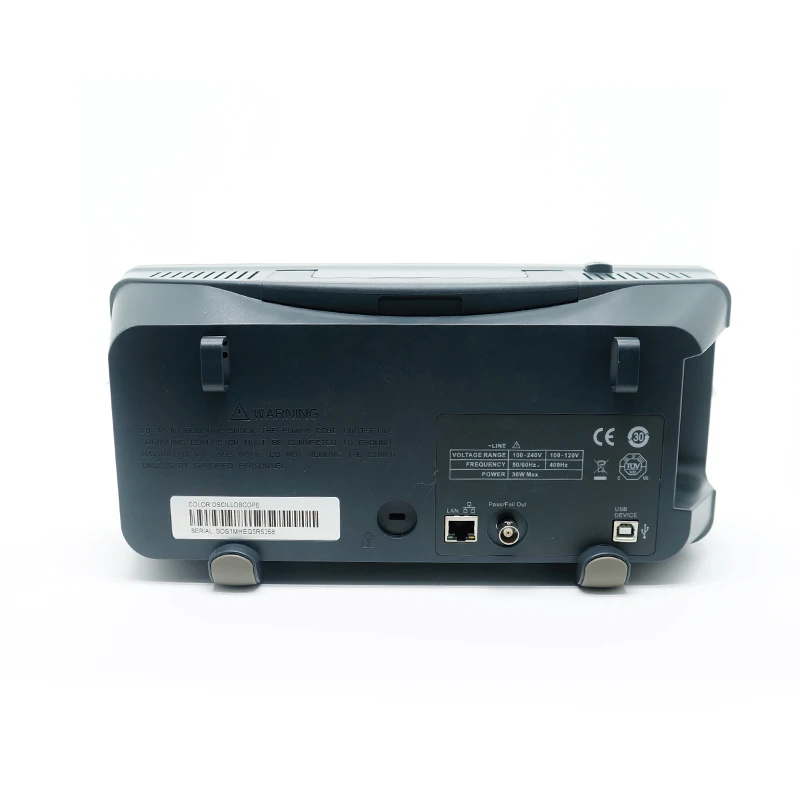

Interfaces	USB Host, USB Device, RS-232, Pass/Fail output
PC Control Software	Remote oscilloscope control + waveform/data analysis
Pass/Fail Testing	Supported
Waveform Math & Analysis	Full arithmetic + FFT
XY Mode	Supported (X-Y plotting)
Hard Frequency Counter	1 Hz resolution, ±0.01% accuracy
Sampling Modes	Normal, Peak, Average (4–128x), High Resolution
Screen Saver	1 min – 5 hours selectable
Language Support	12+ languages including English, Chinese, Arabic, Russian, etc.
Power Supply	100–240 VAC, 45–440 Hz
Power Consumption	Max 50 VA
Weight	2.5 kg
Dimensions	323.1 × 135.6 × 157 mm
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity Range	Up to 85% RH
Cooling System	Forced air cooling (fan)
Applications	Electronics design, industrial control, education, R&D, signal debugging, product testing, maintenance
