Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

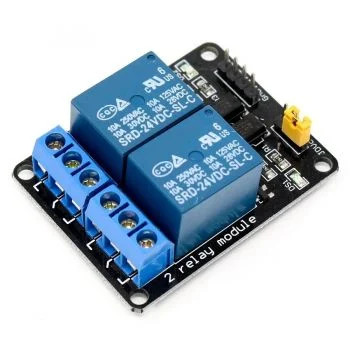

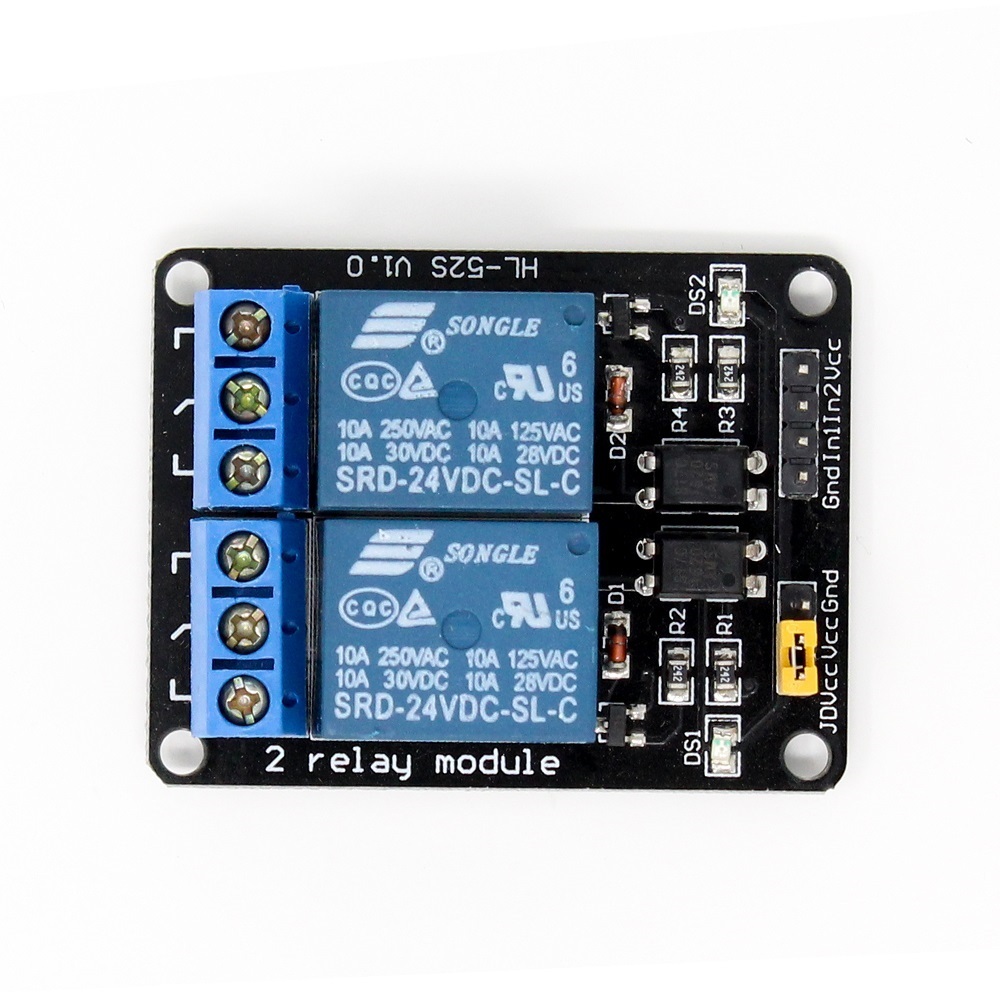

| Product Name | 24V Relay Module (JD-VCC Version) |
| Module Type | Relay Control Module with Separate Power Option |
| Working Voltage | DC 24V |
| Trigger Logic | Active-low (LOW signal activates relay) |
| Signal Input Voltage | 0 – 24V |
| Relay Type | Electromagnetic relay |
| Relay Contact Rating | AC 250V / 10A |
| Relay Outputs | NO (Normally Open), NC (Normally Closed), COM |
| Power Pins | VCC (logic power), JD-VCC (relay power) |
| Power Configuration | JD-VCC and VCC shorted by default (can be separated) |
| Isolation Capability | Supports separate relay and logic power for noise isolation |
| Control Method | Direct MCU control (Arduino, PLC, etc.) |
| Interface Type | Standard pin header + screw terminals |
| Application | Automation systems, MCU projects, high-voltage switching |
| Key Features | Flexible power design, active-low trigger, high load capacity |
| Advantages | Reduced interference (when separated), reliable switching, easy integration |
Package Includes:
1 x 2 Way Relay Module With Optocoupler Protection
