Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Product Type | Microwave / Radar Motion Sensor Switch |
| Model | HFS-DC06 |
| Operating Principle | 5.8 GHz microwave Doppler radar motion detection (ISM band) |
| Frequency | 5.8 GHz |
| Waveband | ISM band |
| Operating Voltage | DC 5 V |
| Minimum Input Current | ≥ 30 mA |
| Output Type | High-level digital signal output |
| Detection Distance | Up to 12 m (front direction) |
| Detection Angle | Wide-angle cone coverage (approaching 360° forward spread) |
| Installation Height | 2 – 6 m |
| Sensing Time / Delay | ~2 seconds |
| Module Size | 39 mm × 22 mm × 11 mm |
| Interference Immunity | High stability, strong anti-interference, minimal mutual interference between units |
| Operating Stability Requirement | Requires stable DC supply; voltage fluctuations may cause false triggering |
| Installation Constraints | Avoid large metal surfaces or fully enclosed metal housings |
| Output Wiring | VCC = + power, GND = ground, OUT = signal output |
| Key Features | Long detection range, wide sensing angle, compact size, high sensitivity, strong environmental adaptability |
| Advantages | Works through non-metallic materials, unaffected by light, dust, humidity, or temperature variations |
| Applications | Smart lighting, security systems, automatic doors, industrial automation, occupancy detection, smart buildings |
Package Includes:

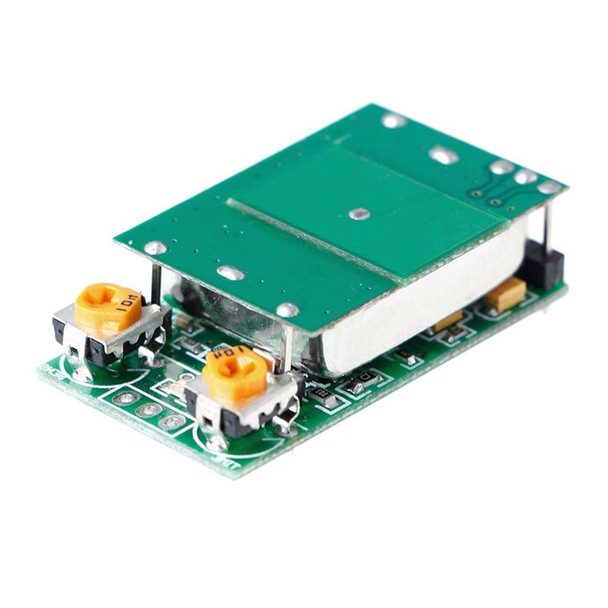

1 x 5.8GHZ GHz Microwave Radar 12m HFS-DC06
