diymore

MOSFET Electronic Switch DC Controlling Broad

(No reviews yet) Write a Review
SKU:
PELCH58
Shipping:
Calculated at Checkout
  • MOSFET Electronic Switch DC Controlling Broad
  • MOSFET Electronic Switch DC Controlling Broad
KES450.00

Sold Out

Frequently bought together:

Description

Features:
CATEGORY SPECIFICATIONS

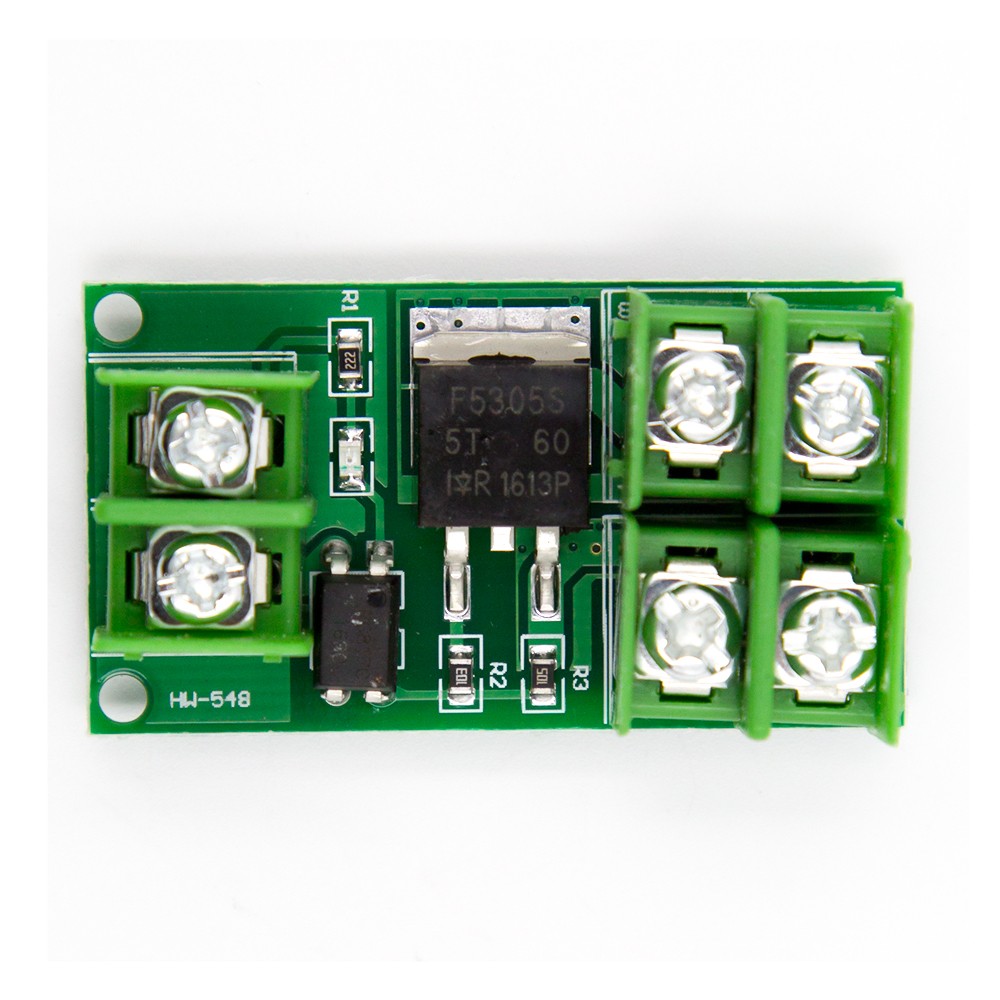

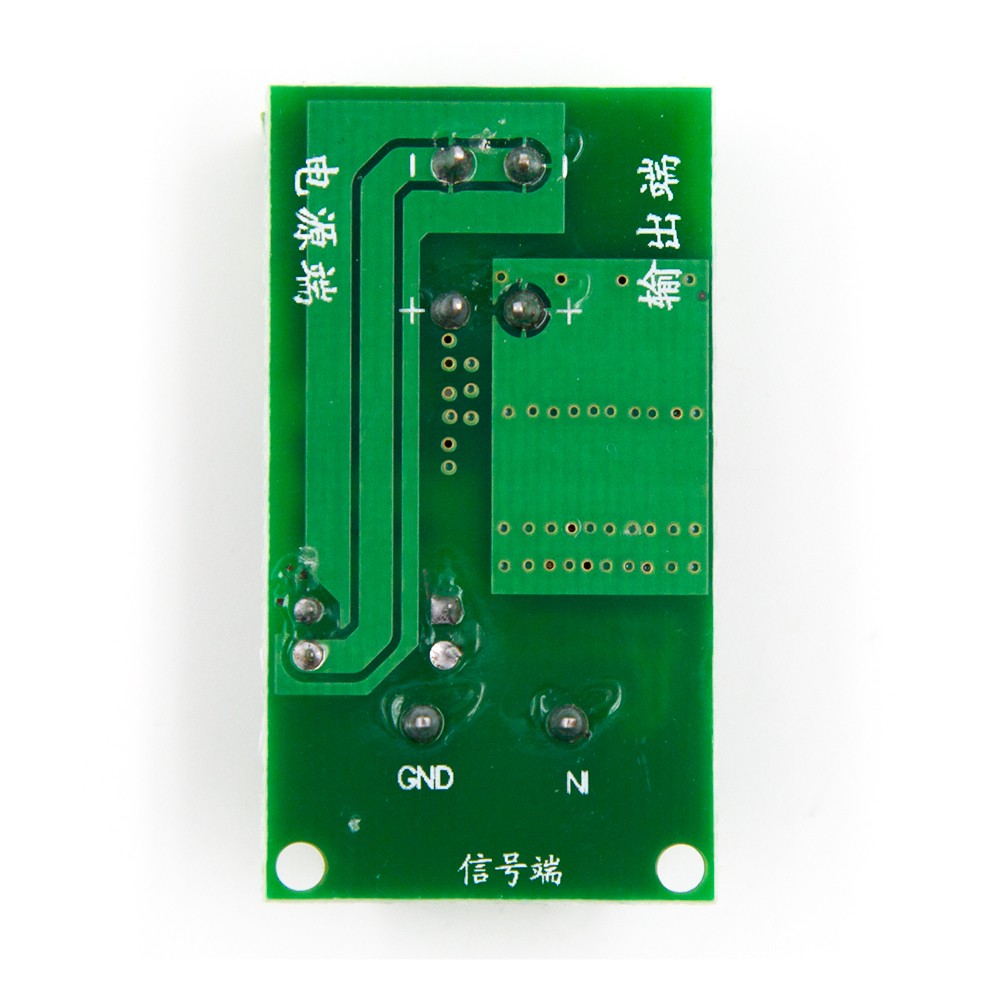

Product Name MOSFET Electronic Switch Module (Optocoupler Isolated)
Module Type PWM MOSFET Power Control Module
Working Principle MOSFET-based solid-state switching with optocoupler isolation
Input Control Voltage 3.3V – 12V
Output Load Voltage 5V – 36V DC
Control Type Digital Signal (High/Low Level) / PWM
Control Current 1 – 5 mA (varies with input voltage)
Output Load Current 0 – 22A (≥5A requires heat sink)
Isolation Optocoupler isolation (input/output electrically separated)
Control Interface 2-pin control (VCC & GND)
Terminal Type Screw terminals (input/output), 2.54mm control pins
PWM Support Yes (motor speed & brightness control)
Indicator On-board LED status indicator
Functionality High-power switching, dimming, motor speed control
Supported Loads DC motors, LED lights, bulbs, high-power loads
Cooling Requirement Heat sink required for currents above 5A
Size 40 × 30 mm
Key Feature Allows low-voltage signal to control high-power DC devices with isolation
Application Motor control, LED dimming, automation systems, power switching

Package Includes:
1 x MOS Field Effect Transistor Module
