4WD RC Smart Car Chassis S3003 Metal Servo

(1 review) Write a Review
Calculated at Checkout
  • 4WD RC Smart Car Chassis S3003 Metal Servo
  • 4WD RC Smart Car Chassis S3003 Metal Servo

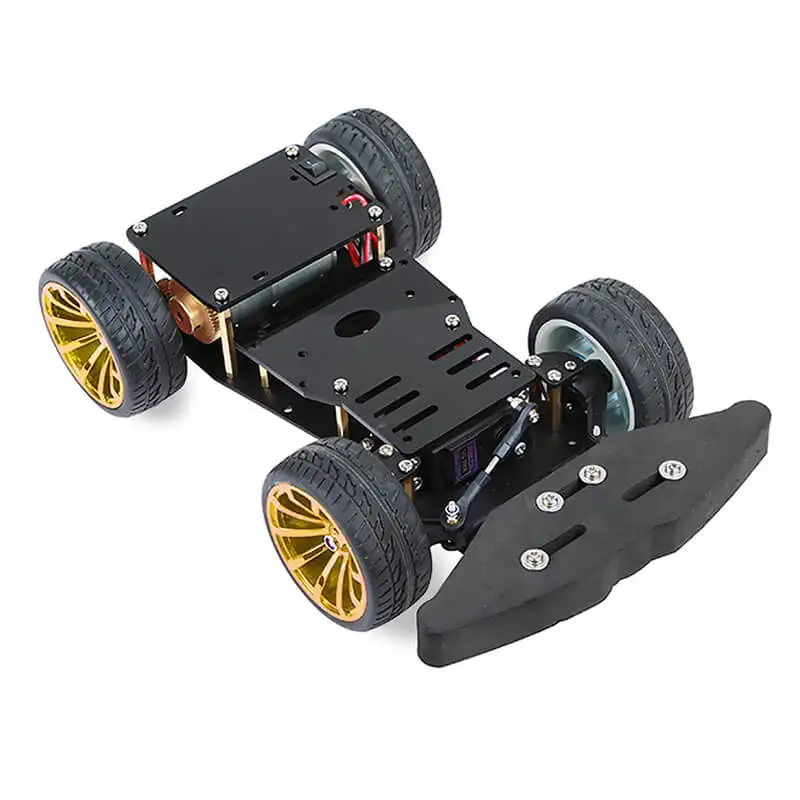

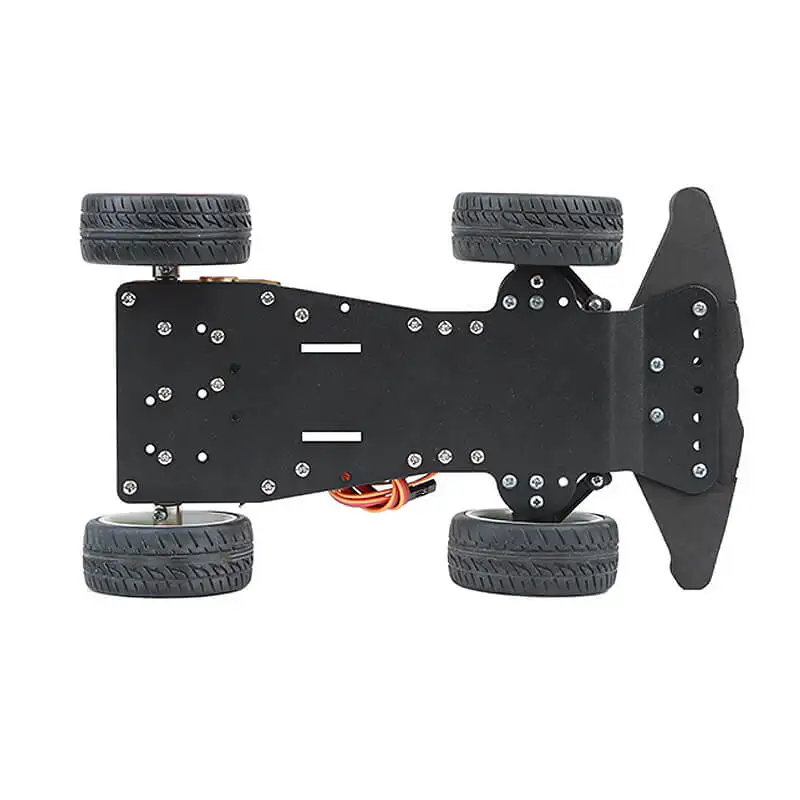

This is a newly designed 4-wheel car chassis, and ordinary 4-wheel drive is different from this car with rear-wheel drive plus front steering mechanism to achieve the car forward, backward and turn left and right.

And professional remote control racing principle, the use of two rod through the steering servo to control the direction of the car. In addition, the steering mechanism of the rear wheel has also been changed. The aluminum fixing piece is integrally formed with the motor and the motor is tightly engaged with the drive shaft. The motor adopts the all-metal gear motor. If you pursue high speed, As long as the 25mm shaft diameter motor can be. The rear wheel incorporates two flange cup bearings to ensure a more flexible motor rotation.
Because of the use of more precious metal parts (bearings, transmission gear, connecting rod, metal motor, steering cup, multi-function bracket, etc.), which is expensive, the user can compare the merits, of course, the market is also cheaper Similar to the chassis, work is not on a level of the.
We only have fixed mounting holes for arduino platform, if you are other platforms, you need to punch holes or try to install.


    All-metal motor rear-wheel drive
    Using steering gear control car steering
    Steering structure with bearings, transmission loss

    Car size: 248mm(l) x 146mm(w) x 70mm(h)
    Weight: 680g

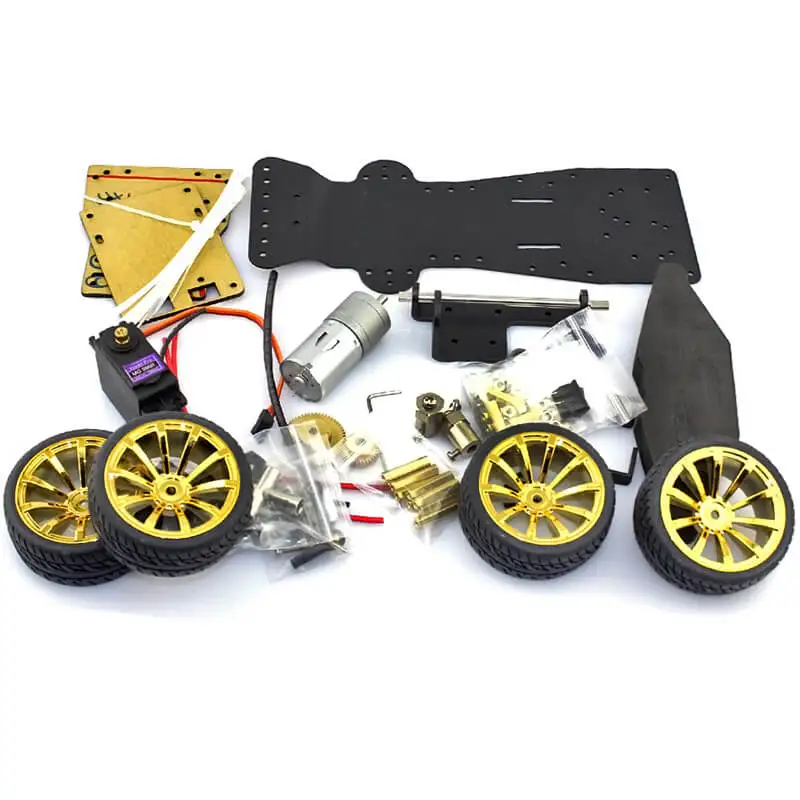

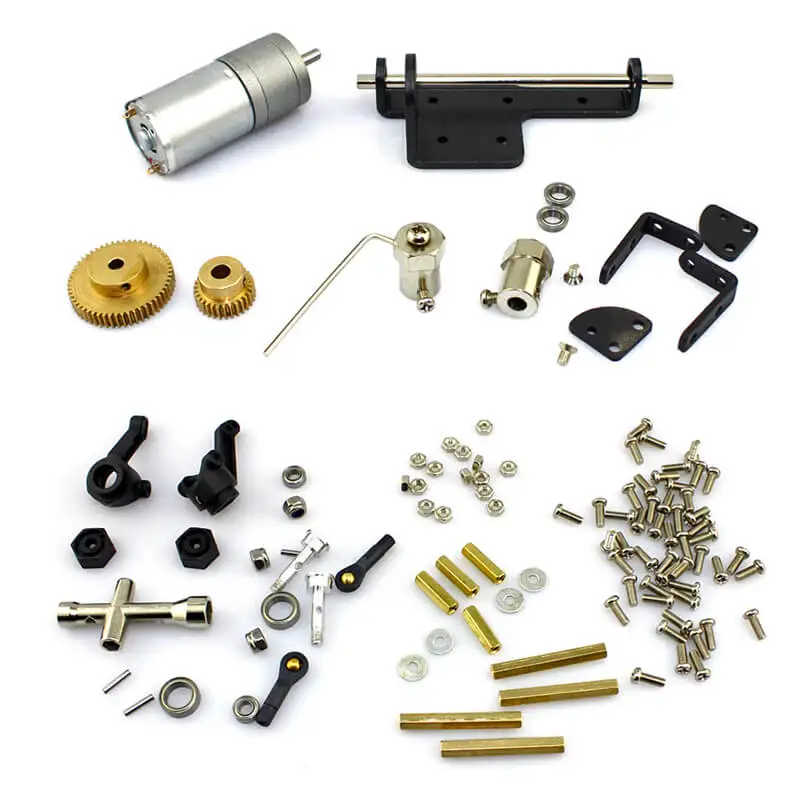

Package list
Black steering wheel x 2
Transmission link x2
Hexagon adapter x 2
M4 locknut x 2
Latches M2 * 10 x 2
Bearing(12mm) x 2
Bearing (8mm)x 2
Cross sleeve x1
S3003 servo x 1
Servo Kit x 1
M2.5 * 8 screws x8
M3 * 22 Double pass copper column x4
M3 * 5 Flat head screw x2
Flange bearing disabilities x2
17MM coupling D-5MM x2
Gear x2
Rear wheel link x1
25MM metal gear motor x1
Motor mounting bracket x1
M3 * 12 Double pass copper column x4
M3 * 18 Double pass copper column x4
M3 * 35 single-pass copper column x4
M3 * 6 nylon screw + M3 nut + nylon column x5
Switch x1
Tie x10
Motor connection cable x3

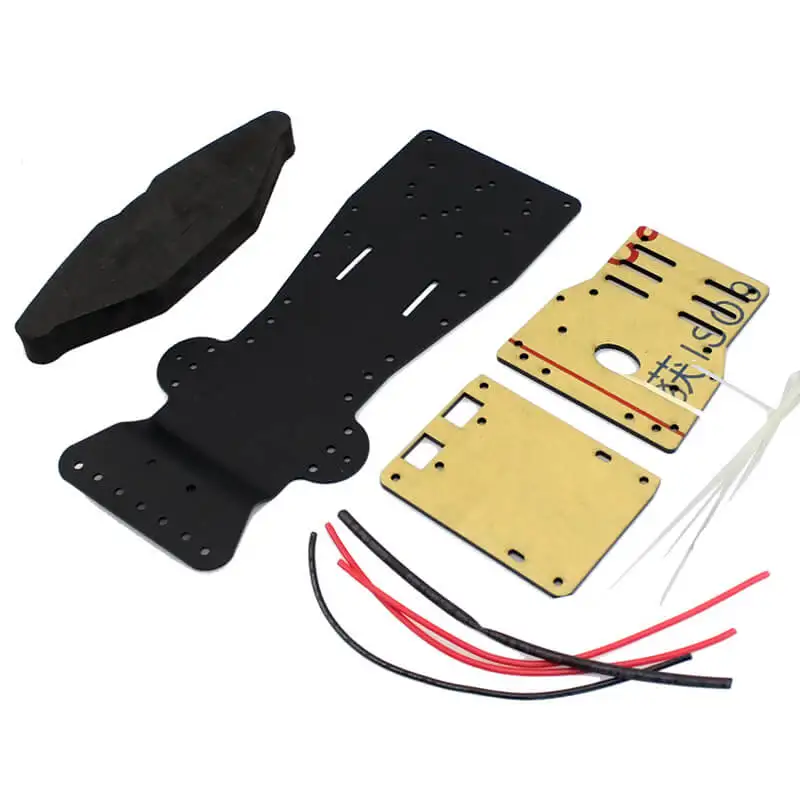

Acrylic Chassis x 1
Anti-collision cotton x1
M3 * 8 screws x30
M3 * 10 screws x16
Nut M3 x20

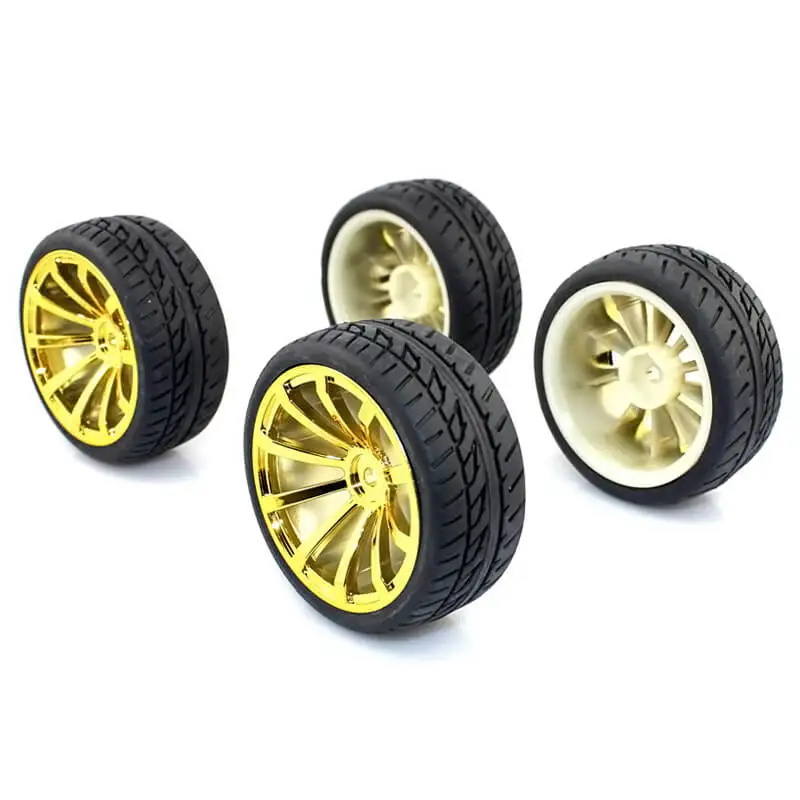

65MM wheels x4
