Description
Product Details
74HC Family, Nexperia
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Specification
| Attribute | Value |
|---|---|
| Logic Family | HC |
| Logic Function | Buffer, Converter |
| Number of Channels per Chip | 6 |
| Input Type | Single Ended |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Maximum High Level Output Current | -5.2mA |
| Maximum Low Level Output Current | 5.2mA |
| Maximum Propagation Delay Time @ Maximum CL | 85 ns@ 2 V |
| Dimensions | 10 x 4 x 1.45mm |
| Height | 1.45mm |
| Width | 4mm |
| Maximum Operating Supply Voltage | 6 V |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Supply Voltage | 2 V |
| Length | 10mm |
| Maximum Operating Temperature | +125 °C |
Technical data sheets
Package Includes

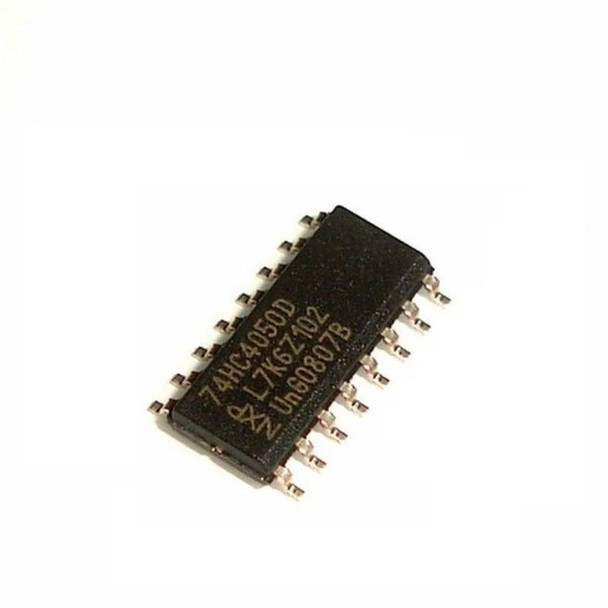

1pc x 74HC4050D Hex Buffer & Line Driver SMD IC
Image representative of range
