Description
OPTOCOUPLER
Current transmission ratio: 50% (min)
High isolation voltage: 5000V (effective value)
UL standard
The limit parameter
Forward current (ICEO) : 50mA
Peak forward current (ICE Max) : 1A
Reverse voltage: 6V
Power: 70 mw
Collector emitter voltage: 35V
Emitter collector voltage: 6V
Collector current: 50mA
Collector power: 150mW
Total power: 200mW
Working temperature: - 30 ℃ ~ + 100 ℃
Collector emitter saturation voltage: 0.1 V (typical value)
Cut-off frequency: 80kHz
Current transmission ratio: 50% ~ 600%
Package Includes:

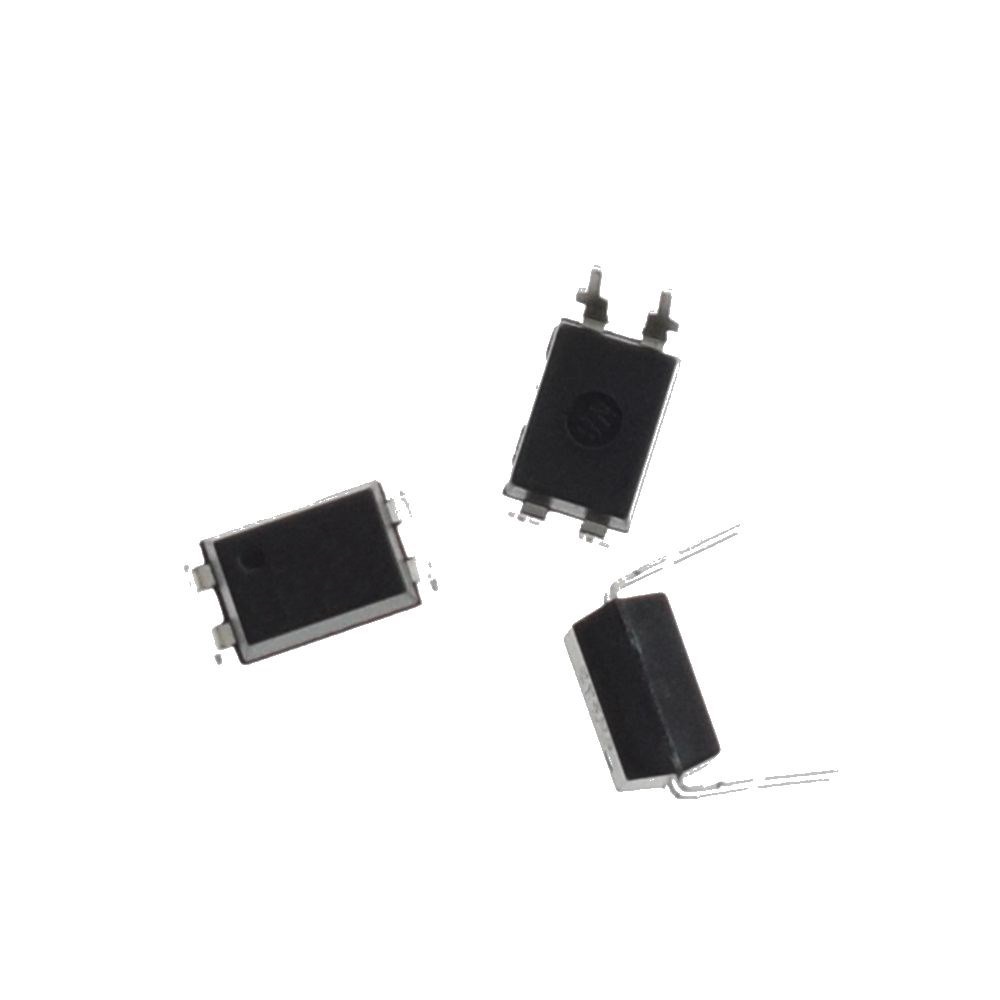

1 pc * PC817 – Optoisolator / Optocoupler
