Description
Product Description
• The training systems focus on conveying authentic application knowledge and information on programmable logic control (PLC) and demonstrate how such systems are networked with sensors and actuators. The fundamentals and operation of PLC systems are graphically explored using a multitude of examples, explanations, exercises and practical assignments.
• All the programming objects are available for motion control with excellent dynamic performance that highly simulate the automation control system used in industrial field.

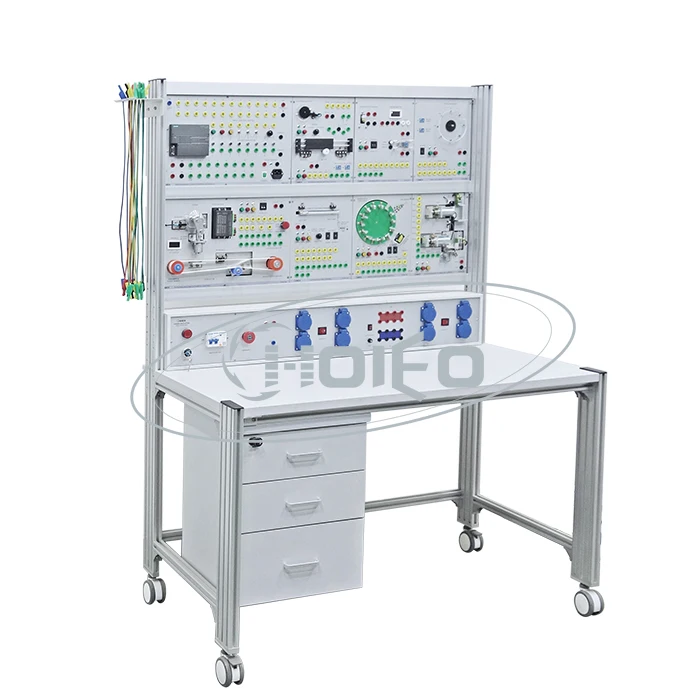

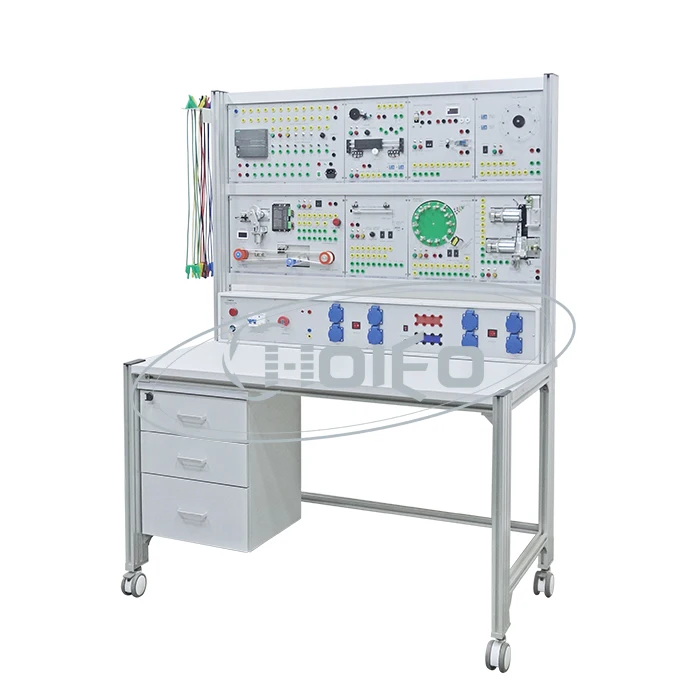

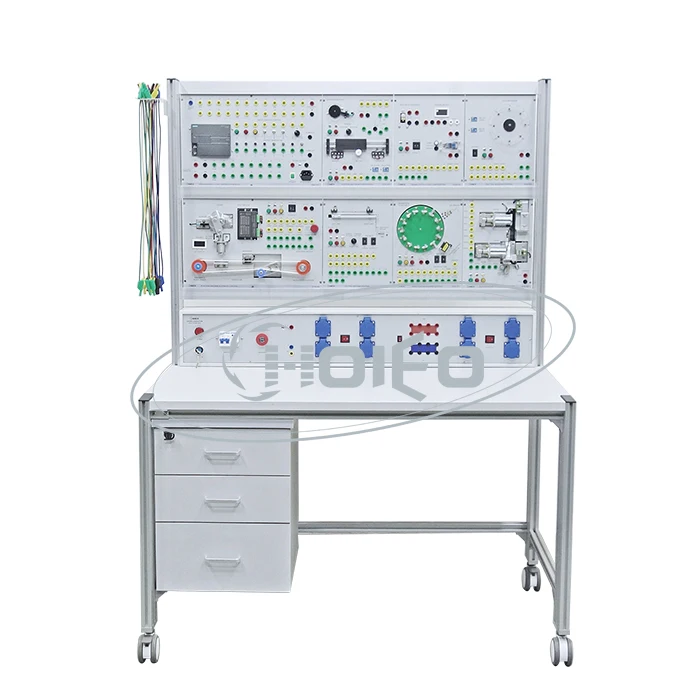

• The frame adopts standard aluminum profile with modular experiment panel design, thus, making it easily to build different experiment combination on the flexible two-layer structure. All the upper parts are removable including the experiment module, power supply module and frame support.
• All terminals are led out on printed composite panel with 4mm safety socket and connected by full sealing sheathed pluggable connector. The complete unit is movable with lockable truckles on bottom and available for training content extension by using other CHOIEO modular units.
TRAINING CONTENT
PLC mainframe
• Work with STEP 7 programming software
• Data types
• Creating statement lists
• Programming languages STL, LAD and FBD
• Programming of binary operations
• Programming of counters and time makers, comparison and arithmetic functions
• Program structure, invoking subroutings
• Putting into operation and testing
Dynamic demo systems
• Spray painting machine control system
• Cutting machine control system
• Stepping motor motion control system
• CNC tool magazine control system
• Thermostatic closed loop control system
• Punching machine automatic control system
• Electromagnetic handling control system
