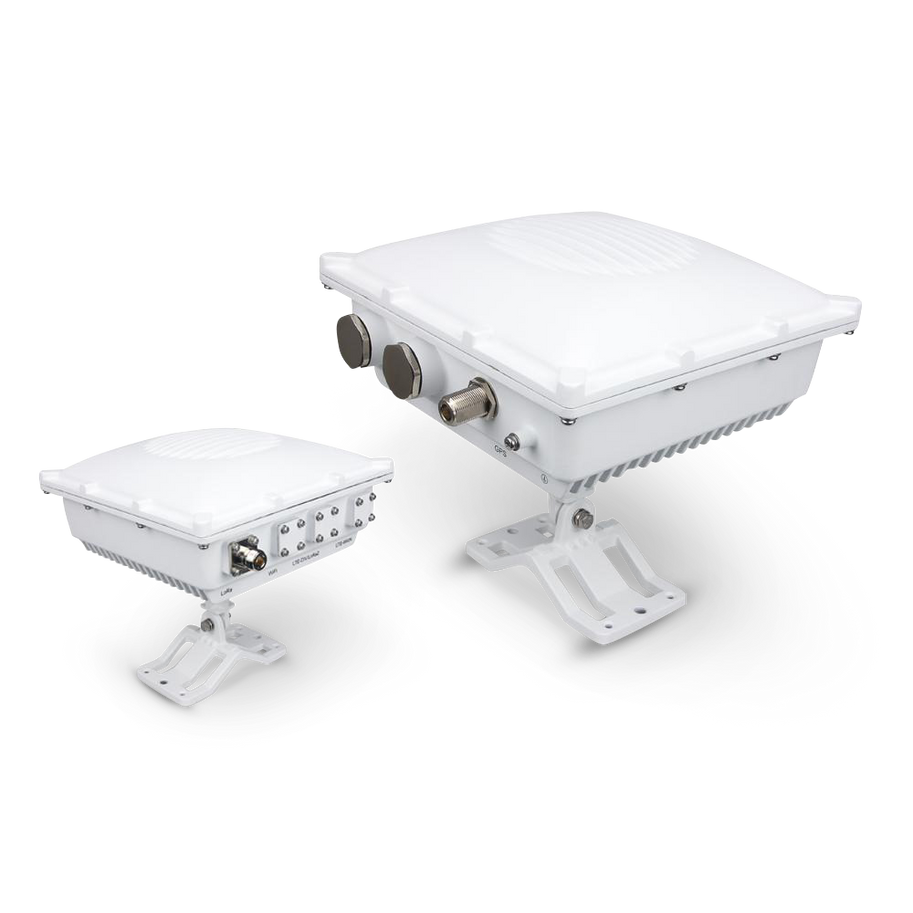

Outdoor Gateway Enclosure With 2xN-Type connectors

Industrial Die-Cast Aluminum Design

Designed to withstand the toughest of environments, this enclosure is made of Industrial Die-Cast Aluminum. It is rated IP67/NEMA-6, making it completely protected from dust ingress and submergible up to 1m in water.

Complete documentation of this product can be found on our website documentation page.

Enclosure

• Enclosure dimensions: 220 x 220 x 104mm
• Enclosure weight: 2kg
• Supported pole diameter: 70~100mm

Thermal Characteristics

• Enclosure seal operating temperature range: -60°C to 230°C
• Heat Trap: +6.5°C under full sun exposure (~ 100,000 Lux)
• Temperature raise using a 5-10W heat source: +5.5°C

Ports

• Ports For RAKBox-GW-1
• 5x N-Type Antenna connectors
• 1x Ethernet cable gland
• 1x Reserved port
• For RAKBox-GW-0
• 2x N-Type Antenna connectors

Supported Products

• WisGate Edge Max (RAK7249)
• RAK831 Concentrator Boards
• RAK7243C Pilot Gateway

Packaging

• Package Dimensions: 450mm x 300mm x 150mm
• Package Weight: 3400g
• Inclusions:
• Enclosure together with connectors

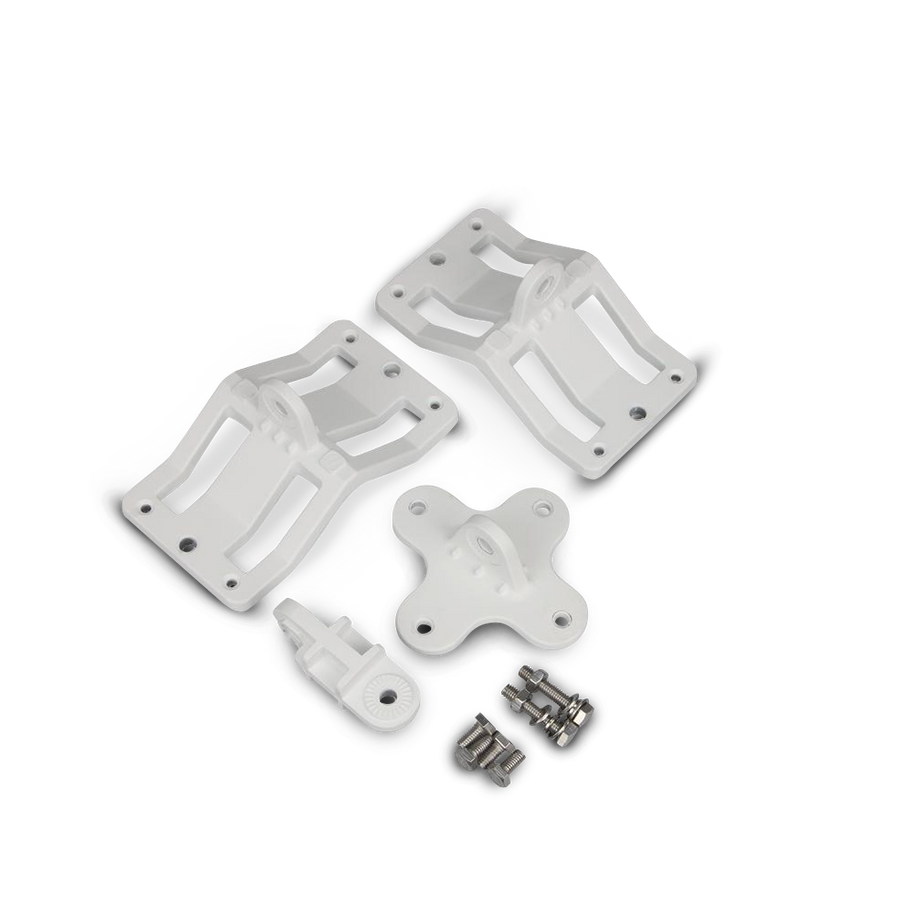

• The full assembly kit is included
