Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

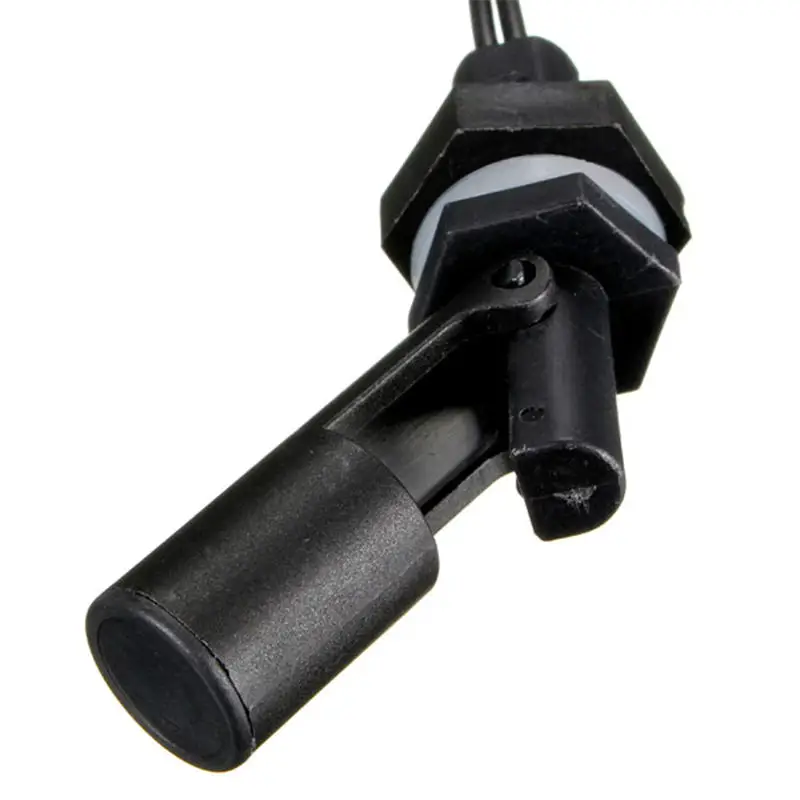

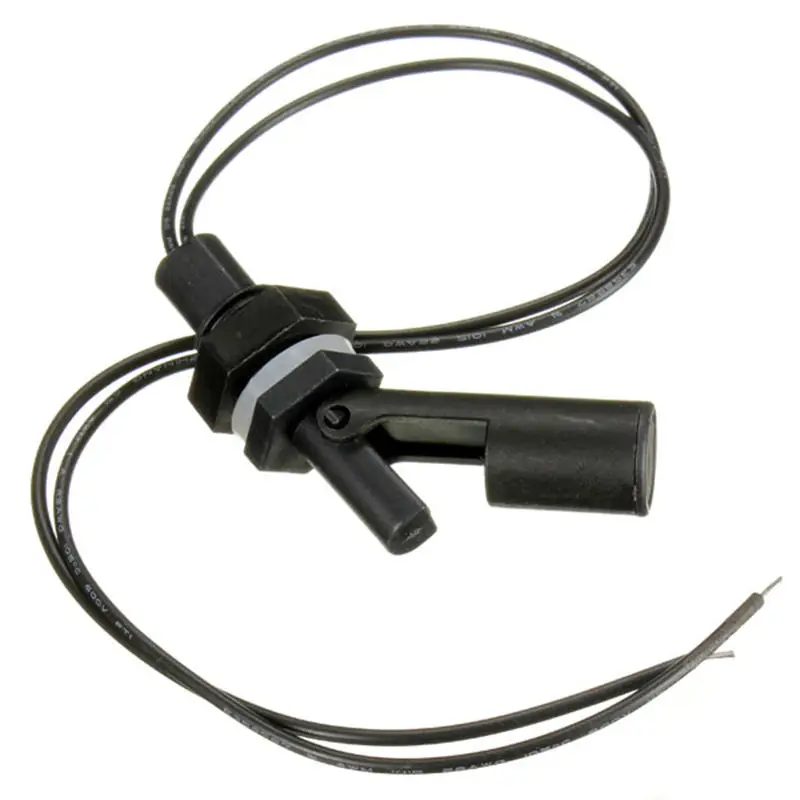

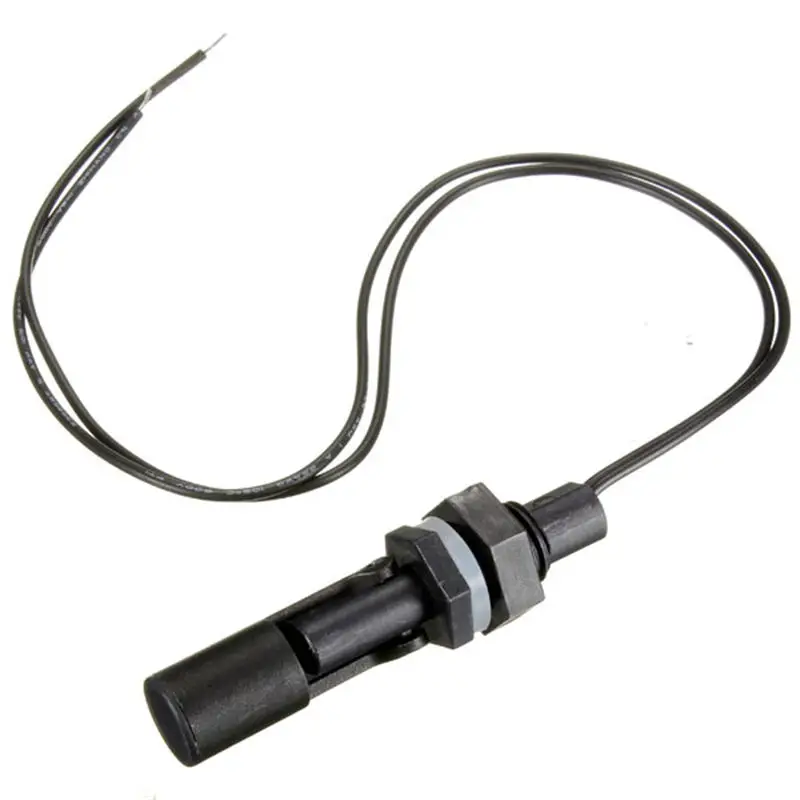

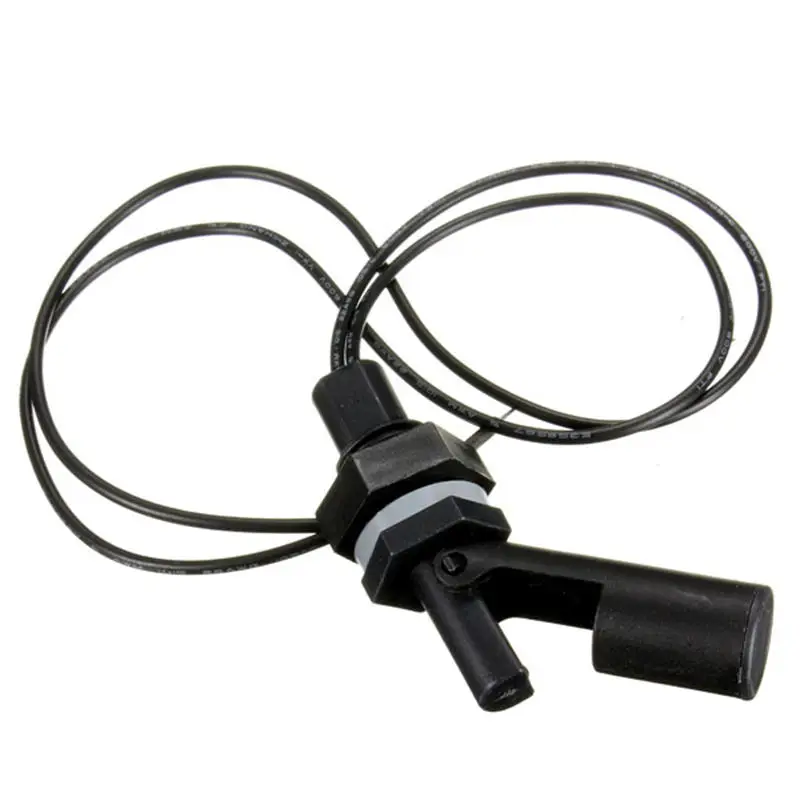

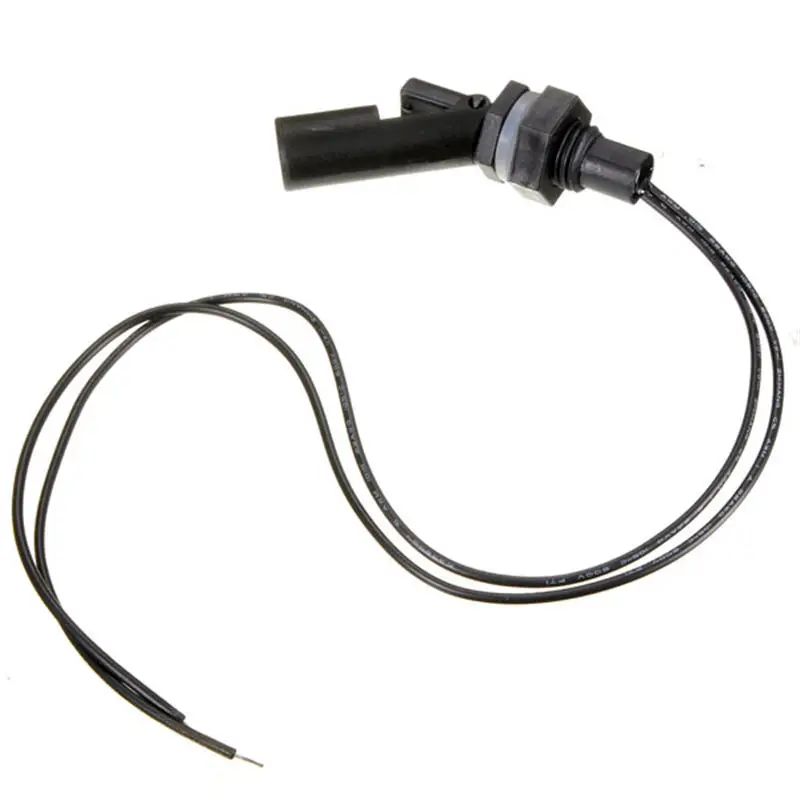

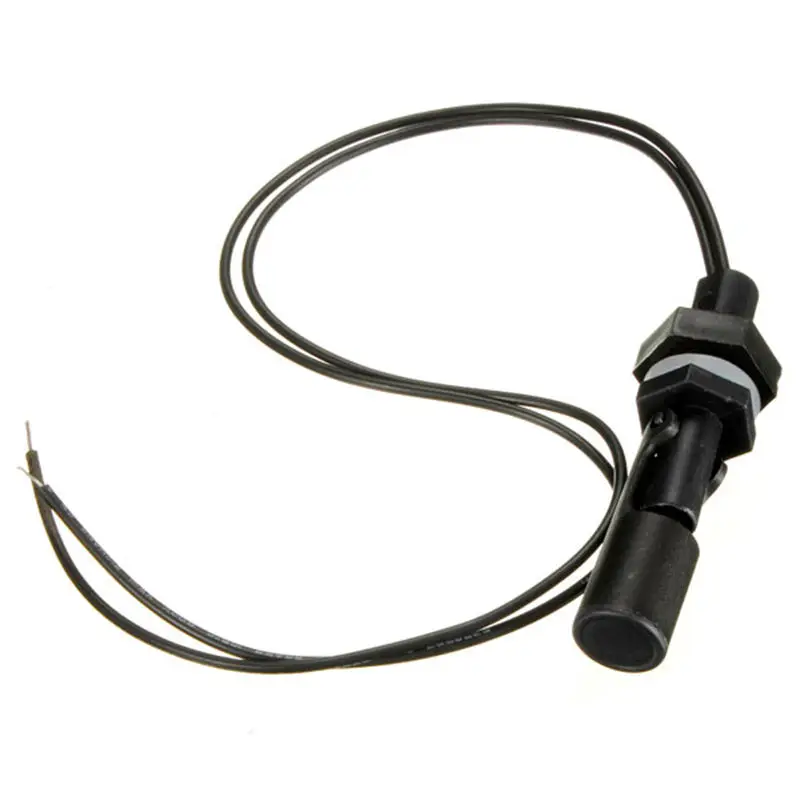

| Product Type | Float Type Liquid Level Switch Sensor |
| Sensor Type | Mechanical float switch |
| Material | Plastic |
| Color | Black |
| Operating Principle | Float movement triggers internal switch based on liquid level |
| Switch Power (Max) | 10 W |
| Switching Voltage (Max) | AC 100 V |
| Switching Current (Max) | AC 0.5 A |
| Electric Strength | AC 1500 V for 1 minute |
| Contact Resistance | < 200 mΩ |
| Operating Temperature | -20 °C to +80 °C |
| Cable Length | ~400 mm (15.76") |
| Float Length | 85 mm (3.35") |
| Output Type | Mechanical switching output (ON/OFF) |
| Mercury Content | Mercury-free |
| Installation Type | Mounted inside tank (immersed float) |
| Detection Method | Physical liquid level contact via float buoyancy |
| Applications | Water tanks, hydroponics, saltwater tanks, freshwater tanks, aquariums, gardening systems, filtration systems, pumps, alarms, pet bowls |
| Key Features | Simple design, high reliability, can trigger pumps/alarms, wide usage in liquid level control systems |
Package Includes:
1 x Water Level Sensor
