Hantek 6022BE 2 Channels 20Mhz Oscilloscope

(No reviews yet) Write a Review
SKU:
PEFRS54
Shipping:
Calculated at Checkout
  • Hantek 6022BE 2 Channels 20Mhz Oscilloscope
  • Hantek 6022BE 2 Channels 20Mhz Oscilloscope
  • Hantek 6022BE 2 Channels 20Mhz Oscilloscope
KES11,800.00

SOLD OUT

Description

Features:
*Cost-effectiveness; Excellent industrial design-the same anodized aluminum casing as iPad, which is not only beautiful and tasteful but also     greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
*Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
*USB2.0 interface, no external power source required, easy to use.
*Be suitable for notebook computer, product line maintenance, be used easily on business.
*Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
*High performance, 48MS/s real-time sampling, 20MHz Bandwidth,
*Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
*23 measurement functions, PASS/FAIL Check, be suitable for technical application>

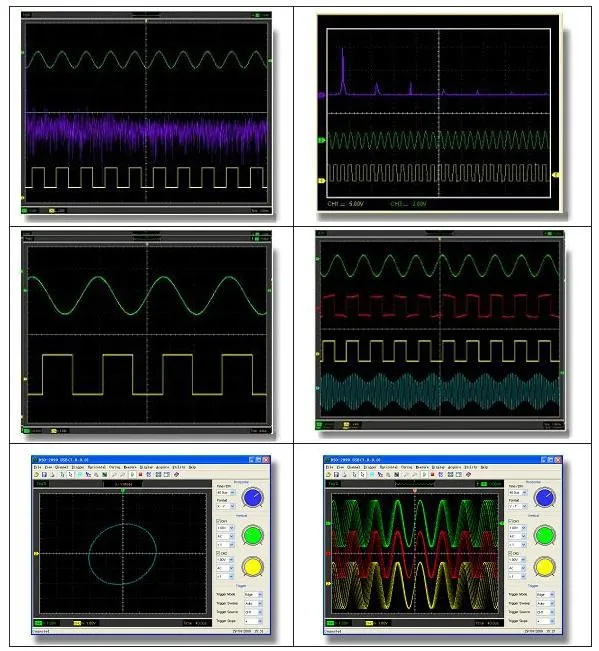

*Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
*Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
*FFT
*One computer can connect many DSO, extend channel easily.
*Labview\VB\VC\Delphi\C++Builder Second Design instance.

Parameters:

Model

Hantek6022BE

Hantek6052BE

Hantek6082BE

Hantek6102BE

Hantek6212BE

Channel

2 Channels









Bandwidth

  20MHz

50MHz

80MHz

  100MHz

   200MHz

Input Impedance

 1MÎ@ 25pF









Max. Sample rate

 48MS/s

 150MS/s

250MS/s

  250MS/s

  250MS/s

Coupling

DC

  AC/DC/GND







Vertical resolution

 8Bit

Gain range

 10mV-5V, 9Steps

DC accuracy

            ±3%

Time-base range

4ns-5ks

4ns-1h, 38 Steps







Vertical adjustable

  Yes

Input protection

 Diode clamping

X-Y

Yes

EXT. input

     No

Yes







Trigger Mode

Auto, Normal and Single

Trigger Slope

 +/-

Trigger level adjustable

  Yes

Trigger Type

    Rising edge, falling edge

Trigger Source

 CH1, CH2

CH1, CH2, EXT







Pre/Post trigger

 0-100%

Sampling selection

   Yes

Waveform Display

port/line, waveform average, persistence, intensity

Network

   Open/Close

Vertical mode

CH1, CH2, Dual, ADD

Cursor measurement

    Yes

Math

 FFT, addition, subtraction, multiplication, division.

Cursor

 Frequency, Voltage

Accessories

S/W CD, probes, manual, USB cord

Package List:
1 * Oscilloscope
1 * USB Cable
1 * CD
2 * Probe
1 * User Manual (English)
