Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

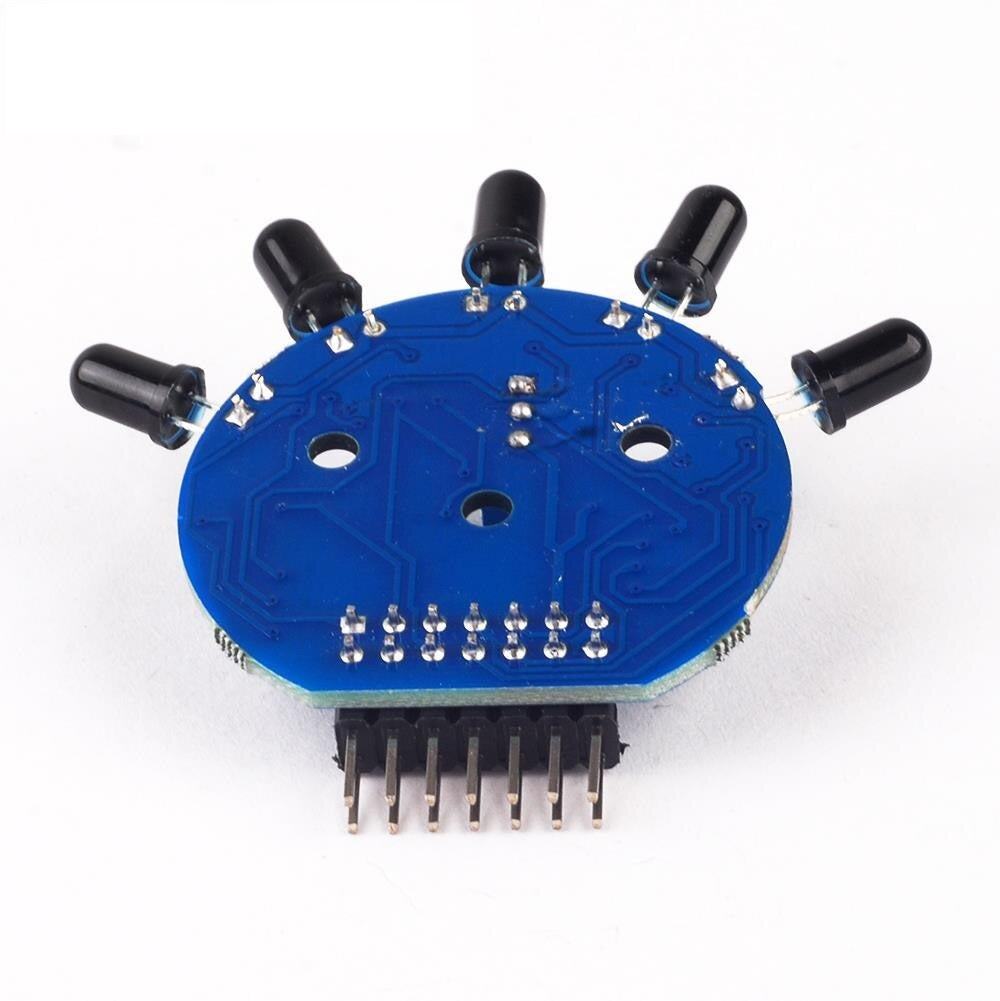

| Product Type | Five-Channel Flame Detection Sensor Module |
| Technology | Multi-channel infrared flame spectrum detection (SW-NIR) |
| Working Principle | Detects flame radiation in 700–1100 nm range and converts to electrical signals |
| Detection Spectrum | 700 nm – 1100 nm (short-wave near infrared) |
| Detection Angle | Greater than 120° wide-angle detection field |
| Output Types | Digital output (high/low) + Analog voltage output |
| Channels | 5 independent flame detection channels |
| Sensitivity Control | Adjustable digital and analog sensitivity |
| Detection Distance | Adjustable via digital output threshold |
| Signal Indicators | LED indicators for all 5 channels |
| Precision Design | 1% precision resistors for high accuracy output |
| Power Supply | 3.3V – 9V compatible |
| Mounting Feature | 3 × M3 mounting holes for easy installation |
| Manufacturing Quality | SMT automatic welding (industrial/military-grade reliability) |
| Key Features | Wide-angle detection, multi-channel sensing, high precision output |
| Application Scope | General flame detection, safety systems, robotics |
| Use Cases | Firefighting robots, fire alarm systems |
| Response Capability | Fast detection of infrared flame radiation |
Package Includes:
1 x 5 Way Flame Sensor Module Digital Analog Output Fire extinguisher Robot for Arduino
