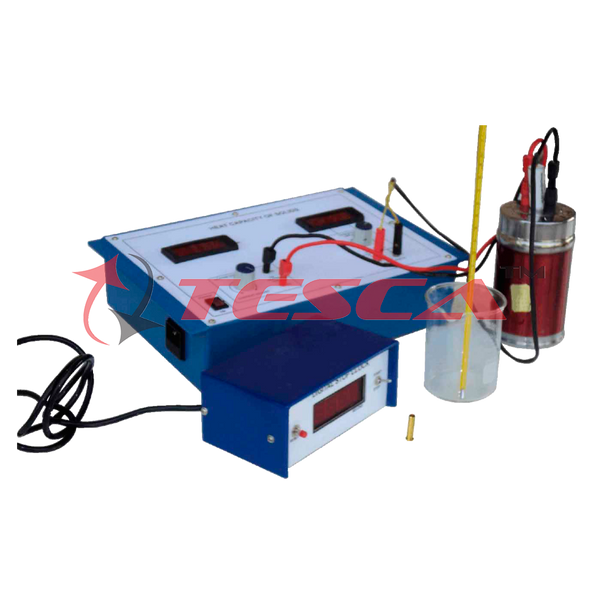

Heat Capacity of Solids (C.R.) - Order Code 55821

SPECIFICATION

1. To determine Heat Capacity of solids.

1. One board consisting of the following built in parts :
   • Amplifier with digital display assembly with Power Supply.
   • Current source 0-500mAfor heater coil.
   • Digital Ammeter, 3½ digits having range 2 Amp. D.C. 02 Oven.
2. Samples : Test sample - Brass, Standard sample - Aluminium
3. Iron constantan unijunction thermocouple.
4. Beaker : 250ml
5. Thermometer : 110°C x ½
6. DIGITALSTOP CLOCK : With START/STOPoperation by means of toggle switch & RESETby a push button switch. It has a range of 999.9 seconds with resolution of 0.1 seconds and accuracy of ±0.01% (Quartz controlled). Display is thorough 4 no’s of 12.5mm bright Seven Segment Displays and working voltage of the unit is 230V± 10% 50Hz.
7. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
8. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections & observation of waveforms.
9. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
10.  Weight : 3.5 Kg. (Approx.)
11. Dimension : W 340 x H 125 x D 210
