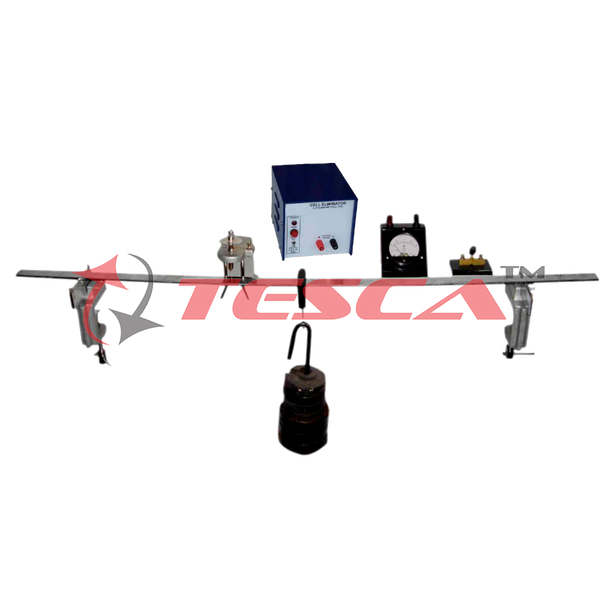

Determination of Young's modulus by bending of beam (C.R.) - Order Code 55743

SPECIFICATION

1. To determine the Young’s modulus by bending of beam.

1. Nickelled steel beam one meter long having two knife edge clamps, central knife edge with hanger resting  on the beam and spherometer head, mounted on a separate base.
2. Slotted Weights with Hanger : Set of five containing four sloted one hanger each weighing, 0.5 Kg. set Totall 2.5 kg. iron, black painted.
3. Vernier Calliper.
4. One Way Plug Key.
5. D.C. Galvanometer, 65mm round dial, mounted on bakelite stand, to read 50G
6. Leclanche Cell or substitute Cell Eliminator
7. Weight : 10.7 Kg. (Approx.)
8. Adequate no. of connecting wires, 100cm long.
9. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
