Description
Order Code: 52059

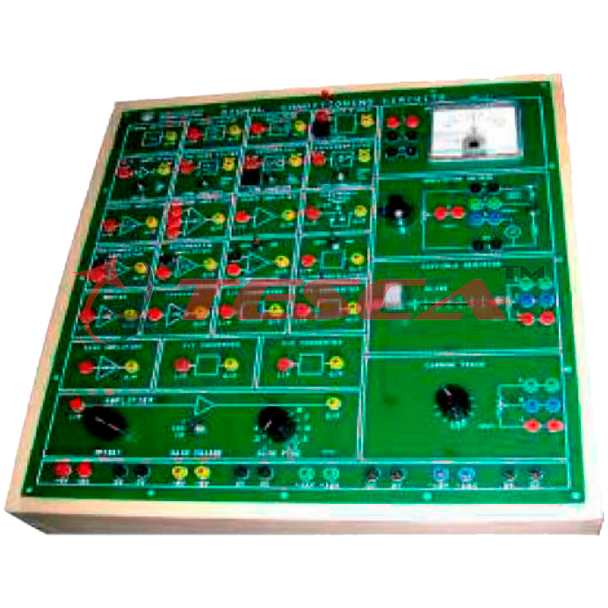

Name: Signal Conditioning Trainer
SPECIFICATION
The SIGNAL CONDITIONING CIRCUITS trainer introduces students to display devices through a wide range of hands-on practical activities. This self contained trainer has all the necessary power supplies. The trainer is supplied with a detailed curriculum manual that provides background theory, practical activities and student assessment questions. A student workbook is also provided, allowing students to create a personalized record of their work together with practical results as they work through the curriculum materials. Finally, an instructor’s guide is provided offering solutions to all 0f the questions and practical activities contained in the curriculum manual and student workbook.
THE BENCH-MOUNTED TRAINER FEATURES THE FOLLOWING CIRCUITS:
- Buffer
- Low pass filter with switchable time constant
- Inverters
- Precision full-wave rectifier
- Comparator with switchable hysteresis
- Sample and hold circuit
- Amplifiers with gain and offset control
- Integraro with switchable time constant
- Current amplifier
- Differentiator with switchable time constant
- Summing amplifier
- V/F and F/V Converters
- Differential amplifier
- V/I and I/V converters
- Instrumentation amplifier
- Alarm osc with switchable latching
- AC amplifier
- Power amplifier
- Oscillator 40kHz l Electronics Switch
- Filter 40 kHz
