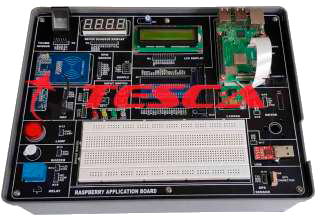

Raspberry Application Board - Order Code 52072B

SPECIFICATION

1. RASPBERRY PI 3 MODEL B
   • Broadcom  BCM2837B0,  Cortex-A53  (ARMv8) 64-bit SoC @ 1.4GHz
   • 1GB LPDDR2 SDRAM
   • 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
   • Gigabit   Ethernet   over   USB 2.0  (maximum throughput 300 Mbps)
   • Extended 40-pin GPIO header
   • Full-size HDMI
   • 4 USB 2.0 ports
   • CSI camera port for connecting a Raspberry Pi camera
   • DSI display port for connecting a Raspberry Pi touchscreen display
   • 4-pole stereo output and composite video port
   • Micro SD port for loading your operating system and storing data
   • 5V/2.5A DC power input
   • Power-over-Ethernet (PoE) support (requires separate PoE HAT)
2. On Board Applications
   • 4 Input Switches to give Digital Input
   • 4 LEDs to display Digital Output
   • 4 digit Seven segment displays
   • 16*2 Alphanumeric LCD
   • Miniature Buzzer
   • 12V SPDT Relay
   • Fingerprint Sensor Module
   • RFID Sensor Module
   • Neo 6m v2 GPS Module
   • 16 Bit I2C 4 Channel ADC using ADS1115 module
   • 40 Pin GPIO Extension Board for Raspberry Pi
   • Pilot lamp Indicator
   • Pi camera Module
   • USB to Serial converter
   • DC Motor
   • 600 Tie Points Bread Board Area provided

3.  Interconnection
   • All interconnections are made using 0.8mm Single stand wires.
4. Test points are provided to analyze signals at various points.
5. All ICS are mounted on IC Sockets.
6. Bare board Tested Glass Epoxy SMOBC PCB is used.
7. In-Built Power Supply of 3.3V, 5V & 12V with Power ON indication
8. Attractive ABS Plastic enclosures
9. Set of 0.8mm single stand wires for interconnections

LIST OF EXPERIMENTS

1. Starting Raspbian OS, Familiarising with Raspberry Pi Components and interface, Connecting to ethernet, Monitor, USB.
2. Displaying different LED patterns with Raspberry Pi
3. Displaying Time over 4-Digit 7-segment Display using Raspberry Pi.
4. Setting up Wireless Access Point using Raspberry Pi
5. Fingerprint Sensor interfacing with Raspberry Pi
6. Raspberry Pi GPS Module Interfacing
7. IoT based Web Controlled Home Automation using Rasbperry Pi.
8. Visitor Monitoring with Raspberry Pi and Pi Camera.
9. Interfacing Raspberry Pi with RFID.
10. Building Google Assistant with Raspberry Pi.
11. Installing Windows 10 IoT Core on Raspberry Pi.
