TESCA

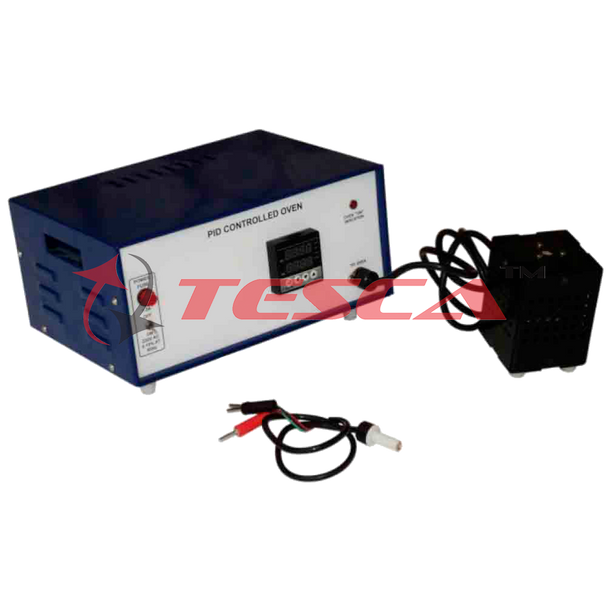

PID Controlled Oven - Order Code 52063

(No reviews yet) Write a Review
SKU:
52063
Shipping:
Calculated at Checkout
KES0.00

Description

Order Code: 52063
Name: PID Controlled Oven

SPECIFICATION

Small ovens are frequently used in class room experiments for the determination of temperature coefficients of resistances, capacitances, zener diodes, and also for studying the leakage currents of semiconductor devices at various temperatures.
Conventional arrangement with oven fed from an auto transformer and thermometer type temperature measurement is unsatisfactory due to the long time it takes the oven to heat or cool, large time constant of mercury thermometers and difficulty in setting and maintaining a particular temperature.

DESCRIPTION
This is high quality PID controlled oven suitable for testing of electronic components & study of temperature transducers etc. The oven has been designed for fast heating and cooling rates which enhances the effectiveness of the controller. SSR driven heater and accurate temperature control.
Aplatinum RTD has been used for sensing the temperature.

TECHNICAL SPECIFICATION
  1. Temperature
    • Range : Ambient to 200 C
    • Resolution : 0.1 C
    • Stability : Less than 0.2 C
  2. Measurement
    • Accuracy : 1 digit
    • Oven : Top Open Heating Chamber.
    • Oven heating up to 200
    • Chamber L80 x W80 x H105mm
    • Sensor : RTD (AClass)
  3. Display : Process value 4 digit
    • 7-segment Red LED
    • Power : Set Value 4 digit
    • 7-segment Green LED.
    • Power Consumption : 120 Watt
SAFETY INSTRUCTION WARNING
  1. An external protection device must be installed if failure of this instrument could result in damage to the instrument, equipment or injury to personnel.
  2.  All wiring must be completed before power in turned on to prevent electric shock, fire or damage to instrument and equipment.
  3. This instrument must be used in accordance with the specifications to prevent fire or damage to instrument and equipment.
  4. This instrument is not intended for use in locations subject to flammable or explosive gases.
  5. Do not touch high-voltage connections such as power supply terminals, etc. to avoid electric shock.
