DC Position Servo Trainer (Analog & Digital) - Order Code 52054

(No reviews yet) Write a Review
SKU:
52054
Shipping:
Calculated at Checkout
KES0.00

Description

Order Code: 52054
Name: DC Position Servo Trainer (Analog & Digital)

SPECIFICATION

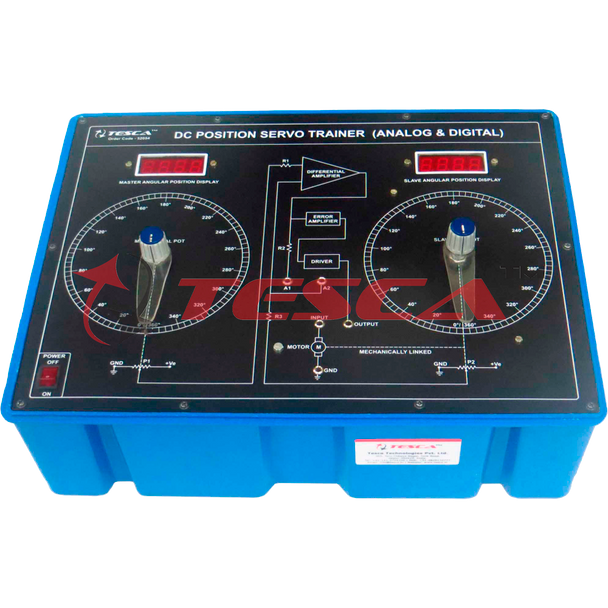

Order Code 52054 DC Position Servo Trainer (Analog & Digital) is designed specifically for the study of DC Servo Trainer and its use in Angular Position control. This Trainer covers the fundamental facts of DC Servo Trainer and its characteristics this trainer makes the student familiar with the DC Angular position control & DC Servo System. Four experiments can be performed by the trainer.
Practical experience on this board carries great educative value for Science and Engineering Students.

List of Experiments:
Following Experiments can be performed:
  1. To Study DC Motor Angular Position Servo System
  2. Measurement of Dead Zone
  3. To Study the different Characteristics of Servo System
    • Hunting
    • Repeatability
    • Noise Free
  4. Other Characteristics of Servo System
    • Fast Response
    • High Accuracy
    • High Sensitivity
    • Linearity
    • Resolution
Features:
The Trainer Consists of following built in parts
  1. Servo Mechanism Provided
  2. DC Geared Servo Motor
  3. Two DPM Provided for Angular Position Display in degree
  4. Master & Slave Dial special 360° rotation
  5. Master Dial Pot
  6. ± 12V DC at 100mA, IC Regulated Power Supply
  7. ± 9V DC at 250mA, IC Regulated Power Supply
  8. A Control Circuitry
  9. Mains ON/OFF Switch, Fuse and Neon Indicator are provided
  10. Adequate no. of patch cords 4mm length 50cm.
  11. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms.
  12. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
