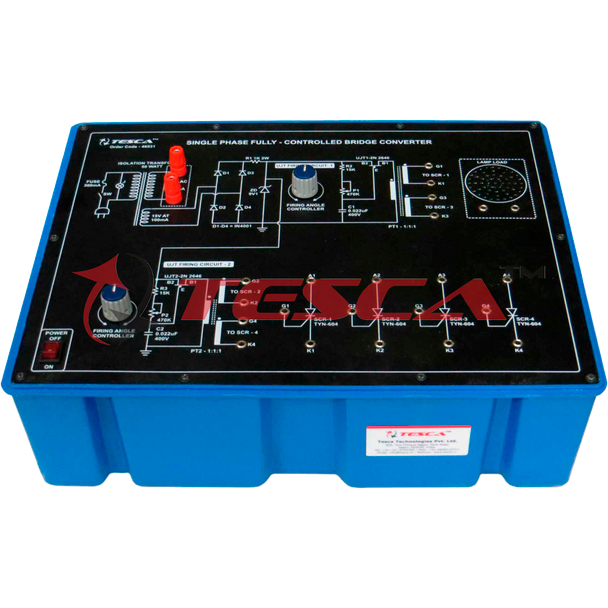

Single Phase Fully- Controlled Bridge Converter - Order Code 46531

SPECIFICATION

1. 230VA.C. Isolated Transformer, Power 50 watt.
2. 9V D.C. at 100mA Zener Regulated Power Supply.
3. Two UJT.
4. Four SCR’s.
5. Two Pulse transformer 1:1:1.
6. Two Potentiometers for controlling UJT firing angle.
7. Bulb 40W, 230VA.C.
8. Adequate no. of other Electronic Components.
9. Mains ON/OFF switch, Fuse and Jewel light.
10. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
11. Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre.
12. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
