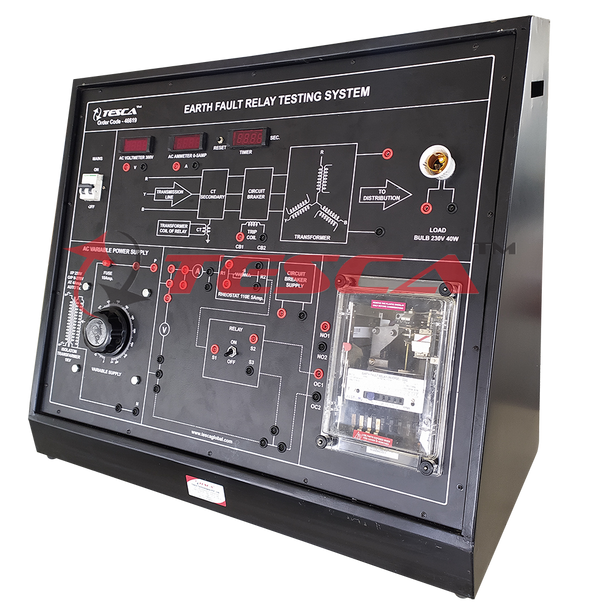

Earth Fault Relay Testing System - Order Code 46619

SPECIFICATION

46619 Earth Fault Relay Testing System is designed to provide exposure of protection device used to prevent faults in electrical circuits due to earth leakage current. The protection of electrical system is required to maintain any device in operation without failure. There are various types of protective devices used in Power Systems. The knowledge of protective devices helps to use them smartly and avoid system breakdown. Earth leakage current gives rise to heat generation and progressive failure of insulation which leads to earth faults & sparks. The Earth Fault Relay detects the leakage current well before they cross threshold limit.

46619 provides complete learning platform related with the connection of Earth Fault Relay in transmission line and testing of Earth Fault Relay. After experimenting with 46619 the students will be able to use Earth Fault Relay in Power Systems.

Features
1.     Inbuilt variable source
2.     LED Display for better visibility
3.     Isolation transformer is provided for safe operation
4.     Exclusive and rugged designed panel
5.     Designed by considering all the safety precautions
6.     Diagrammatic representation for the ease of connections

Objects
1.    To study and verify the operating charac-teristics of Earth Fault Relay with different plug setting
2. To study connection of Earth Fault Relay in transmission line
3.     To study testing of Earth Fault Relay

For understanding the role of relays in real time transmission system a circuit of transmission line is provided from source to distribution with proper placing of all its required components.

Technical Specifications:
1.     Mains Supply : 230V AC ±10%, 50Hz
        Mains : On/Off by MCB 5Amp
        Indications : By Neon
2.    Single Phase Variac
       Input : 230V AC
       Output : 0 - 270V AC
       Current : 4A
3.    Isolation Single Phase Transformer
       Primary voltage : 230V AC
       Secondary voltage : 230V AC
       Rating : 1KvA (4.34Amp.)
4.    Single Phase Transformer
       Primary voltage : 230V AC
       Secondary voltage : 230V AC
       Rating : 40W
5.    Display Measurement
       Digital AC Ammeter : 5Amp.
       Digital AC voltmeter : 300V.
       Timer : 10mSec to 30Minute with reset.
6.    Earth Fault Relay
       Type : Electro mechanical Inverse time
       Plug Setting : 0.5A, 0.75A, 1.0A, 1.25A, 1.50A, 1.75A and 2A.
7.    Load : Bulb 40W
8.    Dimensions (mm) : W 800 x H 600 x D 350
9.    Weight : 62 kg (Approx)
