Description
Order Code: 38674

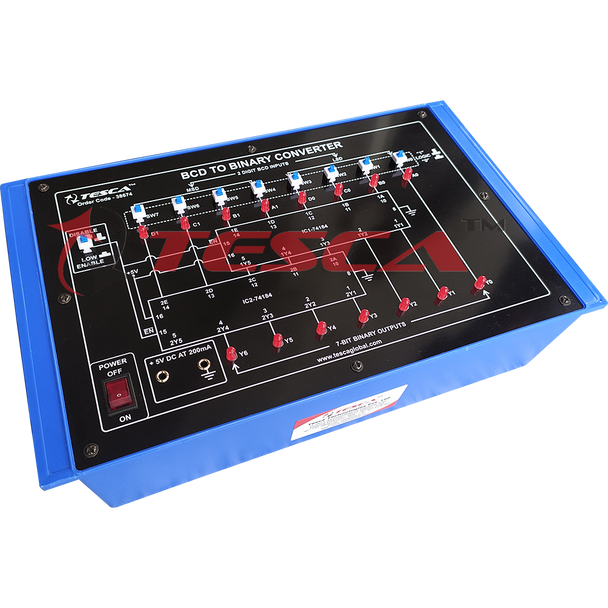

Name: BCD to Binary Converter
SPECIFICATION
Computer Logic Training Board has been designed specifically for the study of BCD to Binary conversion. The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
To study of BCD to Binary conversion.
Features:
The board consists of the following built-in parts :
01. 5VD.C. at 200mA, IC regulated power supply.
02. Two, BCD to Binary Convertor ICs.
03. 8, SPDT switch for logic selection.
04. One, SPDT switch for Enable/Disable.
05. 15, LEDs for visual indication of input and output status.
06. Adequate no. of other Electronic Components.
07. Mains ON/OFF switch, Fuse and jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for voltage measurements.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
To study of BCD to Binary conversion.
Features:
The board consists of the following built-in parts :
01. 5VD.C. at 200mA, IC regulated power supply.
02. Two, BCD to Binary Convertor ICs.
03. 8, SPDT switch for logic selection.
04. One, SPDT switch for Enable/Disable.
05. 15, LEDs for visual indication of input and output status.
06. Adequate no. of other Electronic Components.
07. Mains ON/OFF switch, Fuse and jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for voltage measurements.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
