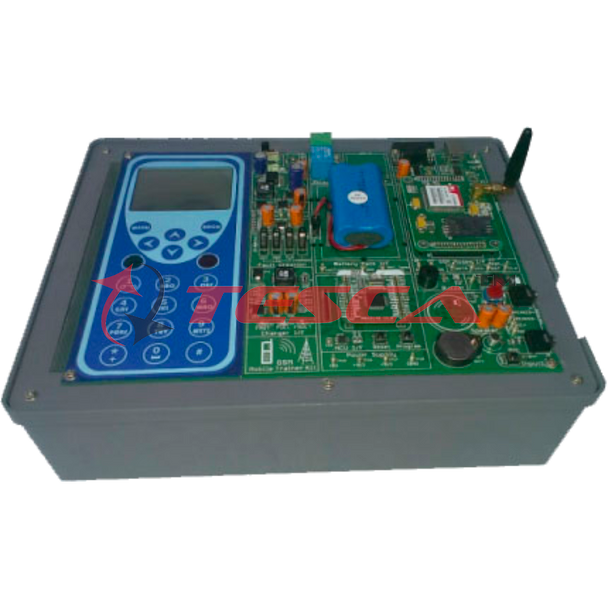

GSM Mobile Trainer Kit - Order Code 10939

(No reviews yet) Write a Review
SKU:
10939
Shipping:
Calculated at Checkout
KES0.00
Frequently bought together:

Description

Order Code: 10939
Name: GSM Mobile Trainer Kit

SPECIFICATION

Order Code : 10939 GSM Mobile Trainer Kit is an easy medium of learning the fundamental concept of Mobile communication like GSM, GPRS. The main focus of MCLS is in opening up a whole new world for you, mobile communication concepts like Call setup, call forward, SMS, voice, data and other Network protocols are also experimented on vis-à-vis the existing environment.

FEATURES:
  • Remote control by AT commands (GSM 07.07 and 7.05)
  • Baud rate from 300 to 115,200 bits/s, Auto baud.
  • Various LED indicators for POWER, Network, Low battery, Battery charging & Battery status & serial  Communications, Battery temp. indication etc.
  • Provision for auxiliary audio MIC & speaker connect.
  • Appropriate test points at various stages.
  • Specific digital inputs to allow direct SMS transmission if
  • any input changes state.
  • Relay output controlled over SMS.
SPECIFICATIONS:
  • Dual band 900 / 1800 MHz GSM / GPRS Modem.
  • Data, SMS, Voice.
  • Onboard RS-232 & USB connector for PC Communication.
  • 20 Membrane keys with multifunctional operation.
  • GLCD 128x64 for display.
  • On board RTC with independent battery backup.
  • Onboard Mic and Speaker interface.
  • SMA antenna connector with antenna.
  • Sliding / fixed landing SIM holder (3.3V/5V SIM interf.)
  • Remote control by AT commands (according to GSM 07.07 and GSM 07.05)
  • Maximum output power 2W for GSM 900: 1W for GSM 1800.
  • Bare board Tested Glass Epoxy SMOBC PCB is used.
  • In-Built SMPS of 12V/2A.
  • Attractive wooden enclosures.
  • User's Manual.
