Description

Order Code: 10916

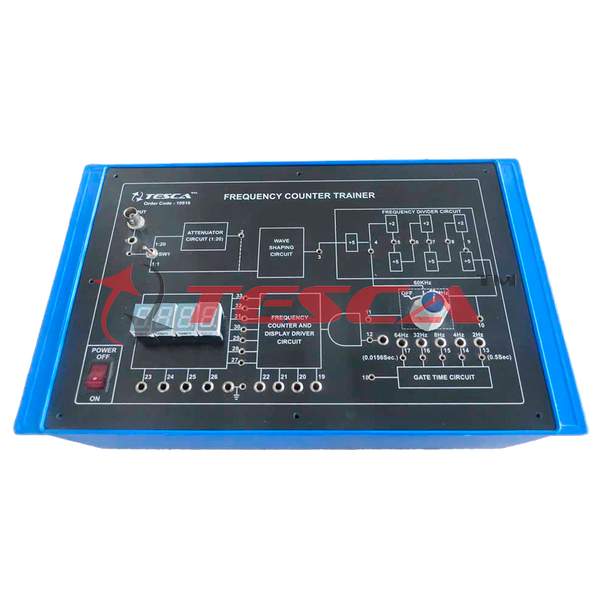

Name: Frequency Counter Trainer

SPECIFICATION

Frequency Counter Trainer, is an exclusive and attractively designed product to demonstrate the fundamental principle and functioning of Frequency Counter. It includes various circuits namely, attenuator circuit, wave shaping circuit, frequency divider circuit, display driver circuit, and gate time circuit. All these circuits are incorporated on a single board for study and verification. Simple representation of all the circuits can explain
corresponding functionality in a very easy way to perceive the logics.

Technical Specifications

Frequency Range : 20 Hz - 30 MHz
Resolution : 10 Hz (60 KHz Range)
10 KHz (30 MHz Range)
Sensitivity : 0.5 Volts
Accuracy : ± (0.5% 1D) of rdg
Attenuation : 1 : 1, 1 : 20
Input Coupling : AC
Input Impedance : 1 MW
Max. Input Voltage : 200 V (DC AC Peak)
Display : 4 digits, 7 Segment LED Display
