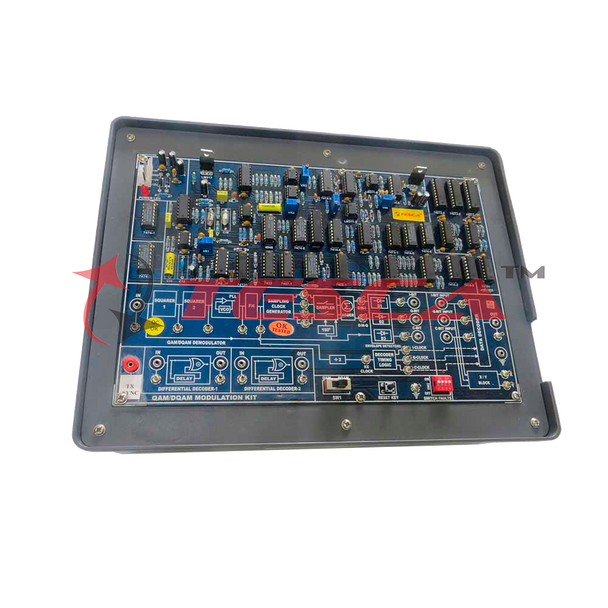

QAM/DQAM Demodulation Trainer - Order Code 40624

SPECIFICATION

• Receiver Clock generated by PLL method.
• Demodulation is done using PLL and Envelop Detector Method.
• Switch faults are provided to study its effects on circuits.
• Block Description screen printed on PCB.
• In-Built Power Supply.

• Receiver Clock
  • Receiver clock generated using PLL method Data Format (Decoding)
  • Non Return to Zero-Level (NRZ-L)
  • Tribit Decoded data (I ,Q & C)
  • Differential Decoded I & Q Bits.
• Carrier Demodulation Techniques
  • Quadrature Amplitude Demodulation
  • Differentially Quadrature Amplitude Demodulation
• On-board features
  • QAM/DQAM Demodulation using PLL and Envelop detectors
  • Switch Faults are provided on board to study different effects on circuit
  • Block Description Screen printed on glassy epoxy PCB
• Interconnections
  • All interconnections are made using 2mm banana Patch cords.
• Test points are provided to analyze signals at various points.
• All ICS are mounted on IC Sockets.
• Bare board Tested Glass Epoxy SMOBC PCB is used.
• In-Built Power Supply of 5V/1.5A, ±12V/250mA with Power ON indication
• Attractive enclosure.
• Set of 2mm Patch cords for interconnections.
• User's Manual with sample experiments programs.
