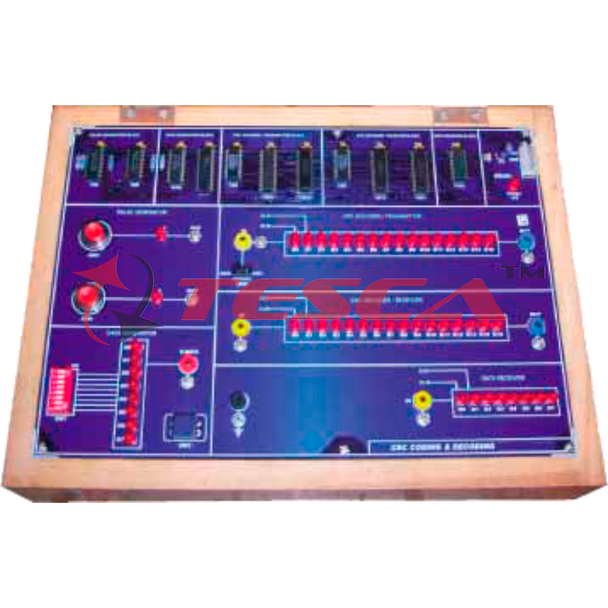

CRC Code/Decode Trainer - Order Code 40627

SPECIFICATION

• Pulse Generator
  • One Switch to provide Low to High Pulse.
  • One Switch to provide High to Low Pulse.
• Data Generator
• 8 bit Digital Data generator to generate any binary input word.
• Selection of Data using 8-way DIP Switch.
• Display
  • One LED indicator to indicate Power input.
• On-board Circuits
• CRC Encoder/ Transmitter Circuit for 16 bits CRC Polynomials
• CRC Decoder/ Receiver Circuit for 16 bits CRC Polynomials.
• Data Receiver Circuit for 8 Data bits.
• Power Supply
  • Fixed DC power supply : 5 V/500mA
• Interconnections
  • All interconnections are made using 2mm banana Patch cords.
• Bare board Tested Glass Epoxy PCB is used.
• Set of 2mm Patch cords for interconnections.
• User's Manual.
