TESCA
16 Channel Relay Output Board - Order Code 40632
(No reviews yet)
Write a Review
- SKU:
- 40632
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Order Code: 40632
Name: 16 Channel Relay Output Board
SPECIFICATION
The 40632 16 channel Relay Output Board consists of 16 form c relays for efficient switch of load by programmed control. It is connector and functionally compatible with 785 series board but with industrial type terminal block. The 40632 can be used by 812 board or any other compatible board The relay are energized by apply 5 volt signal to the appropriate relay channel on the 20-pin flat cable connector . Sixteen enunciator LEDs ,one for each relay , light when their associated relay is activated . To avoid overloading your PC's power supply ,this board provides a screw terminal for power supply .
Specification
Specification
- lBuilt-in signal and power sources
- FORM C RELAY
- Type : SPDT( form C )
- Maximum input voltage : 24 VDC or 24 VAC
- Nominal load : 0.5 A /120 VAC , 1A /24 Vdc
- Max. Switching power : 60VA,24W
- Max. Switching Voltage : 120VAC,60Vdc
- Max. Switching Current : 1A
- Life Expectancy : Mechanical ( 2 x 10 ) , Electrical ( 2 x 10 )
- Release Time Value : Operate ( 6 ms )
- Control Logic : Input TTL high ( 5V) , relay on
- Power Consumption : 12V @528mA max.
- 5V @150mAmax.
- Dimension : 205mm X 114mm
- Operating Temperature : 0 -60°C
- Storage Temperature : -20~70°C
- Humidity : 5% to 90 % noncondensing
Related Products
Related Products
16 Channel Multiplexer Board - Order Code 40633
TESCA
KES0.00
Order Code: 40633Name: 16 Channel Multiplexer Board
SPECIFICATION<
8 Channel Opto Isolated Output Module - Order Code 43245
TESCA
KES0.00
Order Code: 43245Name: 8 Channel Opto Isolated Output Module
SPECIFICATION
Interfacing Module are useful for Teaching/Training to interface&nbs
Relay Control System - Order Code 52039
TESCA
KES0.00
Order Code: 52039Name: Relay Control System
SPECIFICATION
Introduction
Most physic
Relay Control Trainer - Order Code 52012
TESCA
KES0.00
Order Code: 52012Name: Relay Control Trainer
SPECIFICATION
With the rapid progress in computer technology and their applications, these computers can
Differential Relay Testing System - Order Code 46620
TESCA
KES0.00
Order Code: 46620Name: Differential Relay Testing System
SPECIFICATION
46620 Differential Relay Testing System is a versatile product for electrical

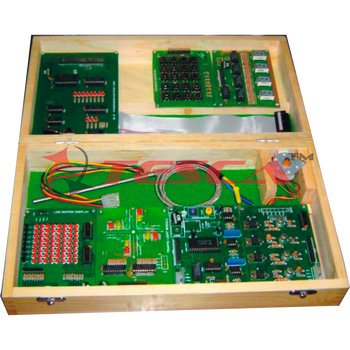

Relay & Opto Interface + Frc - Order code- 43239
