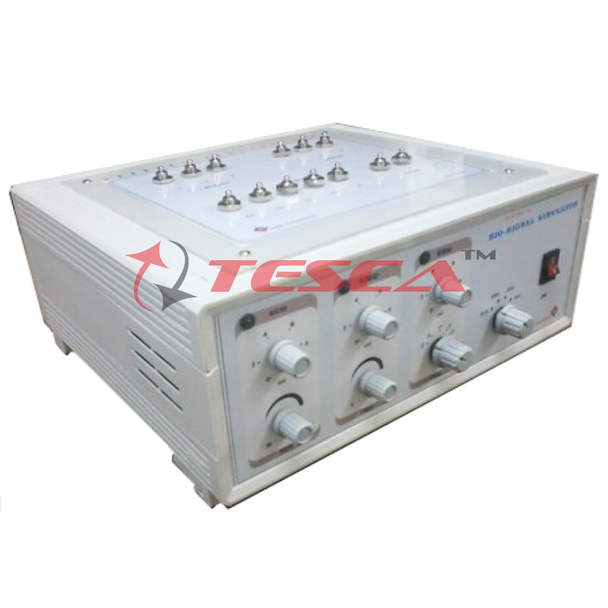

BIO-Signal Simulator ECG/EEG/EMG/HR Order Code - BM2571

SPECIFICATION

Bio-signal Simulator
Bio-signal Simulator with four Parameter
Calibration & Testing of ECG, EEG, EMG Instruments. Pulse output for Heart Rate or Respiration.
Select 3 Parameters or any one by Selector switch.
Power Supply 230V, 50Hz, Dimensions 300X100X 250 mm±

ECG
5 Lead RA, LA, RL, LL, & V with Universal Output Sockets
Standard PQRST Signal with output amplitude adjustable 0 to 5mV±.
Rate 30 to 120BPM± Adjustable. Audible & Visible Indication

EEG
Differential 3 Lead with d, f, a, b & g with Universal Output Sockets
Differential Output A, R & G, Adjustable Amplitude 0 to 20mV±.
Fix Frequency d, f, a, b & g

EMG
Differential 3 Lead Output with Universal Output Sockets
Differential Output A, R & G, Adjustable Amplitude 0 to 20mV±
Frequency Adjustable 0 to 1KHz±

Pulse
This is related with ECG setting. Pulse output with Universal Output Sockets
Output Pulse 9V±, Rate 30 to 120BPM± Adjustable.

Study on Bio-signal Simulator
Using Bio signal Simulator Calibrates or Testing of Instruments ECG, EMG, E EG, Herat Rate, Respiration Rate, etc. Amplifier, Recorder, Monitor Etc

Operating Manual with working of instrument, operating & installation procedure, Block diagrams, connection diagrams, Electrodes placement, Standard signals & actual output signal, Calculations, Tables, Trouble shooting, Experiments list & etc.
