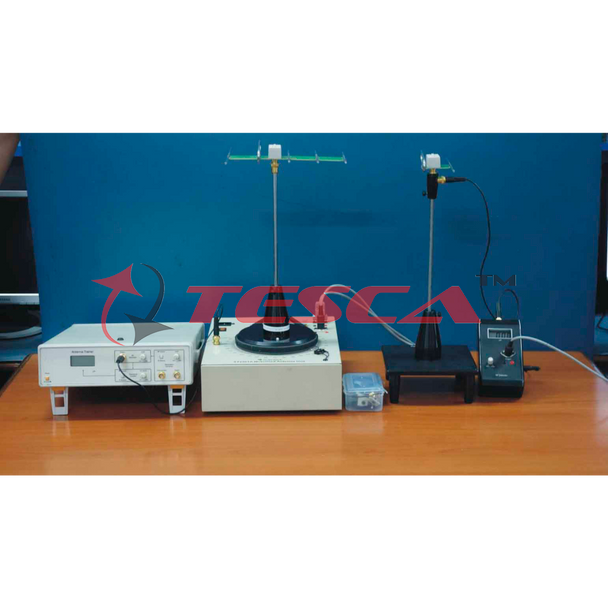

Motorised Antenna Trainer with Plotting Software and 22 Antennas - Order Code 10010

SPECIFICATION

Features

1. Microconroller Based High Precision DC Stepper Motor
2. Automatic Zero Point setting
3. 4Built-in DC Power Supply
4. Instant Plotting of radiation Pattern
5. Resolution 1.80
6. RS232 data link to PC
7. Software running under Windows 98/ XP/ Window 7
8. 2 Year Warranty

Technical Specifications
RF Input : From Order Code - 10008
Detector : Active with 5 pin DIN Connector
Antenna Rotation : 360° (Resolution 1.8°)
Power Supply : 230V ± 10%, 50/60 Hz
Power Consumption : 2 VA (approximately)
Dimensions (mm) : W 285 × D 390 × H 88
Weight : 3 Kg (approximately)

Accessories

1. Mains Cord, 5 Pin DIN cable,
2. Patch Cords, BNC-BNC Cable,
3. RS232 Cable,
4. Radiation Pattern Plotting Software
