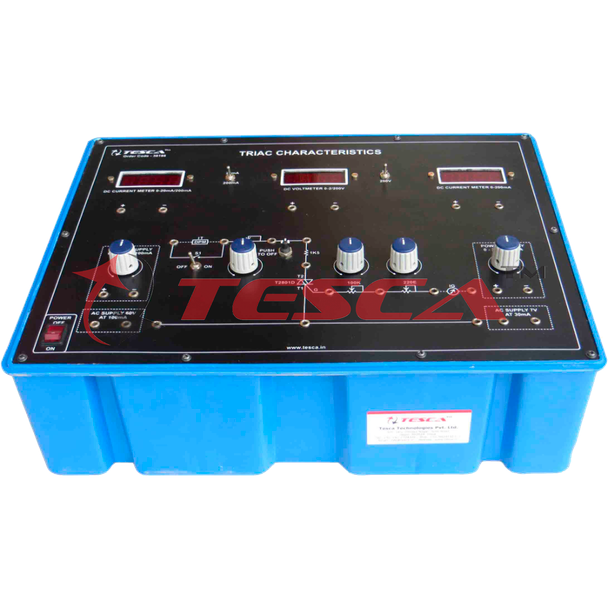

Triac Characteristics with Power Supply and 3 Dual Range meters - Order Code 36166

SPECIFICATION

1. To study the gate characteristics of a TRIAC in the following modes :
   1. Mode I : i.e. T2 positive with respect to T1 and gate positive with respect to T 1
   2. Mode I- : i.e. T2 positive with respect to T1 and gate negative with respect to T 1
   3. Mode III : i.e. T2 negative with respect to T1 and gate positive with respect to T 1
   4. Mode III- : i.e. T2 negative with respect to T1 and gate negative with respect to T 1
2. To study the terminal characteristics of a TRIAC in the following modes :
   1. Mode I : i.e. T2 positive with respect to T1 and gate positive with respect to T 1
   2. Mode III : i.e. T2 negative with respect to T1 and gate positive with respect to T 1
3. To study the following applications of TRIAC :
   1. Triac as a static switch (D.C. control).
   2. Control of A.C. with A.C. signal.
   3. To measure the holding current of IH. Triac.

1. 0-70V D.C. at 100mA, regulated Power Supply.
2. 0-3V D.C. at 30 mA, regulated Power Supply.
3. 55 Volt at 100mA, fixed A.C. Supply.
4. 7 Volt at 30mA, fixed A.C. Supply.
5. Digital Current meter DC 3½ Digit having Dual range of 20mA / 200mA .
6. Digital Voltmeter DC 3½ Digit having Dual range of 2V / 200V.
7. Digital Current meter DC 3½ Digit range of 200mA .
8. TRIAC.
9. Three Potentiometers of 100K, 10K and 220 Ohm.
10. Reset switch.
11. Adequate no. of other electronic components.
12. Mains ON/OFF switch, Fuse and Jewel light.
13. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
14. Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
15. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
16. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
