Timer Applications Using IC-555 - Order Code 36369

SPECIFICATION

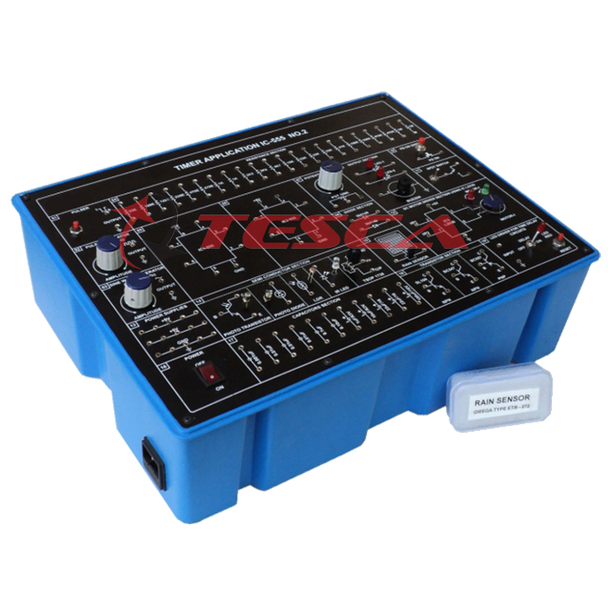

36369 Experimental Training Board has been designed specifically for the study of various Applications of the Timer IC 555.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object

1. To Study Pulse Generator using IC-555.
2. To Study Timer using IC-555.
3. To Study Sequential Timer using IC-555.
4. To Study Pulse Width Modulator (PWM) using IC-555.
5. To Study Time Delay Circuits using IC-555.
6. To Study Burglar Alarm Using Timer IC-555 & Breaking of wire and LDR.
7. To Study Burglar Alarm Using Timer IC-555 Breaking of Wire & Photo Transistor
8. To Study Burglar Alarm Using Timer IC-555 breaking of wire and Photo Diode.
9. To Study Light/Dark Detection Using Timer IC-555 & LDR.
10. To Study Rain Alarm Using Timer IC-555 & Rain Sensor.
11. To Study DC Motor Control By PWM Using Timer IC-555 & Motor Driver IC L293D.
12. To Study LED Flasher Circuit Using Timer IC-555.
13. To Study Analog Light wave Transmitter/ Receiver Using Timer IC-555, IR LED & TSOP1738 .

Features
The board consists of the following built-in parts :

1. Pulser capable of generating a negative going pulse.
2. Pulse Generator with frequency of 2 KHz ± 10%.
3. Sine Wave Generator with frequency of 100 Hz ± 10%.
4. 5 & 9V D.C. at 100 mA, IC Regulated Power Supply internally connected.
5. LED driver circuit for time delay circuit.
6. DC Motor with IC L293D Motor Driver.
7. Two Timer IC'S 555.
8. Resistor Section containing 22 Resistors of different values and one Potentiometer.
9. Capacitors Section containing 11 Capacitors of different values.
10. Semiconductor Section that contains Phototransistor, Photodiode, LDR, IR LED, Two LED'S, TOSP-1738, Rain Sensor, Two Diode & Three Transistors.
11. Buzzer, Push Button Switch and SPDT Switch.
12. Mains ON/OFF switch, Fuse and Jewel light.
13. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
14. Weight : 3.800 Kg
15. Dimension : W 415 x H 165 x D315
