Single Phase Transformer Trainer - Order Code 36208
(No reviews yet)
Write a Review
- SKU:
- 36208
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Order Code: 36208
Name: Single Phase Transformer Trainer
SPECIFICATION

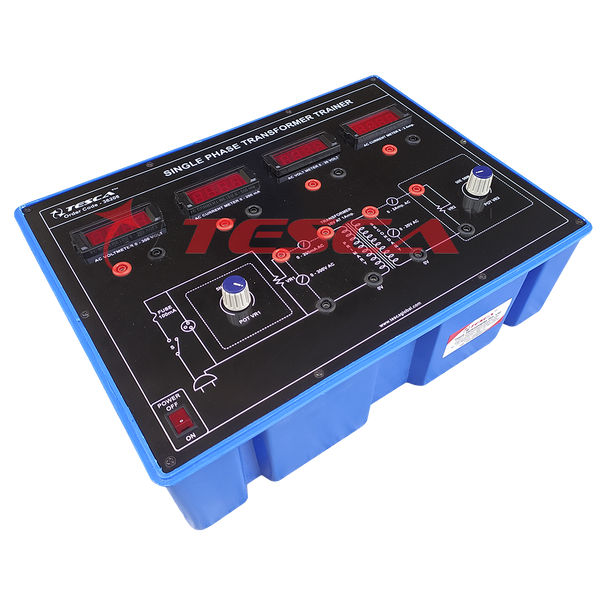

Experimental Training Board has been designed specifically for the study of a Transformer. Various measurements can be easily done on a transformer. The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
To Study transformer for the following :
01. Transformation Ratio.
02. Copper loss.
03. The efficiency of transformer.
Features:
The board consists of following built-in parts :
01. Mains transformer with primary 230V at 50Hz and secondary output 0-10VA.C. at 1 Amp.
02. A.C./D.C. Voltmeter, 65mm round dial, for measuring the mains input to the transformer of 0-250V.
03. A.C./D.C. Milliammeter, 65mm round dial, for measuring the primary circuit current of 0-100mA.
04. A.C./D.C. Voltmeter, 65mm round dial, for measuring the secondary voltage of 0-15V.
05. A.C./D.C. Ammeter, 65mm round dial, for measuring the secondary circuit current of 0-1 Amp.
06. High Wattage rating potentiometer for transformer’s primary voltage variations.
07. High Wattage rating potentiometer to be used as a load for the secondary circuit.
08. Adequate no. of other electronic components.
09. Mains ON/OFF switch, Fuse and Jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
To Study transformer for the following :
01. Transformation Ratio.
02. Copper loss.
03. The efficiency of transformer.
Features:
The board consists of following built-in parts :
01. Mains transformer with primary 230V at 50Hz and secondary output 0-10VA.C. at 1 Amp.
02. A.C./D.C. Voltmeter, 65mm round dial, for measuring the mains input to the transformer of 0-250V.
03. A.C./D.C. Milliammeter, 65mm round dial, for measuring the primary circuit current of 0-100mA.
04. A.C./D.C. Voltmeter, 65mm round dial, for measuring the secondary voltage of 0-15V.
05. A.C./D.C. Ammeter, 65mm round dial, for measuring the secondary circuit current of 0-1 Amp.
06. High Wattage rating potentiometer for transformer’s primary voltage variations.
07. High Wattage rating potentiometer to be used as a load for the secondary circuit.
08. Adequate no. of other electronic components.
09. Mains ON/OFF switch, Fuse and Jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
