Puckle`s Sweep Generator with power supply - Order Code 36136

(No reviews yet) Write a Review

SKU:: 36136
UPC:
MPN:
Shipping:: Calculated at Checkout

$0.00

Current Stock:

Quantity:

Frequently bought together:

Description
0 Reviews

Description

Order Code: 36136
Name: Puckle`s Sweep Generator with power supply

SPECIFICATION

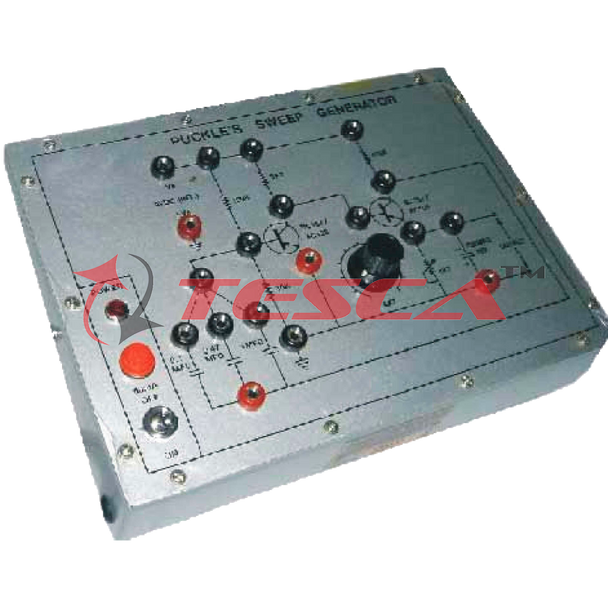

Experimental Training Board has been designed specifically for the study of the Puckle’s Sweep Generator.
Practical experience on these boards carries great educative value for Science and Engineering Students.

Object:
To study Puckle’s Sweep Generator for :

Amplitude variation of the output waveform.
Frequency variation of the output waveform.
Linearity of the output waveform.

Features:
The board consists of the following built-in parts :

9V D.C. at 50mA, IC regulated Power Supply internally connected.
Two transistors.
Mains ON/OFF switch, Fuse and Jewel light.
The unit is operative on 230V ±10% at 50Hz A.C. Mains.
Adequate no. of other electronic components.
Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms.
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
Weight : 3 Kg. (Approx.)
Dimension : W 340 x H 110 D 210
