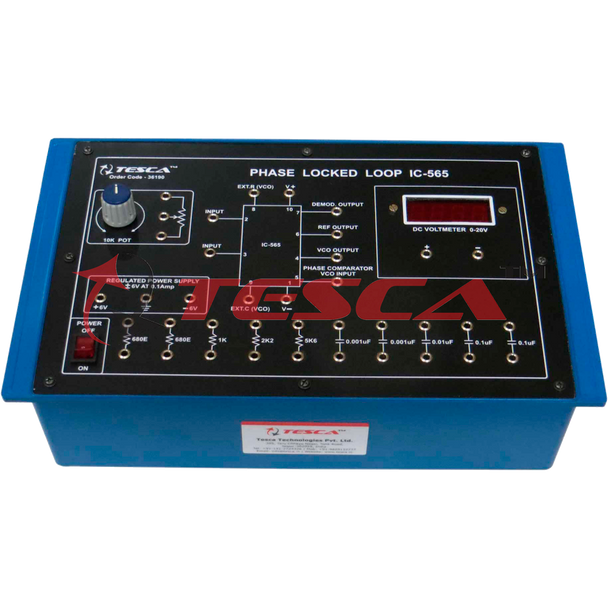

Phase Locked Loop IC 565 with power supply and 1 meters - Order Code 36190

(No reviews yet) Write a Review

SKU:: 36190
UPC:
MPN:
Shipping:: Calculated at Checkout

KES0.00

Current Stock:

Quantity:

Frequently bought together:

Description
0 Reviews

Description

Order Code: 36190
Name: Phase Locked Loop IC 565 with power supply and 1 meters

SPECIFICATION

Experimental Training Board has been designed specifically for the study of Phase Locked Loop (PLL) IC 565. This training board covers most of the important parameters, characteristics and applications on Phase-locked Loop (PLL) IC 565.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:
To measure important parameters of Phase Locked Loop (PLL) IC 565 :
VCO Characteristics :

To study and measure the free running frequency or centre frequency of VCO.
To study the VCO sensitivity
To study the VCO linearity PLL Characteristics :
To study and measure the capture range and lock range.

PLL Applications :

Frequency synthesis
F.M. De-modulation
A.M. De-modulation

Features:
The board consists of following built-in parts:

± 6V D.C. at 100mA, IC regulated Power Supply.
D.C. Voltmeter, 65mm rectangular dial, with switch selectable of ranges 1V and 10V.
Phase locked loop IC-565
Two sets of three inter connected sockets for multi-connections wherever required.
Adequate no. of other electronic components.
Mains ON/OFF switch, Fuse and Jewel light.
The unit is operative on 230V ±10% at 50Hz A.C. Mains.
Adequate no. of patch cords stackable from rear both ends 2mm spring loaded plug length ½ metre.
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections & observation of waveforms.
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
