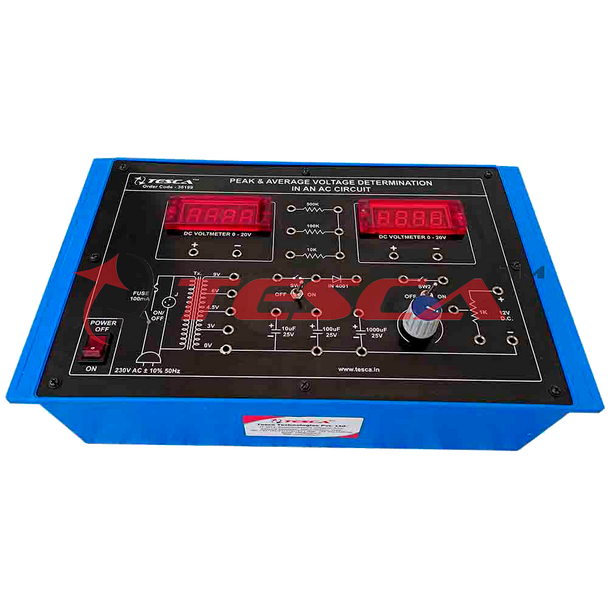

Peak & Average voltage Determination in an A.C. Circuit with power supply and 2 meters - Order Code 36199

SPECIFICATION

02. To determine the peak value of A.C. by null deflection method.

Features:
The unit consists of the following built-in parts:
01. 12V D.C. at 10mA, IC regulated Power Supply.
02. Mains step down transformer having secondary tapping 3V, 4.5V, 6V and 9VA.C. at 10mA.
03. A.C. / D.C. Voltmeter, 65mm rectangular dial, with A.C. and D.C. switch selectable range of 0-15V.
04. D.C. Voltmeter, 65mm rectangular dial to read 0-15V.
05. Two SPST switches, potentiometer and a diode.
06. Adequate no. of other electronic components.
07. Mains ON/OFF switch, Fuse and Jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Adequate no. of patch cords stackable from rear both ends 4 mm spring loaded plug length ½ metre.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
