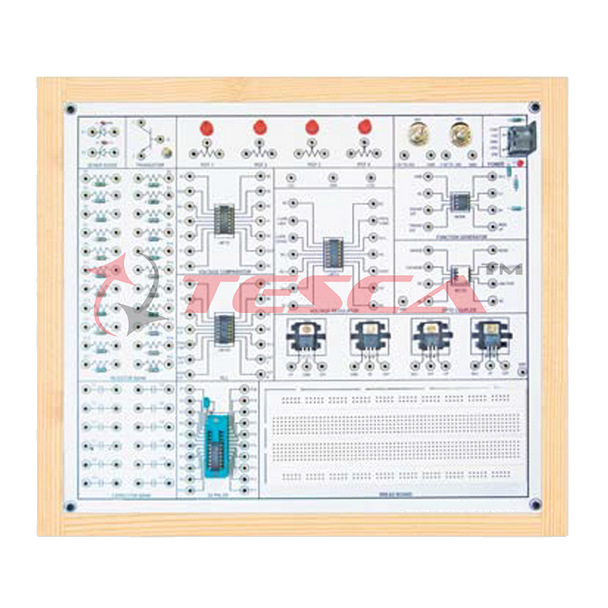

Linear IC Trainer - Order Code 36356

SPECIFICATION

• Covers wide range of analog applications using monolithic ICs such as op-amp (LM710), PLL (NE565), function generator (NE566), opto-coupler (MCT2E) and regulators (Lm723, 7805, 7905, LM317 and LM337)
• On-board resources such as resistor, capacitor, diode and potentiometer banks of different values are provided
• Bread board area allows construction of circuits using external componentsalong with on-board resources

On-boardlinear ICs

• High speed comparator IC-710
• Function generator IC-566
• Phase locked loop IC NE-565
• Fixed voltage regulator 7805, 7905
• Variable voltage regulator IC-317,337 and 723
• Opto-coupler MCT2E

On board interfaces

• Dual 0~20V on board power supply
• All Interconnections are made using 2mm patch cords
• Resistor bank
• Capacitor bank
• Diodes
• IC socket
• LEDs
• Potentiometers
• ZIF socket
• Bread board

Experiments
Using high speed comparator IC-710

• Study the parameters of LM 710
• To measure slew rate
• To measure CMRR

Function generator IC-566

• To study the linearity and accuracy of the output waveforms

Phase locked loop IC NE-565

• Measurement of centre frequency Fc
• To study VCO linearity and sensitivity
• Measurement of capture range and lock range
• PLL as a multiplier
• Many more
