Description
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|

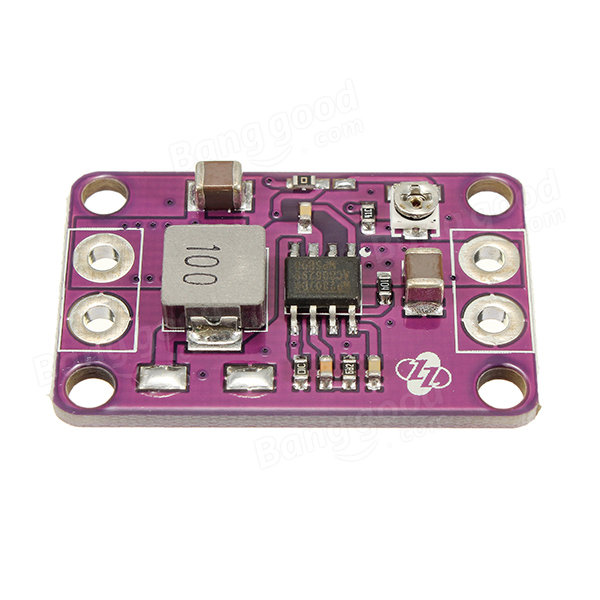

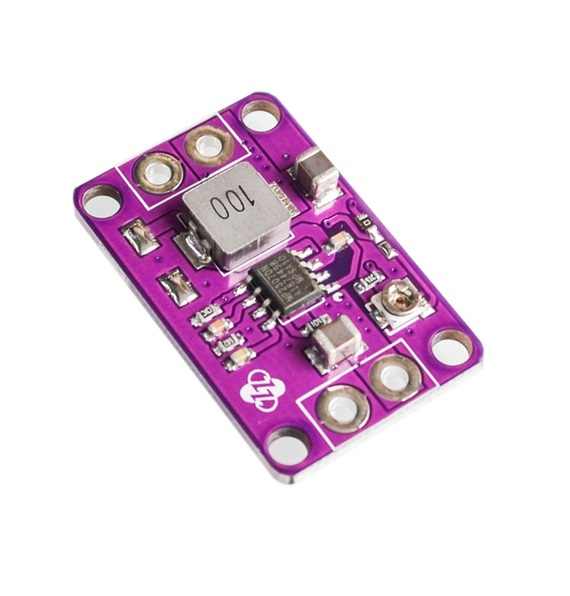

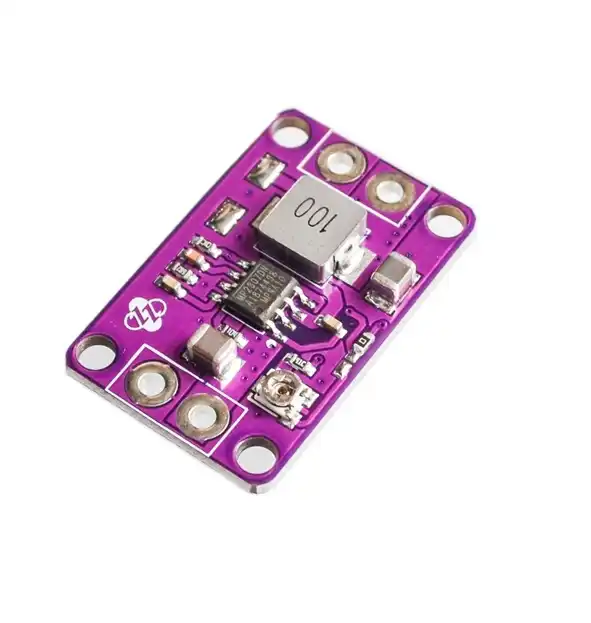

| Product Name | MP2307 DC-DC Synchronous Buck Converter Module |
| Module Type | Non-Isolated Step-Down (Buck) Converter |
| Core Chip | MP2307 |
| Input Voltage Range | 4.75V – 23V DC |
| Output Voltage Range | 0.925V – 20V DC (Adjustable) |
| Output Current | 3A Continuous, 4A Peak |
| Integrated Switches | 100mΩ MOSFETs |
| Conversion Efficiency | Up to 95% |
| Switching Frequency | 340 kHz (Fixed) |
| Control Mode | Current mode control |
| Soft Start Function | Programmable soft-start (reduces inrush current) |
| Protection Features | Cycle-by-cycle overcurrent protection, input undervoltage lockout |
| No-Load Current | < 1µA in shutdown mode |
| Output Stability | Stable with low ESR ceramic capacitors |
| Thermal Design | Thermally enhanced 8-pin SOIC package |
| Efficiency Design | High-efficiency synchronous rectification |
| Module Functionality | Compact high-efficiency voltage step-down regulator |
| Application | Distributed power systems, networking devices, FPGA/DSP/ASIC power supply, laptops, consumer electronics, green appliances |
| Key Feature | High-efficiency compact buck regulator with fast transient response |
Package Includes:
1 x MP2307 3A / 23V 340KHz Synchronous Rectifier
