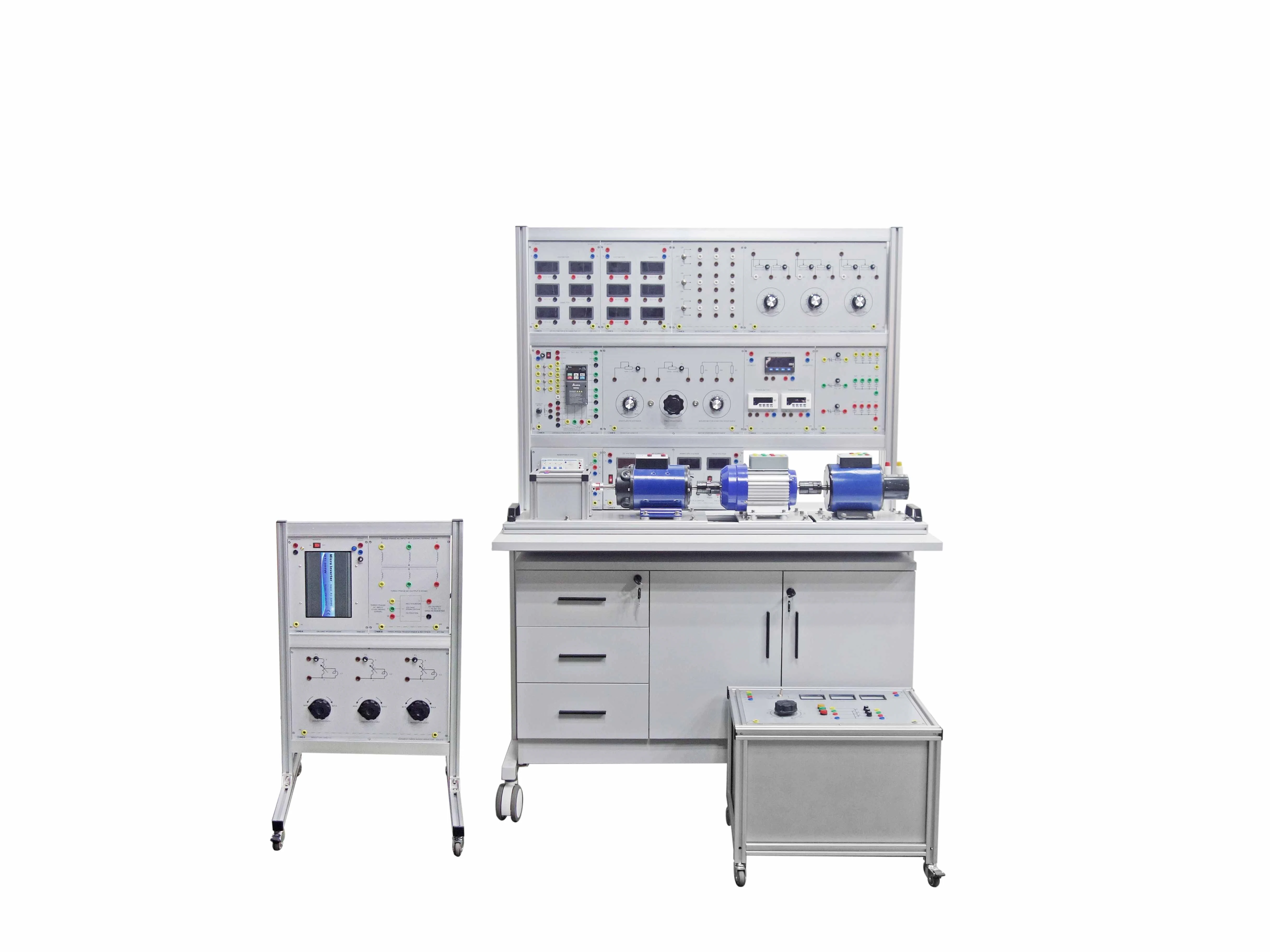

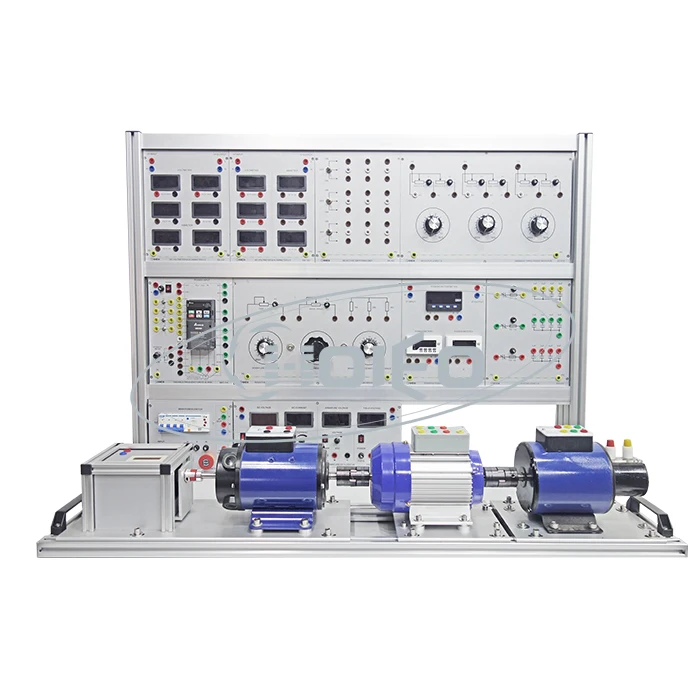

Three Phase Synchronous Motor And Generator Grid Parallel Operation Trainer

DESCRIPTION

This trainer is designed to meet the operation training of various electric machines, covering a wide range for electrical machine control technologies for both DC and AC motor and generator.

• By using micro type on-grid inverter together with variable frequency drive (VFD) to achieve safe parallel connection of synchronous generator to power grid. R-L-C loads are adopted for comprehensive motor control.
• The frame adopts standard aluminum profile with modular experiment panel design, thus, making it easily to build different experiment combination on the flexible two-layer structure. All the upper parts are removable including the experiment module, power supply module and frame support.
• All terminals are led out on printed composite panel with 4mm safety socket and connected by full sealing sheathed pluggable connector. The complete unit is movable with lockable truckles on bottom and available for training content extension by using other CHOIEO modular electrical units.

Teaching Contents

• Run a synchronous motor by adding an external resistor to the motor
•  Determine the "v" curve for current If as a function of speed at a constant speed (n)
•  Determine the clamping voltage Vt as a function of the excitation current (If) at constant speed (n)
• Determine the clamping voltage Vt as a function of motor speed (n) at constant excitation current If
• Determine the clamping voltage Vt as a function of load current IL at speed (n) and constant excitation current (If)
• Effect of an R-C load on terminal voltage Vt, power, and power factor under constant motor speed (n) and constant excitation current (If).
• Effect of an R-L-C load on terminal voltage Vt, power, and power factor under constant motor speed (n) and constant excitation current (If)
• Synchronized control

1. Mobile aluminium storage stand	2. Mobile aluminium experiment stand
3. EDY-101 Three phase power supply	4. EDY-002 Moveable three phase voltage regulator
5. EDY-102 Integrated DC power supply	6. EB-120 AC voltmeter & AC ammeter 2.0
7. EB-220 DC Voltmeter & DC Ammeter 2.0	8. EB-310 Power & Power factor meter 1.0
9. EK-001 Selective switching unit	10. BMT-104 Variable frequency drive (0.4KW)
11. XNB-203 On-grid inverter 300W	12. ET-302 Three phase transformer & Rectifier
13. ER-010 Capacitive load 1.0	14. EZ-010 Resistive load 1.0
15. EZ-030 Resistive load 3.0	16. EG-010 Inductive load 1.0
17. Motor driven mechanism with speed measuring system	18. Accessories

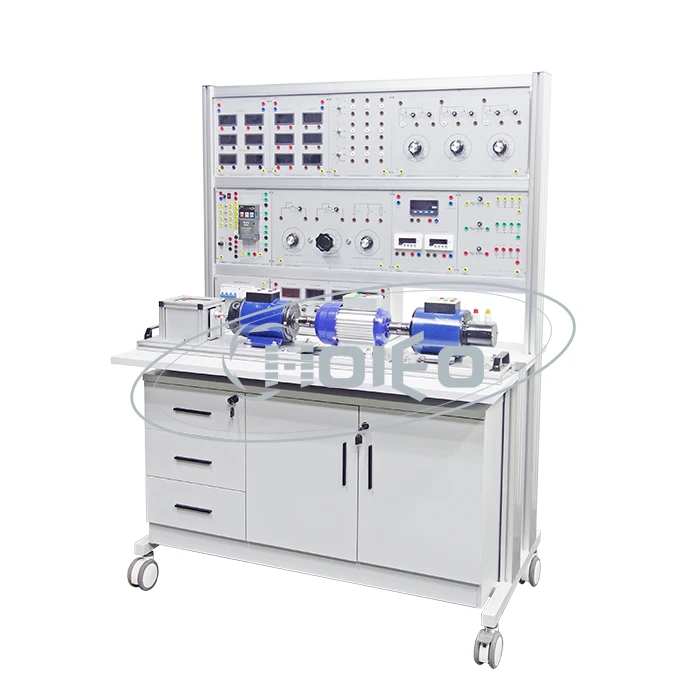

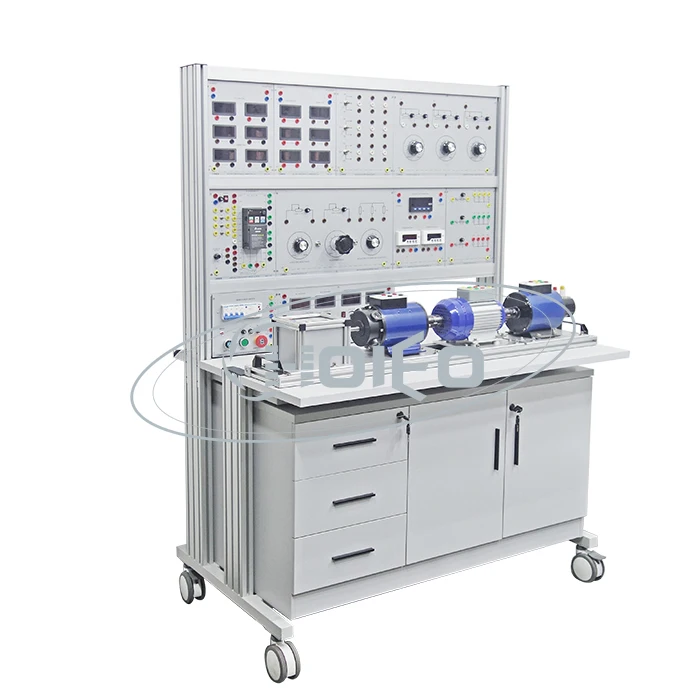

Mobile aluminium experiment stand

- High compressed chipboard tabletop & baseplate

- Solid impact-resistant protective edging

- Table & upper frame part separable for easy delivery - Storage cabinet with two doors, three-layer drawer

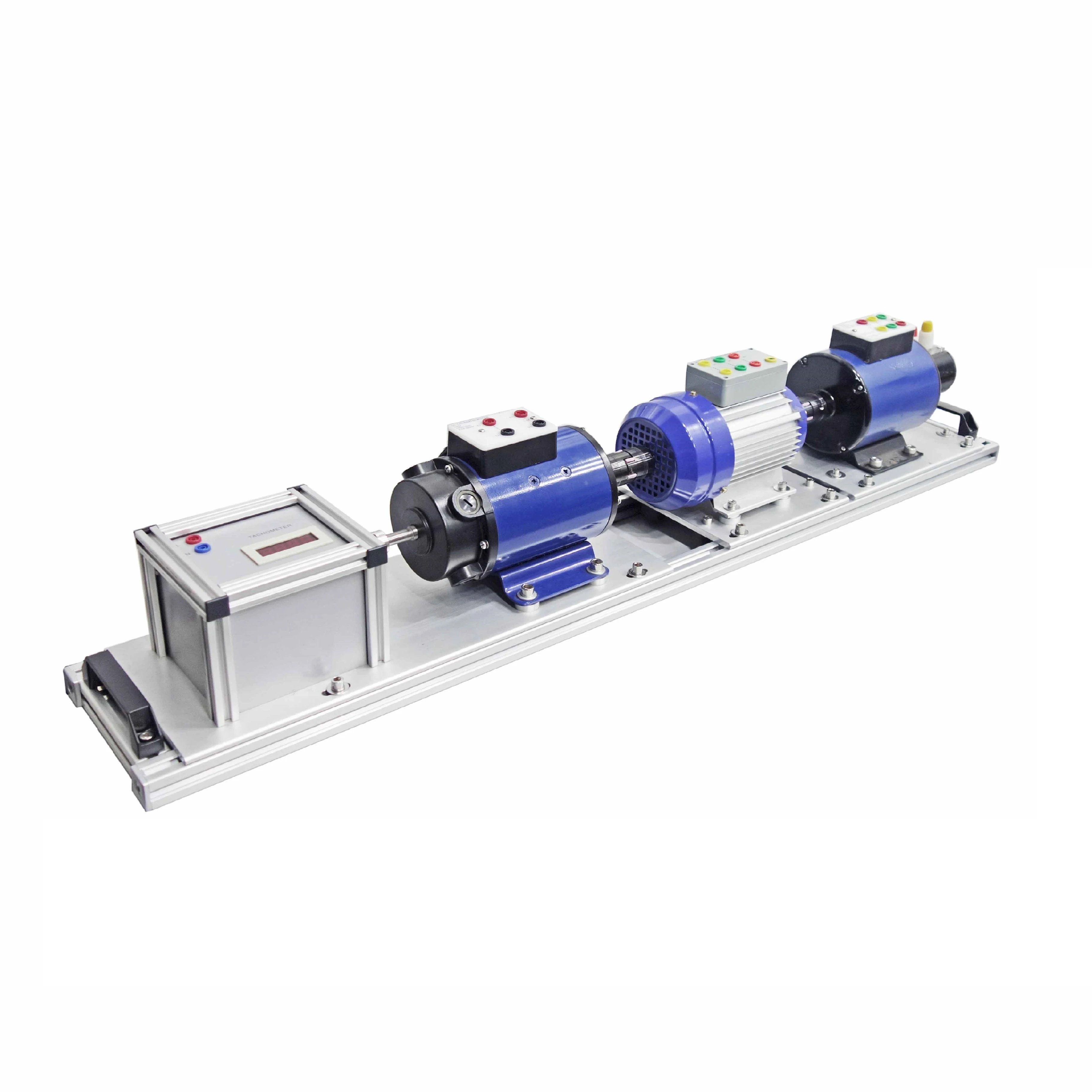

Motor driven mechanism with speed measuring system

- DC separately excited motor

- Three phase asynchronous motor

- Three phase synchronous motor / generator

- Digital Tachometer module

- Optical encoder with coupler

- Universal aluminium profile mounting base

Accessories

- Shaft couplings for each motor

- Safety whole sealing cable:

- Experiment guidebook

- Wiring instruction maps
