CEW-201 Mobile Electrical Installation Trainer

Description

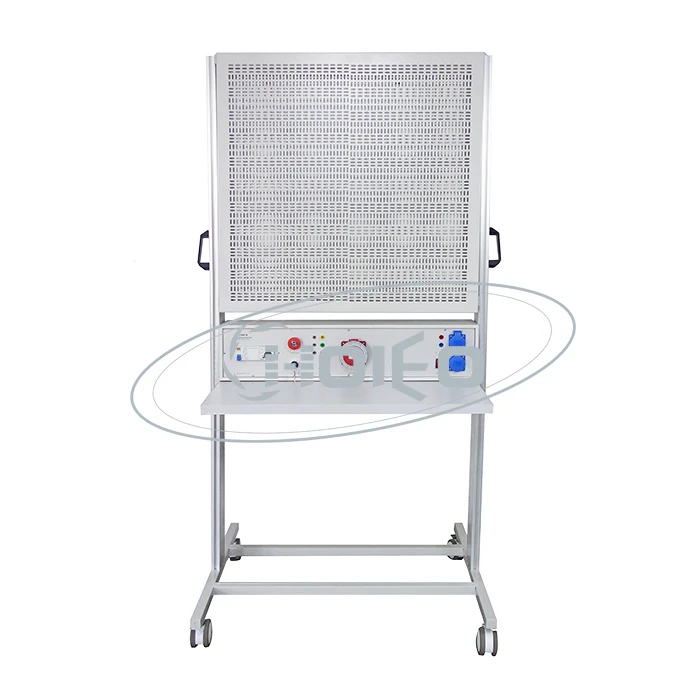

• This is a mobile type electrical installation training system, with detachable grid wall and independent power control unit on both sides, making it suitable for two students to operate on it at the same time.

• Perforated grid wall of powder coated sheet steel is used for the flexible electrical installation, student can select proper components to carry out the electrical arrangement and finish the wiring themselves according to the training requests.

• The complete structure is movable with lockable truckles on bottom and handles on side columns, the upper frame and tabletop are separable, as well as the power control cabinet.

• CEE socket, 4mm insulated terminal and waterproof socket are adopted for the safe connection of power supply system. Thanks to the universal and open structure, this platform can be used for a variety training contents of installation technology using different experiment components and parts.

• Electrician wiring and installation practical training

• Three phase asynchronous motor control

- Direct starting - Reduced voltage starting

- Contactor inching / self-locking

- Star/Delta automatic control

- Forward and reverse

- Contactor / Button / Double interlocking control

- Remote and local control

- Sequential control

- Automatic round trip control

- Dynamic braking control

• Incandescent lamp control circuit

• Fluorescent lamp control circuit

• Touch switch and voice operated switch control circuit

• Installation of single / three phase electricity meter

• Current transformer application circuit
