Description
Item name: X220 220mm frame kit
Wheelbase: 220mm
Arm plate thickness: 4mm
​Upper plate: 1.5mm
Main material: carbon fiber
Weight: 138.4g
Factory default firmware: betaflight_3.2.0_OMNIBUSF4SD
F3 Flight Control F4 PDB STM32 Integrated OSD 5V BEC Flight Controller
This is a use of STM32F405 with MPU6000 mainstream FPV small chassis with flight control, input voltage 2S-6S, BEC-5V output comes with 3A current, to support the market mainstream PPM, SBUS, IBUS, DSM2 / DSMX and so on machine. LED_STRIP interface, active buzzer interface. Integrated OSD function, support OSD parameters, support for the latest DSHOT ESC.
Sensor: MPU6000
Receiver: Support PPM, SBUS, IBUS, DSM2 / DSMX and so on
Active buzzer interface
No black box
Built-in ammeter, current detection
OSD interface
Comes with BEC 5V 3A
Overall dimensions 42 * 36MM (including wire bonding pad length)
Screw hole spacing 30.5 * 30.5MM
Diameter 4.1MM
Weight 9.3 grams
Product Features
latest BLHELI_S program
special driver chip to make the response speed is very fast
The chip EFM8BB21F16, frequencies up to 48MHz
support Oneshot125, Oneshot42, Multshot, Damped Light
Technical Parameters:
Continuous current: 30A
Instantaneous current (10 seconds): 35A
BEC Output: None
Input voltage: 2-6S Lipo
Program: BLHELI-S
Item Name: FS-i6 transmitter
Channel: 6
Model Type: fixed wing/helicopter/glider
Channel resolution: 1024 steps
Low voltage warning: less than 4.2v
ANT length: 26 x 2mm( dual antenna)
Weight: 392g
Battery: 6v 1.5AA x 4(not included)e
Size: 174 x 89 x 190 mm
Color: black
Certificate: CE ,FCC
RF Range: 2.405 - 2.475GHz
Bandwidth: 500khz
RF Power: less than 20dBm
RF mode: AFHDS 2A
Modulation type: GFSK
RX Sensibility: -105dBm
Receiver specification:
Channel: 6
Model type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 6.4g
Antenna lenght: 26mm
Size: 40.4 x 21.1 x 7.35 mm
Certificate: CE ,FCC
Features:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm. Silm design on transmitter for easy handling!
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

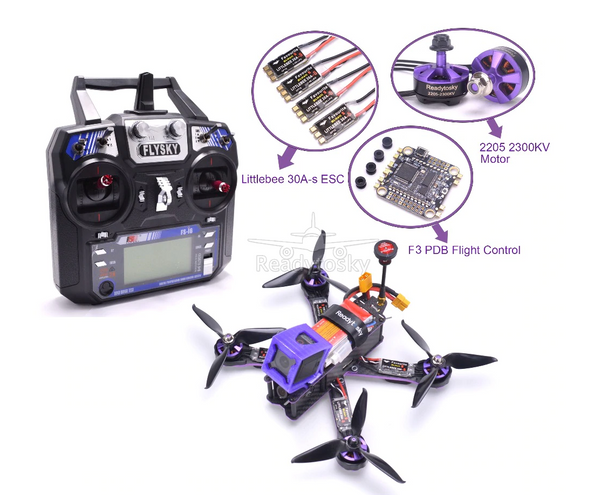

1 X 220mm Carbon Fiber Frame kit (unassembled)
1 x FS-i6 transmitter with FS-iA6 Receiver and Manual (send as your choice)
1 x F3 Acro flight controller
4 x Littlebee 30A BLHeli-s ESC
4 x 2205 2300kv motor with motor cover
1x TS5828L transmitter 48 CH
1x pagoda antenna
1x 700TVL camera
1 x XT60 connector with silicone cable
1 x battery belt
4pair x 5045 purple 3-blade propeller
