Description
Brand Name: Reptile
Item Name: S800 V2 SKY SHADOW
Material: EPP foam
Color: Grey
Wingspan: 820mm
Length: 405mm
CG:125mm behine the nose
Motor: 2205 2300KV Brushless
ESC: 30A
Servo: 9g*2
Propeller: 6045
Skill Level: Intermediate
Age: 14+
Weight:170g(Without electronic equipment)
Specification of Camera:
Case Size: 25mm*25mm
Weight: 9.5g
Total Pixels: PAL - 1020H * 596V (610 thousand images), NTSC - 1020H * 508V (520 thousand images)
Active Pixels: PAL - 976H * 582V (570 thousand images), NTSC - 976H * 494V (480 thousand images)
Signal System: PAL/NTSC
Resolution (horizontal center): 700TVL
Video Output Amplitude: 1.0Vp-p/75
Automatic Gain Control: 0.25/0.50/0.75/1.00
Electronic Shutter: 1/50 (1/60) - 1/100000 seconds
Gamma Correction: 0.45/1.0
Synchronous Mode: Internal synchronization
Lens: Standard 2.8mm lens
Operating Voltage: DC12V (wide voltage, 5V-12V can work normally)
Operating Current: 70mA
Operating Temperature: -20 DEG C, --60 DEG C
Humidity: 0% ~ 98%
Features:
Upgraded V2 version,with improved fuselage material hardness.

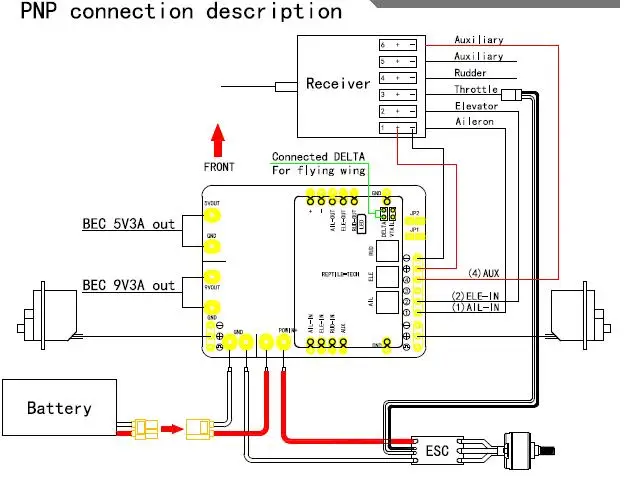

Using the new custom flight control, lighter weight, power board wiring more convenient.
Built-in 5V/3A and 9V/3A two power output, filter the current clutter, eliminating the video signal clutter interference.
High quality, fine workmanship
Streamlined design, high speed and low wind resistance
Anti-shock,anti-impact,stable flight
Recommended Parts for Harrier-S800 (Not Included):
FPV camera: Runcam/1177/1190, Click Here
Video Transmitter: 5.8G 200mw - 600mw, Click Here
Battery: Max 3S 11.1V 1800mAh Lipo
Charger: Balance Charger, Click Here
Radio: 2.4G 4CH with elevon mixing, Click Here
Video Transmitter: 5.8G 200mw - 600mw, Click Here
Battery: Max 3S 11.1V 1800mAh Lipo
Charger: Balance Charger, Click Here
Radio: 2.4G 4CH with elevon mixing, Click Here
Note:
This is the PNP version,not include the transmitter,receiver,battery,charger and fpv camera.
The decal is grey,NOT red as pictures show.
Package Included:
2 x Wings
1 x Fuselage
2 x Small Wing Tips
1 x Nose Block
1 x Main Hatch Cover
2 x Servos
1 x 3-Axis Flight Control
1 x Flight Control Circuit Board Base
1 x 2205 Motor 2300KV
2 x 6045 Propellers
1 x 700TVL Camera
1 x 200mW AV Transmitter
1 x 20A ESC
1 x Sticker
1 x User Manual
1 x Fuselage
2 x Small Wing Tips
1 x Nose Block
1 x Main Hatch Cover
2 x Servos
1 x 3-Axis Flight Control
1 x Flight Control Circuit Board Base
1 x 2205 Motor 2300KV
2 x 6045 Propellers
1 x 700TVL Camera
1 x 200mW AV Transmitter
1 x 20A ESC
1 x Sticker
1 x User Manual
