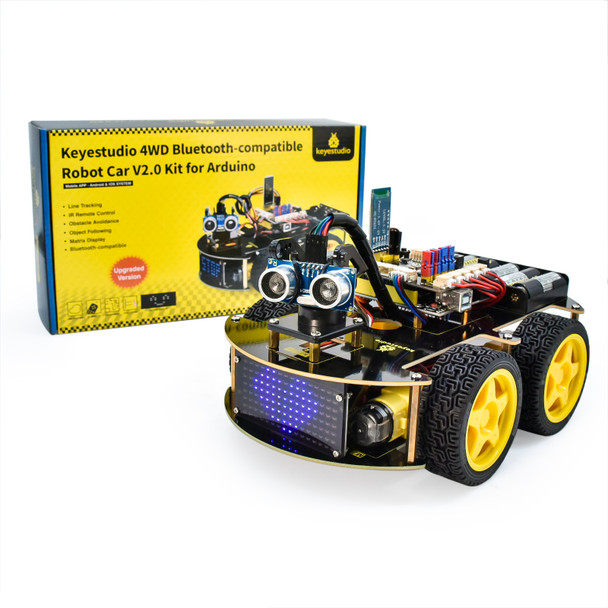

Arduino 4WD Robotics STEM Learning Kit

(No reviews yet) Write a Review
SKU:
STEM55
Weight:
1.20 KGS
Shipping:
Calculated at Checkout
  • Arduino 4WD Robotics STEM Learning Kit
  • Arduino 4WD Robotics STEM Learning Kit
  • Arduino 4WD Robotics STEM Learning Kit
KES9,000.00

Description

Descriptions:
This is a funny smart car kit for Arduino, it aims to disengage users from boring theories and obtain capacity of system development.
By learning to program and assemble the robot car, you can finish a variety of interesting experiments, come and take one home!

Features at a glance:
- It is a learning application development system based on microcontroller, which can extend an external circuit module to increase more functions of this car
- It has functions of line tracking, obstacle avoidance, IR remote control, Bluetooth remote control, and detecting distance
- You can choose L298N driver module as control motor, separate from microcontrollor, IR remote control module can make up a remote control system of the car
- The 3-line tracking module has higher precision in detecting white and black lines, which can realize anti-falling, also you can use the ultrasonic module to realize obstacle avoidance
- It can pair your phone's Bluetooth with Bluetooth remote control module to control the car, also equipped with various sensors to complete different functions as much as possible

Project 1: Line Tracking Sensor

Project 2: Ultrasonic sensor

Project 3: Infrared Digital Receiver Unit

Project 4: Booster Engine

Project 5: Bluetooth Module

Project 6: L298N motor driver

Project 7: I2C 1602 LCD

Project 8: Tracking the Smart Car Line

Project 9: Avoid the smart car obstacle

Project 10: Infrared Remote Control for Smart Car

Project 11: Smart Car Remote Detection

Project 12: Bluetooth Smart Car Remote Control

Project 13: 5 in 1 multifunction vehicle

List component:

  1. Keyestudio UNO R3 * 1
  2. Keyestudio Shield V5 * 1
  3. Keyestudio L298N Motor Shield * 1
  4. Keyestudio Bluetooth HC-06 * 1
  5. I2C 1602 LCD * 1
  6. SR01 Ultrasonic sensor * 1
  7. Keyestudio line tracking sensor * 3
  8. Keyestudio Digital Infrared Receiver Module 1
  9. 4WD best PCB * 1
  10. 4WD down PCB * 1
  11. Booster engine * 1
  12. Servo plastic platform * 1
  13. Remote controller * 1
  14. Toggle switch * 1
  15. 18650 battery pack * 1
  16. Motor fixed part (23 * 15 * 5mm) * 4
  17. Wheel * 4
  18. M3 * 40mm copper column * 6
  19. M3 * 10mm copper column * 16
  20. M3 * 30mm round head screw * 8
  21. M3 * 6mm round head screw * 60
  22. M3 * 6mm screw with flat head * 2
  23. M3 nut * 16
  24. USB cable (1m) * 1
  25. Dupont wire (female to female) * 30
  26. Black wire (150mm) * 6
  27. Red wire (150mm) * 6
  28. Pipe winding * 1
  29. TT Motor 130 (70 * 37 * 22mm) * 4
  30. Assembly belt (3 * 100mm black) * 10
  31. Screwdriver (3 * 40mm) * 1
  32. Tapping screw (M1.2x5MM) * 6
  33. User Manual * 1


Parameters:
- Motor voltage: 6 - 9V
- Reduction ratio: 1:48

Resources

Video:
http://www.keyestudio.com/wp/2016/11/ks0192-keyestudio-4wd-bluetooth-multi-functional-car-assembly-video-2/
http://www.keyestudio.com/wp/2016/11/ks0192-keyestudio-4wd-bluetooth-multi-functional-car-demonstration-video/
PDF:
https://drive.google.com/open?id=1f8nBJCIeON1Bjr4fEU3B1QGvYQa0bg-O
APP:
https://drive.google.com/open?id=19CRygKifT-0FIFU78DFn2XRGz0atxMWe
Codes:
https://drive.google.com/open?id=1Azrqy0uBILycGlOiknPNMHXu1Ser2_Dk
Libraries:
https://drive.google.com/open?id=15KOCyLn3Wwo-KlCck6hYmm4uiKh0MGrW
