Highlight:

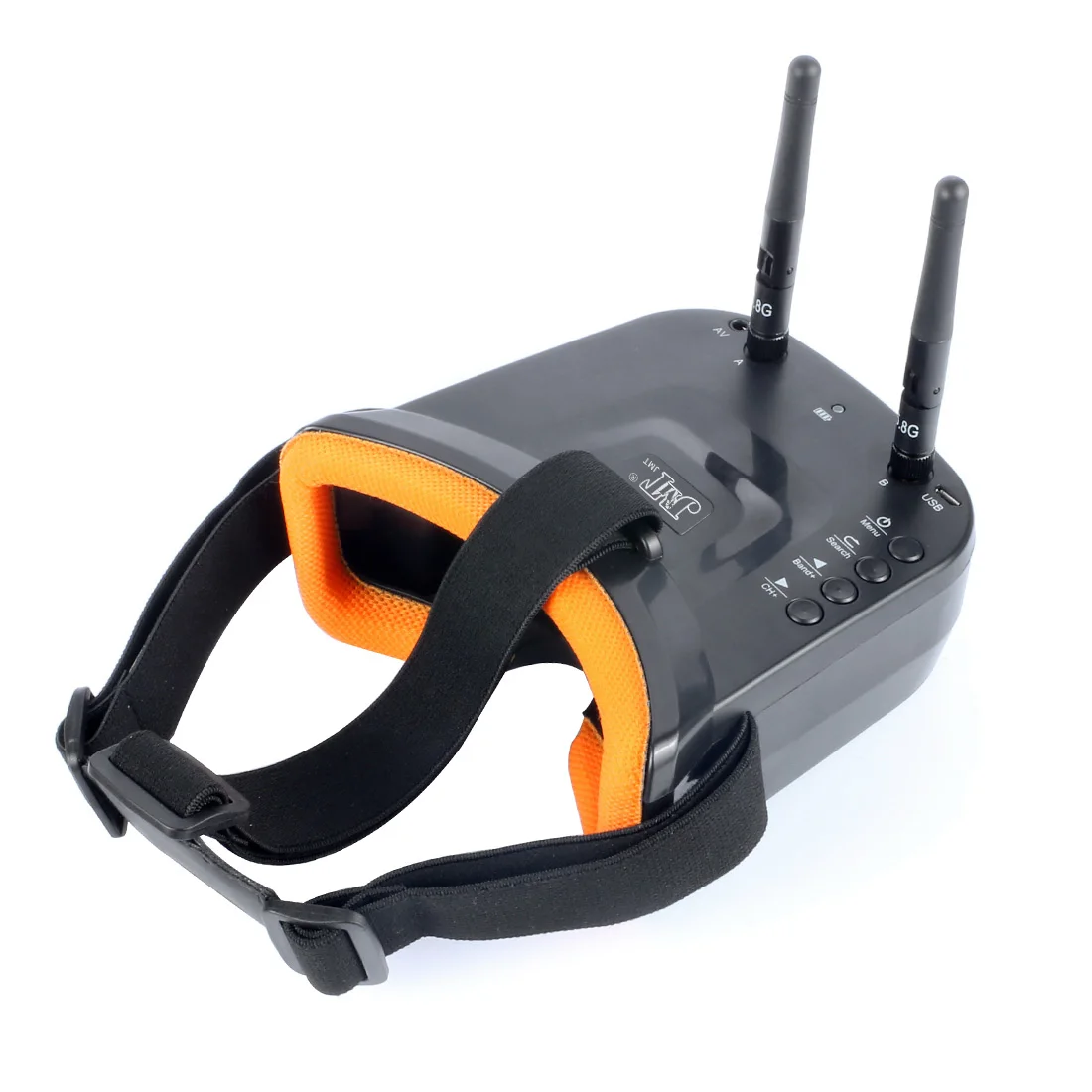

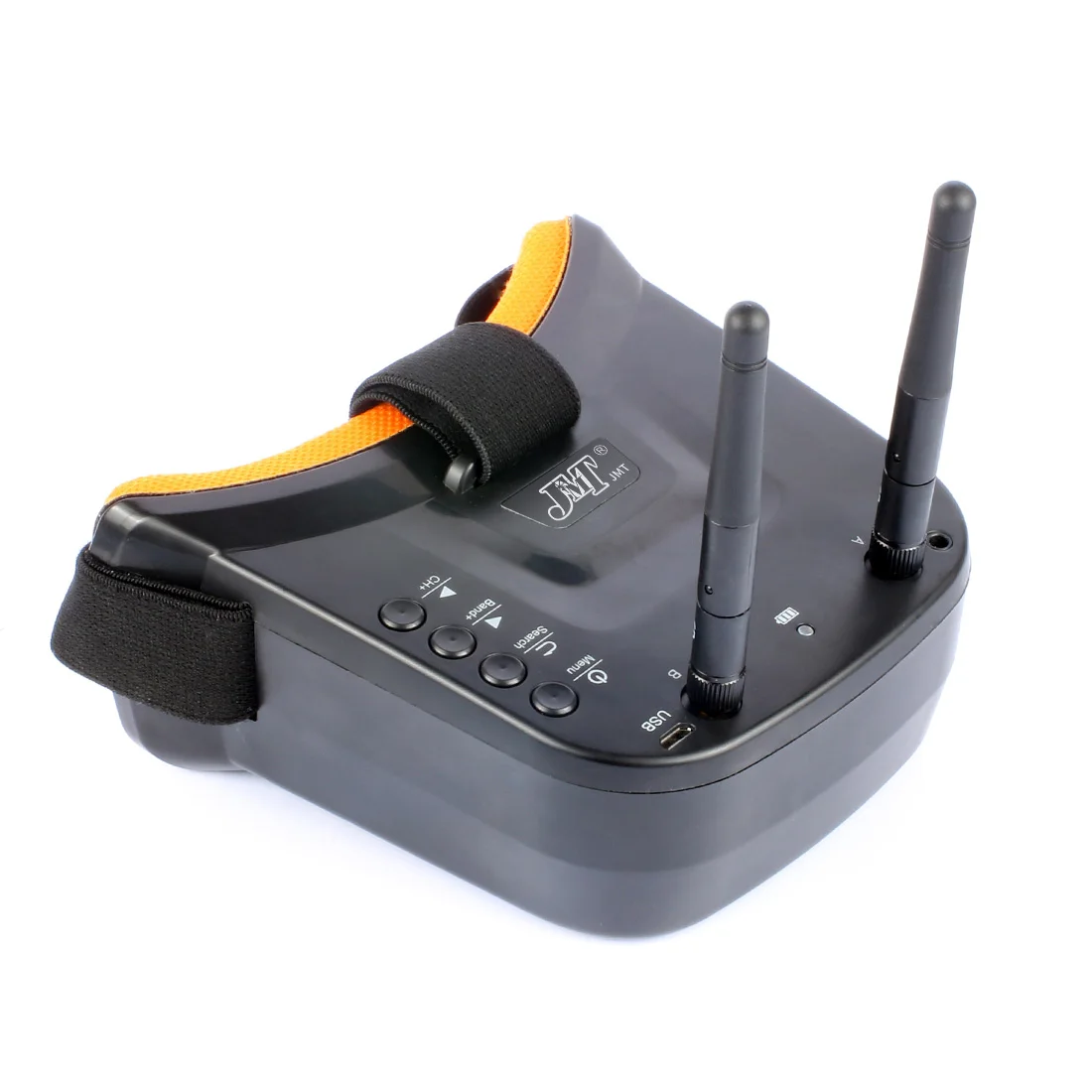

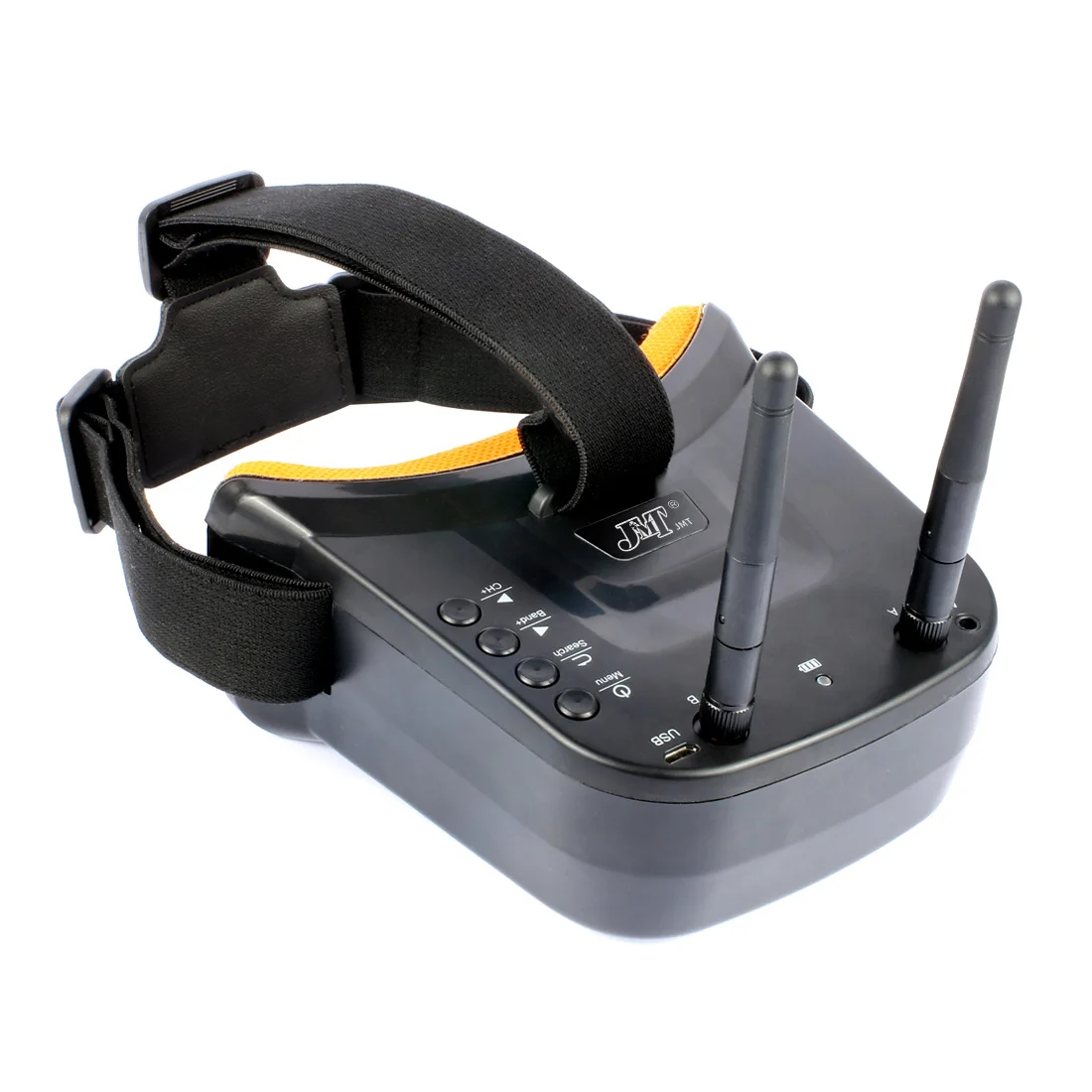

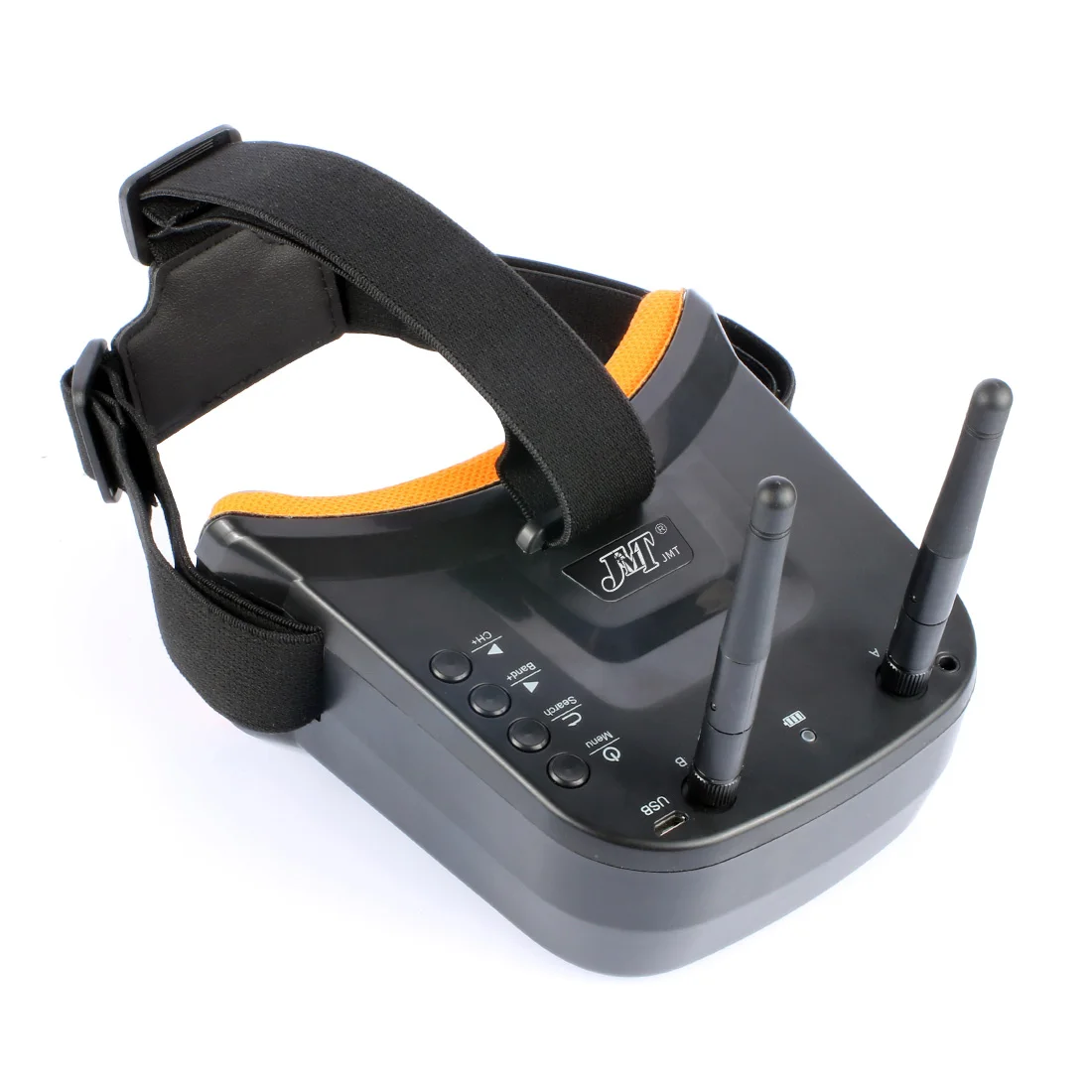

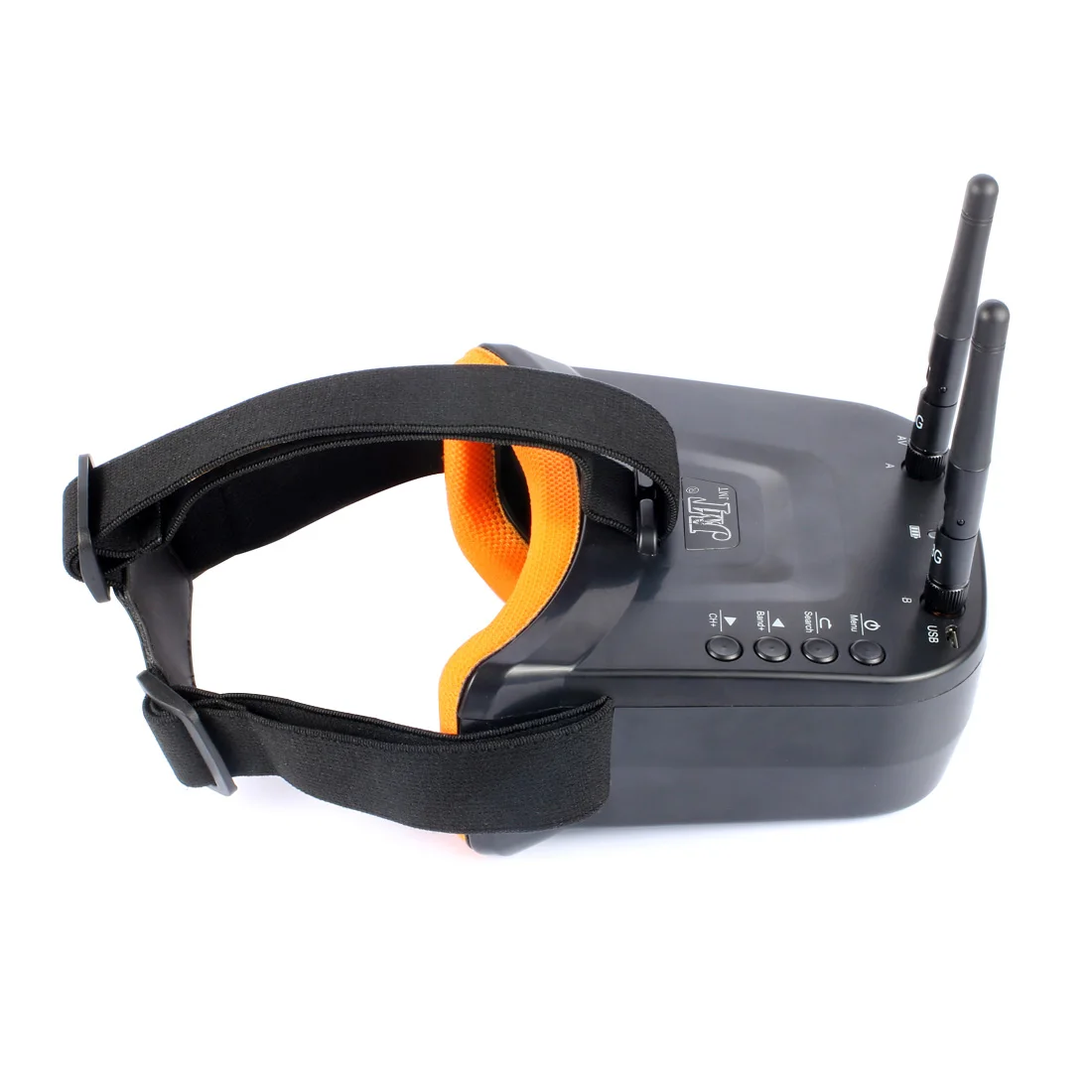

Double Antennas
Built-in 3.7V 1200mAh Battery
Support a key search frequency
RaceBand 40 channel Auto-Searching
Real-time video return 5.8G FPV Receiver
Feature:
● Small size and light weight;
● Low power consumption, Working current 300~330mA;
● Double antenna reception to make the signal more stable;
● RaceBand 40 channel, Auto-Searching;
● 3.0 Inch 480*320 dot high brightness LCD screen;
● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
● Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time-delay;
● Bilingual menu in support of Chinese and English;
● Support external video signal input;
● Support AV signal output (Connect external DVR)
Specification:
Model
|
|
Name
|
Mini FPV Goggles
|
LCD Screen
|
Screen size: 3.0 Inch
|
Resolution: 480*320
|
Display Ratio: 16:9
|
View Angle: 6 o'clock
|
Brightness: 350cd/m² with high brightness backlight LED
|
Video delay
|
Video time-delay less than 20ms
|
Lens
|
4X Fresnel Lens, 92% transparent rate no distort of light
|
Interface
|
Antenna
|
2 X RP-SMA male
|
USB
|
To charge the battery
|
AV Jack
|
External video signals input or internals AV signal output
|
Languages
|
English and Chinese
|
Power Supply
|
Power adapter: DC5V/1A (USB interface)
|
Battery:
3.7V/1200mAh,Each full charge revive around 2.5hr working time
|
Power Consumption:
*The device operating current of 300~330mA at 3.7~4.2V;
*Built-in battery maximum charge current of 500mA;
|
Wireless
|
Frequency Table(MHz)
|
|
CH1
|
CH2
|
CH3
|
CH4
|
CH5
|
CH6
|
CH7
|
CH8
|
Band A
|
5865
|
5845
|
5825
|
5805
|
5785
|
5765
|
5745
|
5725
|
Band B
|
5733
|
5752
|
5771
|
5790
|
5809
|
5828
|
5847
|
5866
|
Band E
|
5705
|
5685
|
5665
|
5645
|
5885
|
5905
|
5925
|
5945
|
Band F
|
5740
|
5760
|
5780
|
5800
|
5820
|
5840
|
5860
|
5880
|
Band R
|
5658
|
5695
|
5732
|
5769
|
5806
|
5843
|
5880
|
5917
|
Body
|
Dimension: 13.5cm * 13.2cm * 6.5cm
|
Weight: 180g(with headband, not included antennas)
|

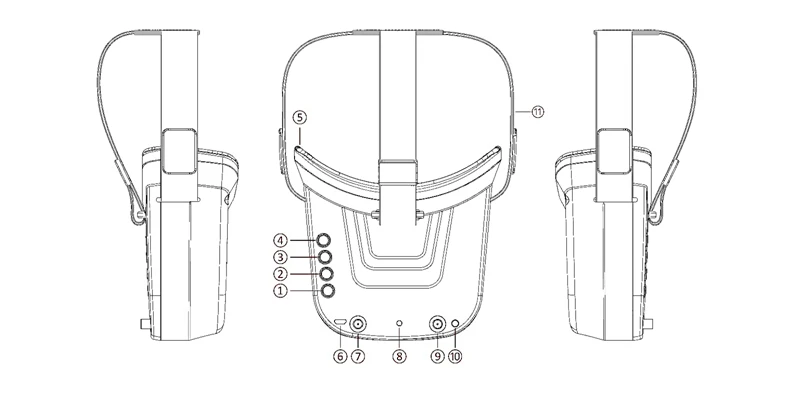

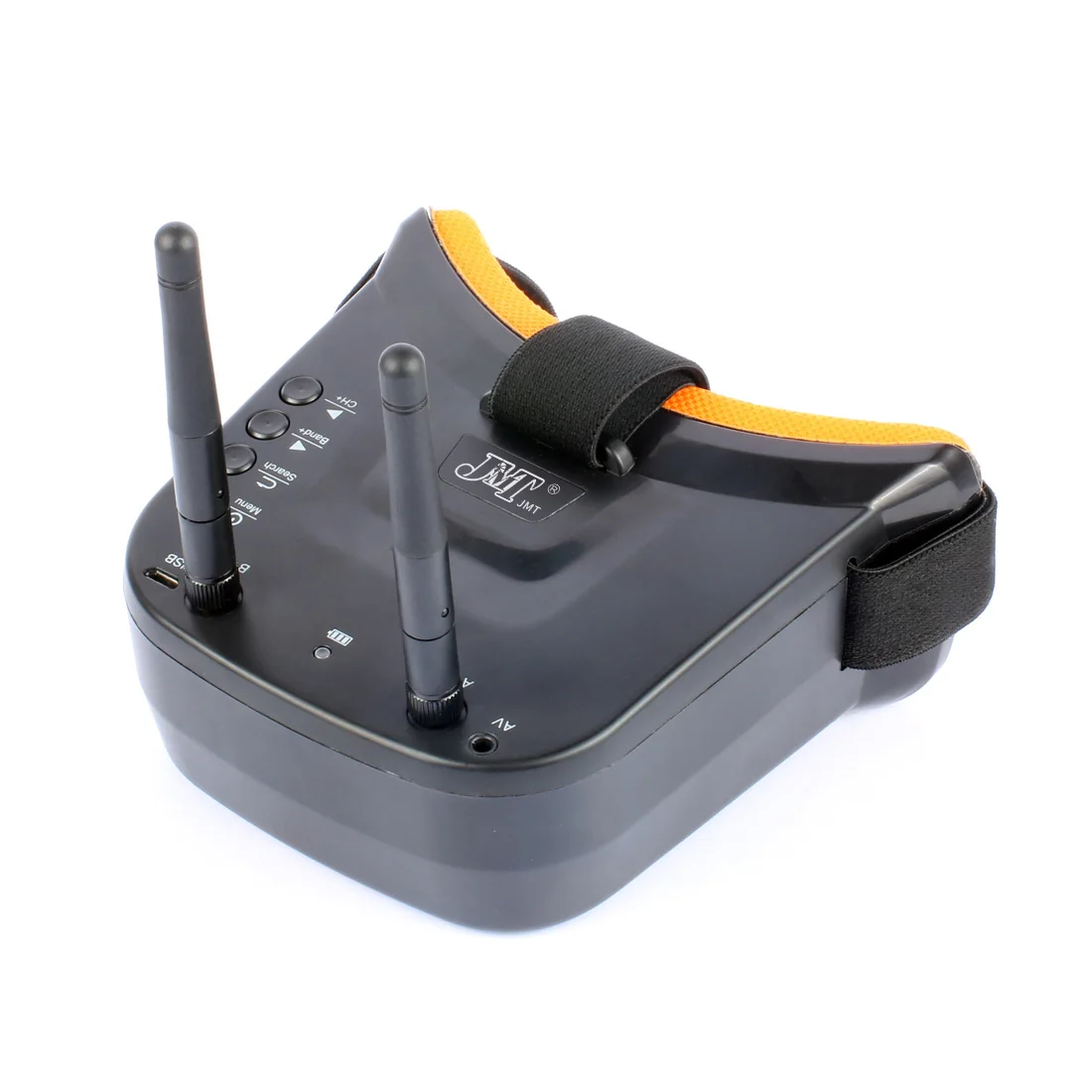

Controls Diagram:

AV port Instructions:
